6-1
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8

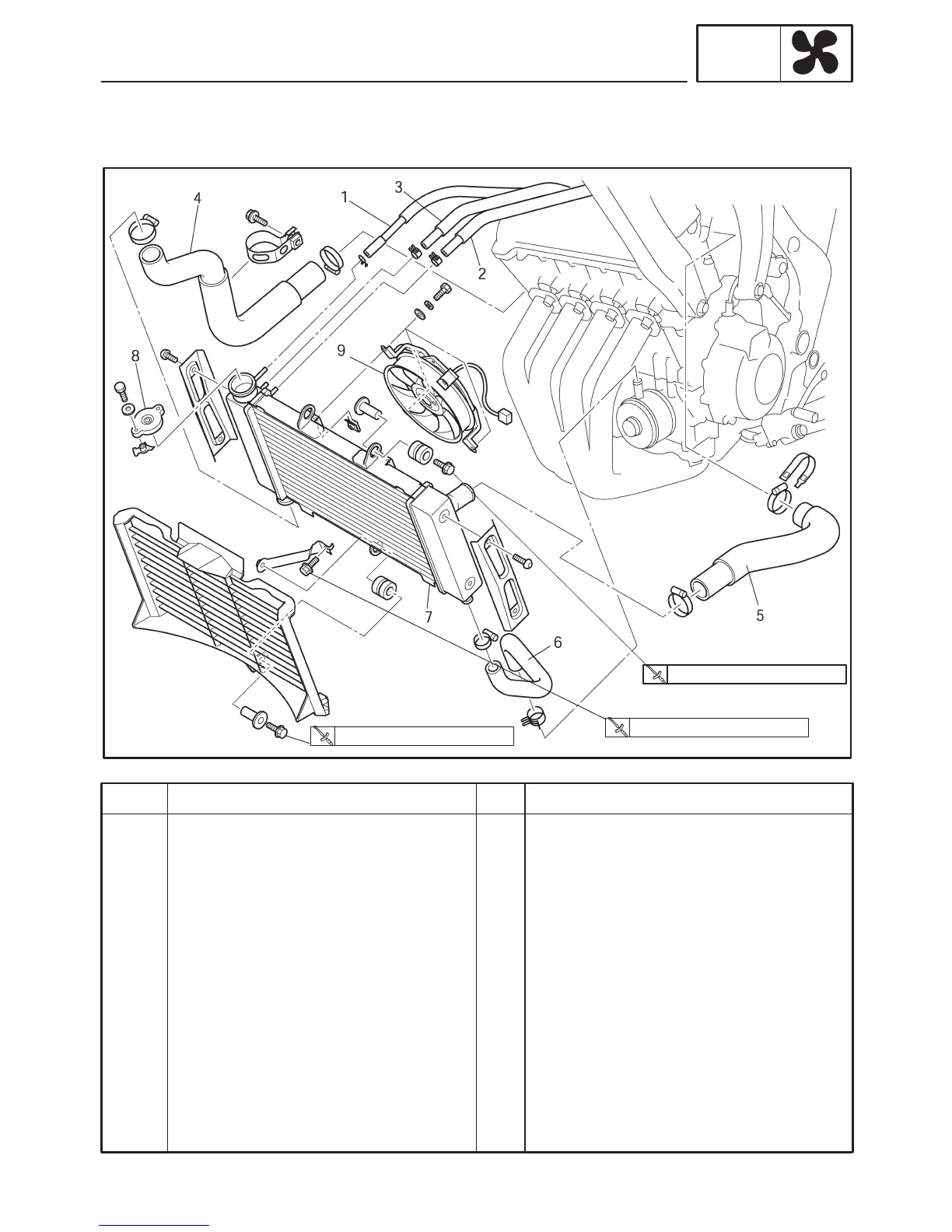

Removing the radiator
Seat
Front cowling inner panel (left and right)
Fuel tank
Air filter case
Coolant
Coolant reservoir hose
Throttle body hose
Water pump breather hose
Radiator outlet hose
Radiator inlet hose
Oil cooler outlet hose
Radiator
Radiator cap
1
1
1
1
1
1
1
1
Remove the parts in the order listed.
Refer to “SEAT” in chapter 3.
Refer to “COWLINGS”
Refer to “FUEL TANK” in chapter 3.
Refer to “AIR FILTER CASE” in chapter 3.
Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
Disconnect.
Disconnect.
Disconnect.
10 Nm (1.0 mSkg, 7.2 ftSlb)
7 Nm (0.7 mSkg, 5.1 ftSlb)
7 Nm (0.7 mSkg, 5.1 ftSlb)
RADIATOR
COOL
EAS00454
COOLING SYSTEM
RADIATOR
