STEERING HEAD
CHAS
WARNING
NOTE:
WARNING
EAS00677

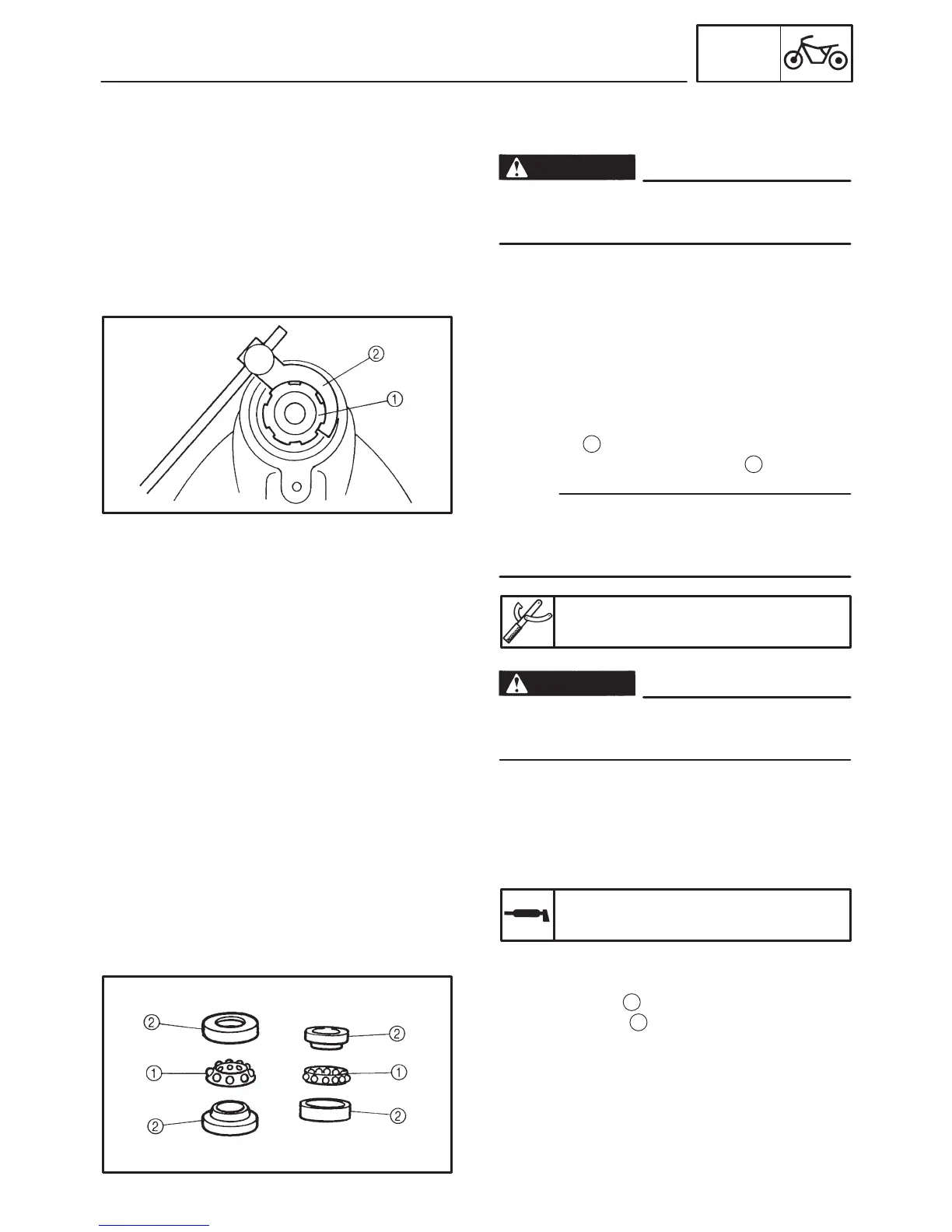

REMOVING THE UNDER BRACKET
1. Stand the motorcycle on a level surface.
Securely support the motorcycle so that
there is no danger of it falling over.
2. Remove:
S steering stem nut
S washer
S upper bracket
S lock washer
S rubber washer
S ring nut
1
(with the steering nut wrench
2
)
Hold the lower ring nut with the exhaust and
steering nut wrench, and then remove the upper
rung nut with the ring nut wrench.
Steering nut wrench
90890-01403, YU-33975
Securely support the under bracket so that
there is no danger of it falling over.
EAS00682
CHECKING THE STEERING HEAD
1. Wash:
S bearing balls
S bearing races
Recommended cleaning solvent
Kerosene
2. Check:
S bearing balls
1
S bearing races
2
Damage/pitting ! Replace.
