4-19
FRONT AND REAR BRAKES
CHAS
NOTE:
NOTE:
EAS00582

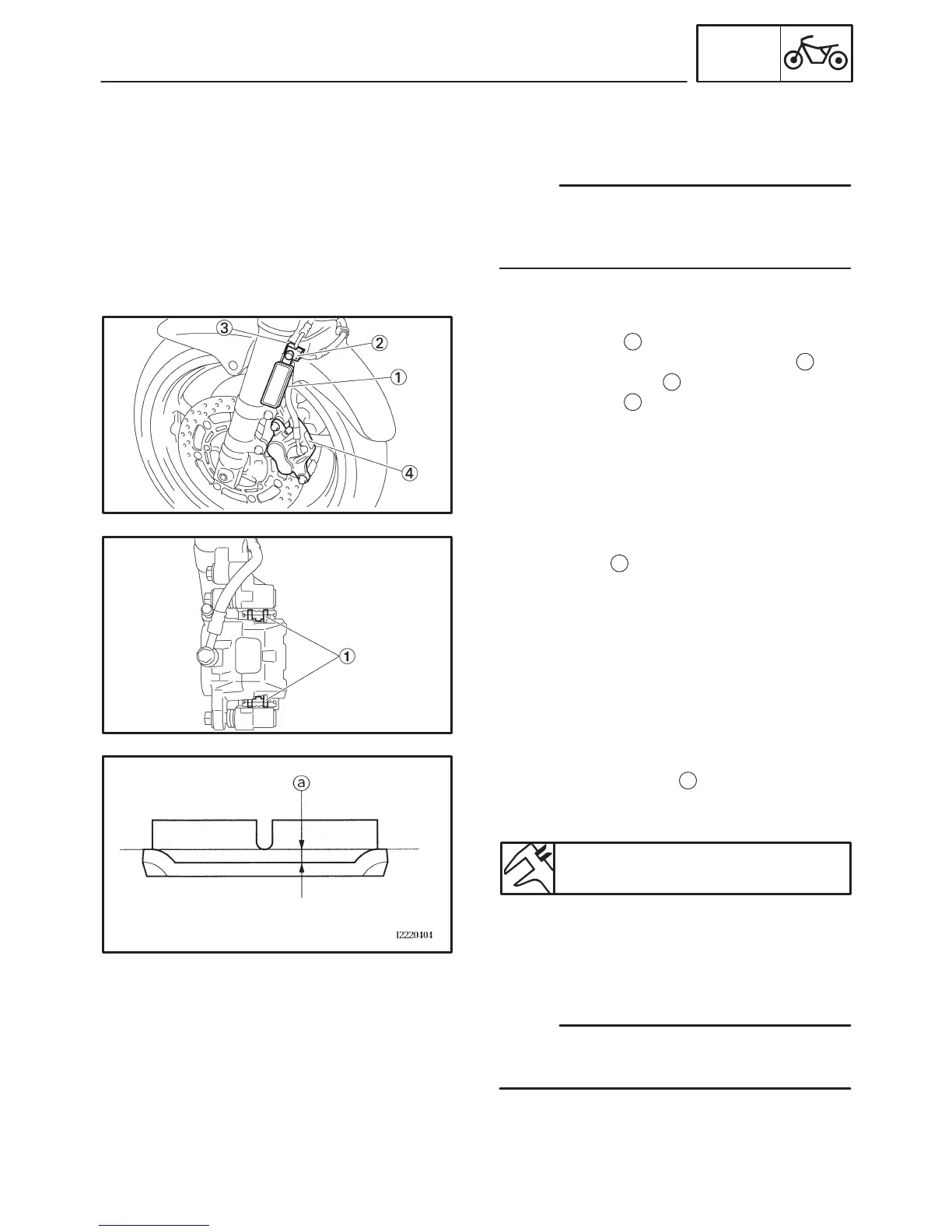

REPLACING THE FRONT BRAKE PADS
The following procedure applies to both brake
calipers.
When replacing the brake pads, it is not neces-
sary to disconnect the brake hose or disas-
semble the brake caliper.
1. Remove:
S side reflector
1
S side reflector bracket (left side only)
2
S brake hose holder
3
S brake caliper
4
2. Remove:
S brake pads
1
(along with the brake pad shims)
S brake pad shims
(onto the brake pads)
S brake pad spring
3. Measure:
S brake pad wear limit
a
Out of specification ! Replace the brake
pads as a set.
Brake pad wear limit
0.8 mm (0.03 in)
4. Install:
S brake pad spring
S brake pad shims
(onto the brake pads)
S brake pads
Always install new brake pads, brake pad
shims, and a brake pad spring as a set.
To Next Page
