FRONT WHEEL AND BRAKE DISCS
CHAS
WARNING
NOTE:
NOTE:
NOTE:
WARNING
EAS00521
REMOVING THE FRONT WHEEL
1. Stand the motorcycle on a level surface.
Securely support the motorcycle so that
there is no danger of it falling over.
Place the motorcycle on a suitable stand so that
the front wheel is elevated.
2. Remove:
S left brake caliper
S right brake caliper
Do not apply the brake lever when removing the
brake calipers.
3. Elevate:
S front wheel
Place the motorcycle on a suitable stand so that
the front wheel is elevated.
4. Loosen:
S front wheel axle pinch bolt
5. Remove:
S front wheel axle
S front wheel
EAS00525

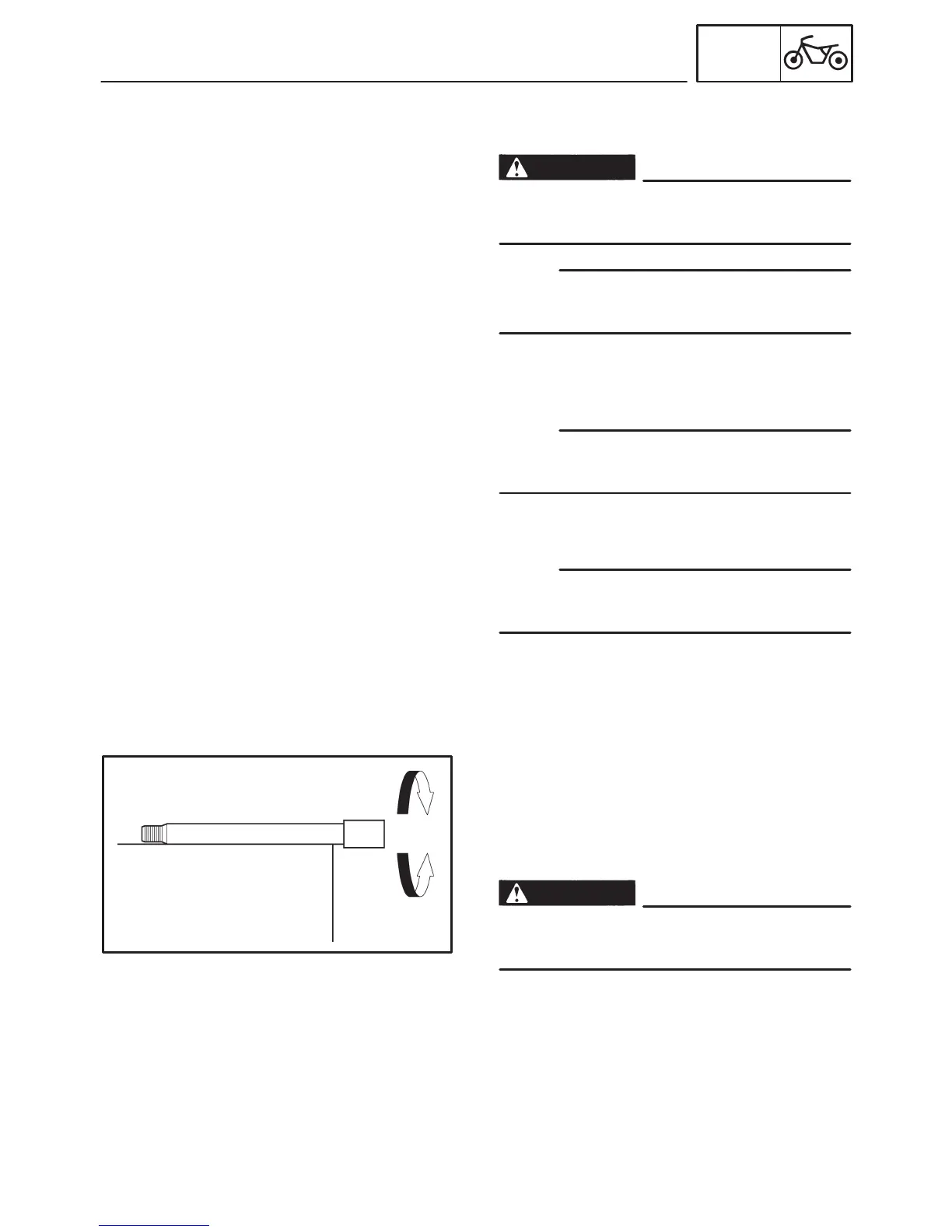

CHECKING THE FRONT WHEEL
1. Check:
S wheel axle
Roll the wheel axle on a flat surface.
Bends ! Replace.
Do not attempt to straighten a bent wheel
axle.
