FEATURES
GEN
INFO

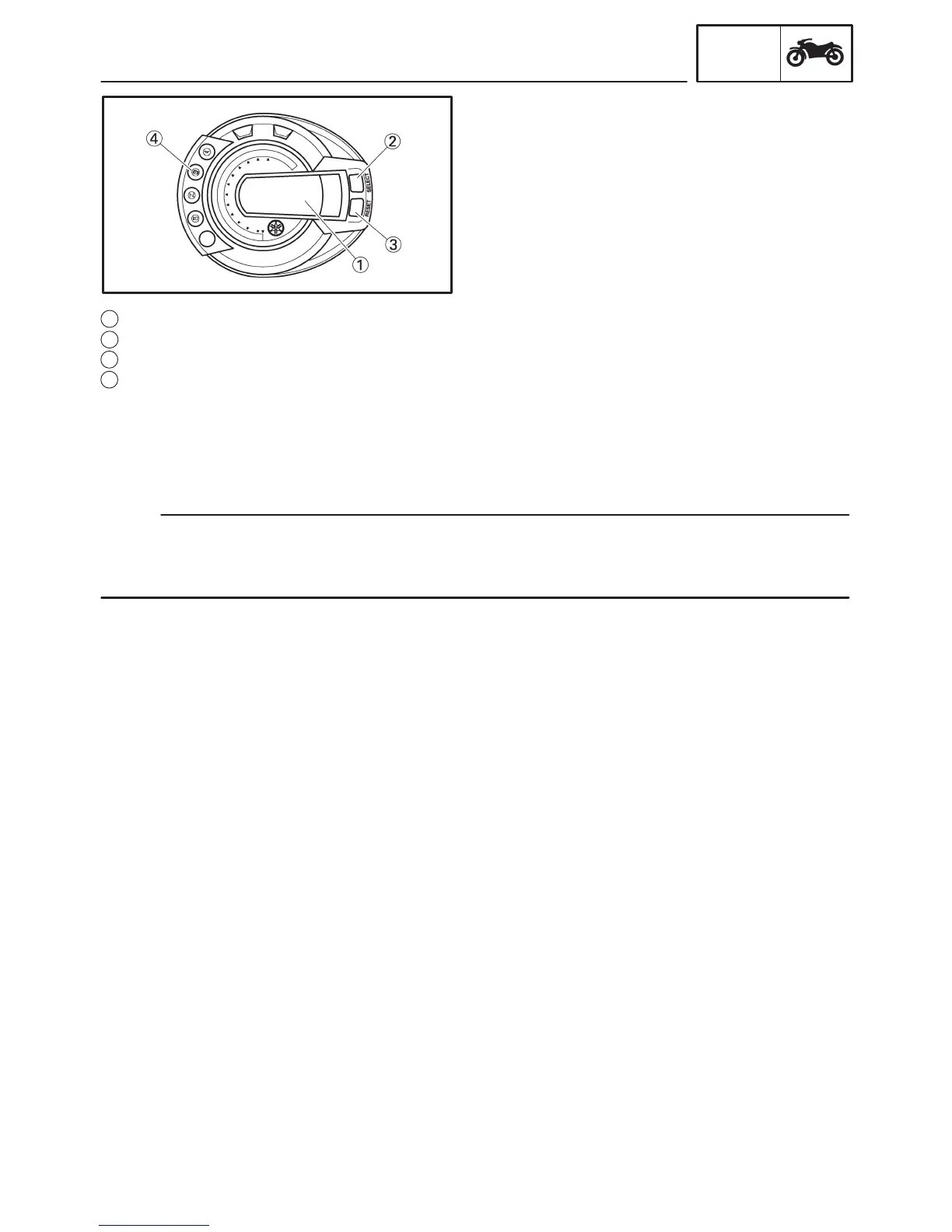

1 Multi-function display
2 “SELECT” button
3 “RESET” button
4 Engine trouble warning light
NOTE:
INSTRUMENT FUNCTION
Multi-function display
The multi-function display is equipped with the
following:
S a speedometer (which shows the riding
speed)
S an odometer (which shows the total distance
traveled)
S two tripmeters (which show the distance
traveled since they were last set to zero)
S a fuel reserve tripmeter (which shows the
distance traveled since the bottom segment
of the fuel meter started flashing)
S a tachometer (which shows the engine
speed)
S a fuel meter
S a water temperature
S a clock
S a intake air temperature
S a self-diagnosis device
S Be sure to turn the key to “ON” before using the “SELECT” and ”RESET” buttons.
S For the U.K. only: To switch the speedometer and odometer/tripmeter display between kilometers
and miles, press the “SELECT” button for at least two seconds.
Odometer, tripmeter and tachometer modes
Pushing the “SELECT” button switches the display between the odometer mode “ODO” and the trip-
meter modes “TRIP 1” and “TRIP 2” and the tachometer mode “E” is the following order:
ODO ! TRIP 1 ! TRIP 2 ! (TRIP F) ! E ! ODO
When approximately 3.6 L of fuel remain in the fuel tank, the bottom segment of the fuel meter will start
flashing, and the odometer display will automatically change to the fuel reserve tripmeter mode “TRIP
F” and start counting the distance traveled from that point. In that case, pushing the “SELECT” button
switches the display between the various tripmeter and odometer modes in the following order:
TRIP-F ! E ! ODO ! TRIP 1 ! TRIP 2 ! TRIP F
To reset a tripmeter, select it by pushing the “SELECT” button, and then push the “RESET” button for at
least one second. If you do not reset the fuel reserve tripmeter manually, it will reset itself automatically
and the display will return to the prior mode after refueling and traveling 5 km (3.1 mi).
Tachometer mode
Displays the digital indication of the engine speed on the odometer section.
Air intake temperature indicator.
When “ODO” is displayed, pressing the “RESET” for a long time allows the indicator to switch displays
between Clock and Air intake temperature. (It activates the clock indication when the main switch is
turned OFF.)
In the Co adjustment mode, the indication automatically changes from clock (Air intake temperature) to
the engine speed.
