HANDLEBAR
CHAS
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14

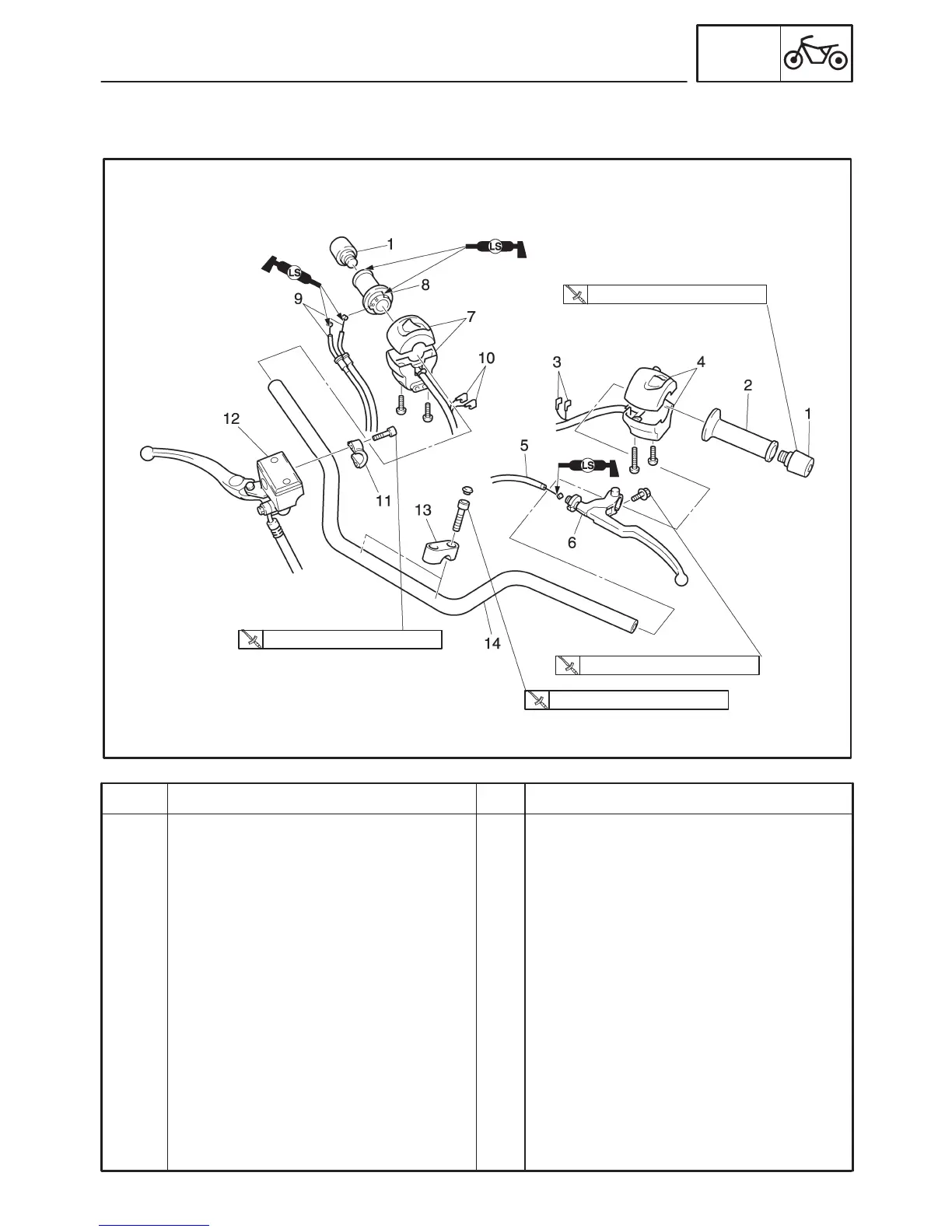

Removing the handlebar
Grip end
Handlebar grip (left)
Clutch switch connector
Left handlebar switch
Clutch cable
Clutch lever
Right handlebar switch
Throttle grip
Throttle cable
Front brake light switch connector
Front brake master cylinder holder
Front brake master cylinder
Upper handlebar holder
Handlebar
2
1
1
1
1
1
1
1
2
1
1
1
2
1
Remove the parts in the order listed.
Disconnect.
Disconnect.
For installation, reverse the removal
procedure.
23 Nm (2.3 mSkg, 17 ftSlb)
10 Nm (1.0 mSkg, 7.2 ftSlb)
26 Nm (2.6 mSkg, 19 ftSlb)
11 Nm (1.1 mSkg, 8.0 ftSlb)
