Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
Removing the connecting rods and
pistons
Lower crankcase
Connecting rod cap
Big end lower bearing
Big end upper bearing
Piston pin clip
Piston pin
Piston
Connecting rod
Top ring
2nd ring
Oil ring
4
4
4
8
4
4
4
4
4
4
Remove the parts in the order listed.
Refer to “CRANKCASE”.
For installation, reverse the removal
procedure.
15 Nm (1.5 mSkg, 11 ftSlb) +120_
15 Nm (1.5 mSkg, 11 ftSlb) +150_

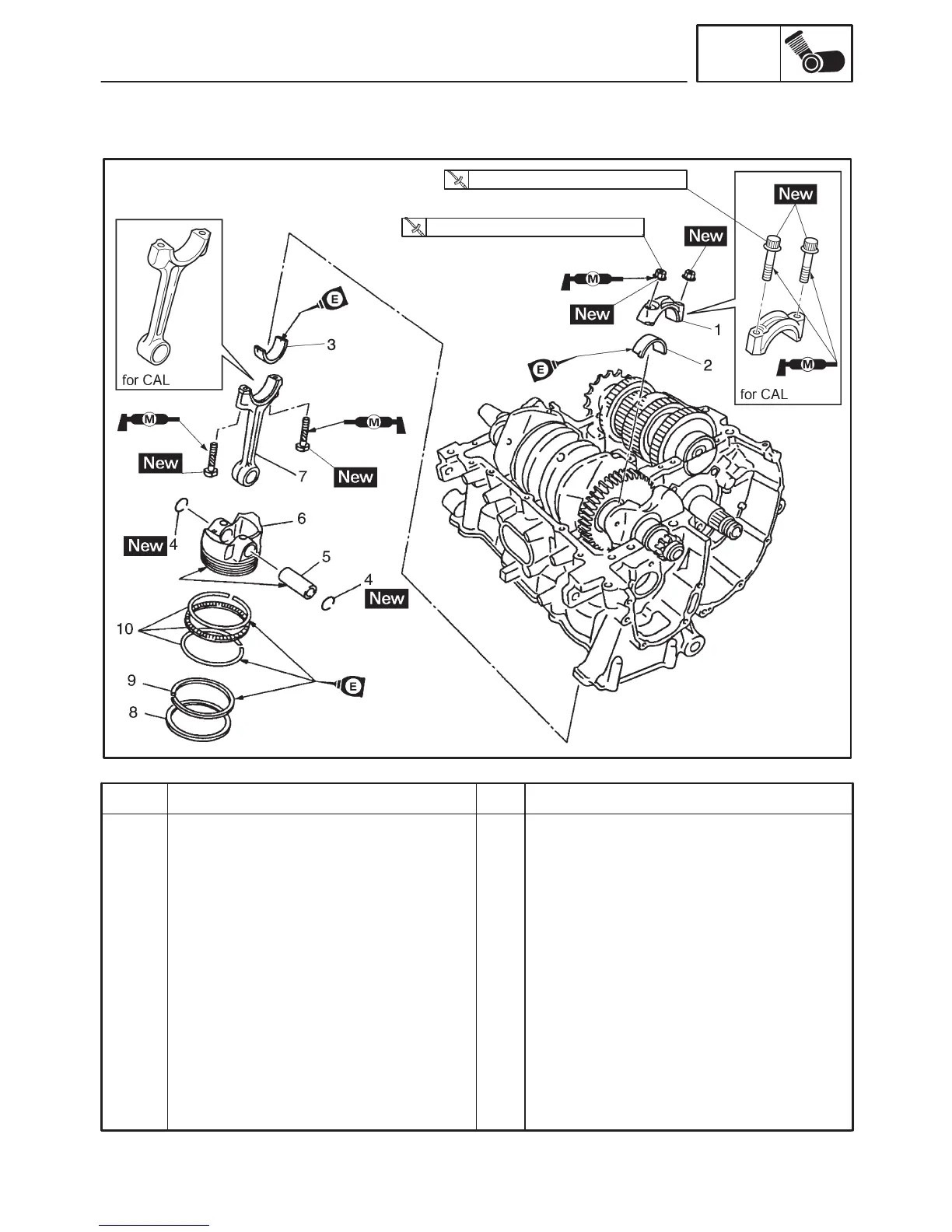

CONNECTING RODS AND PISTONS
ENG
EAS00252
CONNECTING RODS AND PISTONS
