Yamaha FZ6-SS User Manual

5-21
CYLINDER HEAD
ENG
NOTE:
19 Nm (1.9 mSkg, 14 ftSlb)
50 Nm (5.0 mSkg, 36 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
NOTE:
EAS00233

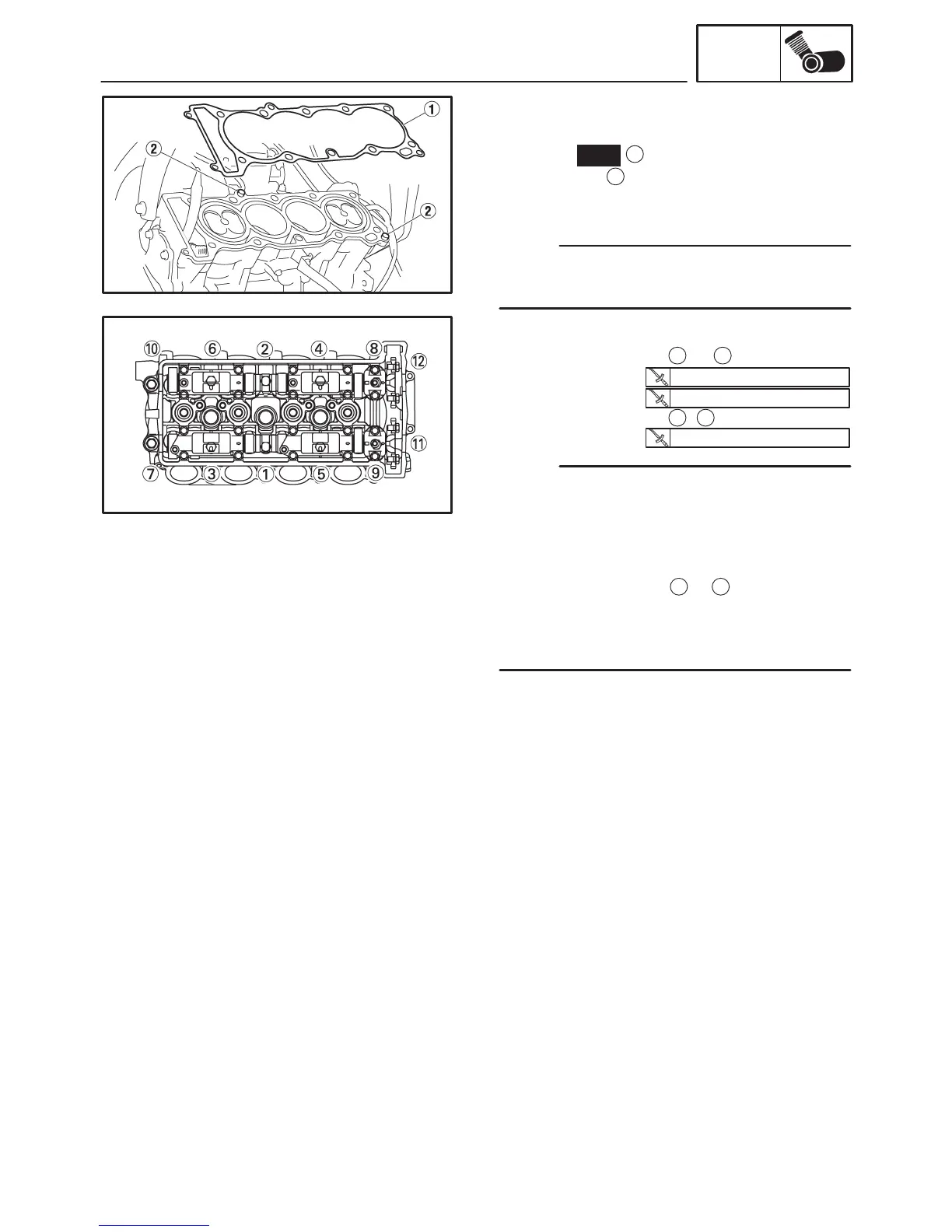

INSTALLING THE CYLINDER HEAD
1. Install:
S gasket
New
1
S dowel pins
2
2. Install:
S cylinder head
Pass the timing chain through the timing chain
cavity.
3. Tighten:
S cylinder head bolts
1
X
10
1st
2nd
S cylinder head bolts
11
,
12
S Lubricate the cylinder head bolts with engine
oil.
S Tighten the cylinder head bolts in the proper
tightening sequence as shown and torque
them in two stages.
S First, tighten the bolts
1
X
10
to approximate-
ly 19 Nm (1.9 mSkg, 14 ftSlb) with a torque
wrench and then tighten the 50 Nm (5.0 mSkg,
36 ftSlb).
4. Install:
S exhaust camshaft
S intake camshaft
Refer to “INSTALLING THE CAMSHAFTS”.
