AIR FILTER CASE
CHK
ADJ
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
1
2
1
4
1
1
1
1
1
1
1
Remove the parts in the order listed.
Refer to “SEAT”.
Refer to “COWLINGS”.
Refer to “FUEL TANK”.
Disconnect.
Disconnect.
Disconnect.
Loosen.
Disconnect.
Disconnect.
Disconnect.
For installation, reverse the removal
procedure.
7 Nm (0.7 mSkg, 5.1 ftSlb)

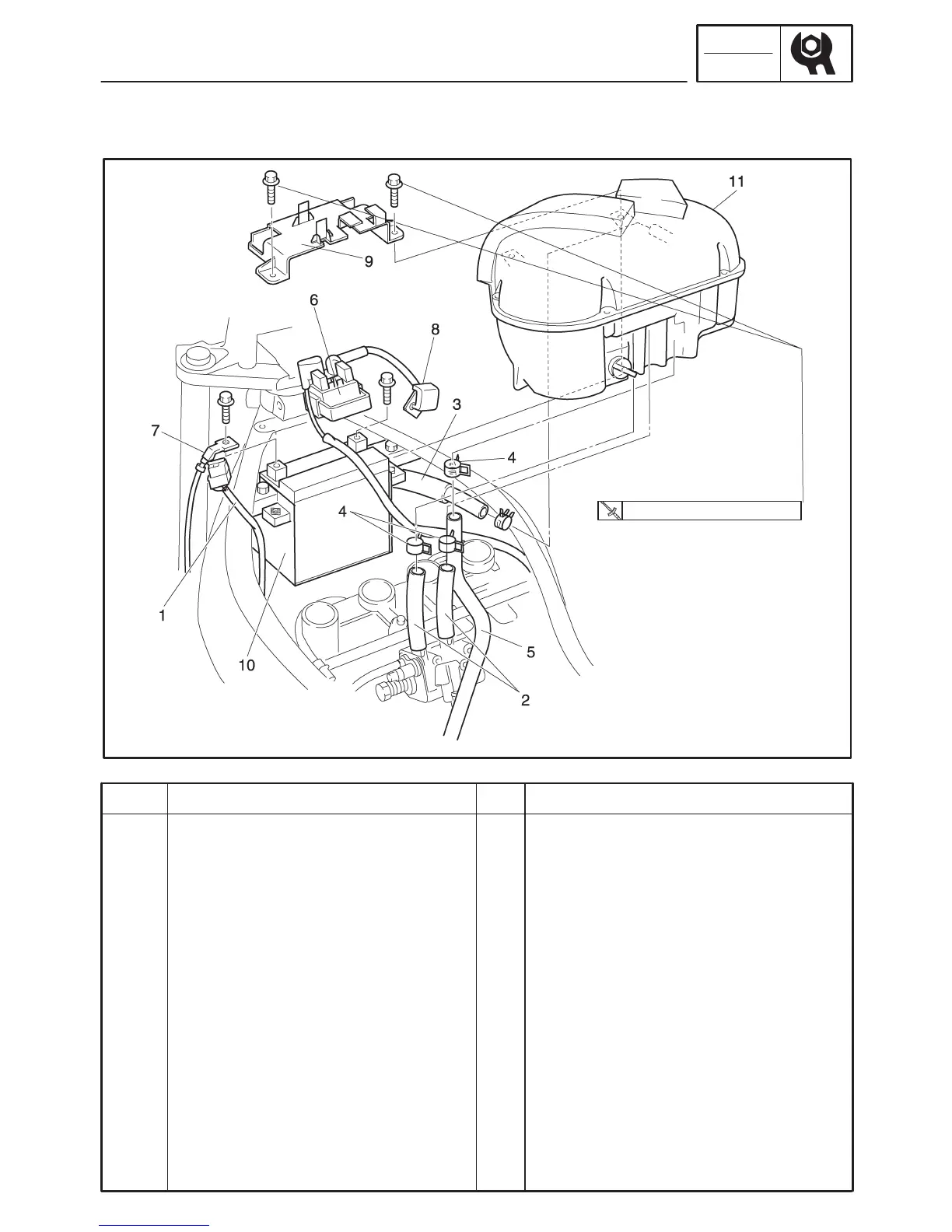

Removing the air filter case
Seat
Front cowling inner panel (left and
right)
Fuel tank
Intake temperature sensor coupler
Throttle body hose
Air induction system hose
Clamp
Crankcase breather hose
Starter relay
Battery negative lead
Battery positive lead
Battery cover
Battery
Air filter case
EAS00043
AIR FILTER CASE
