4-39
FRONT AND REAR BRAKES
CHAS
NOTE:
NOTE:
WARNING
EAS00627

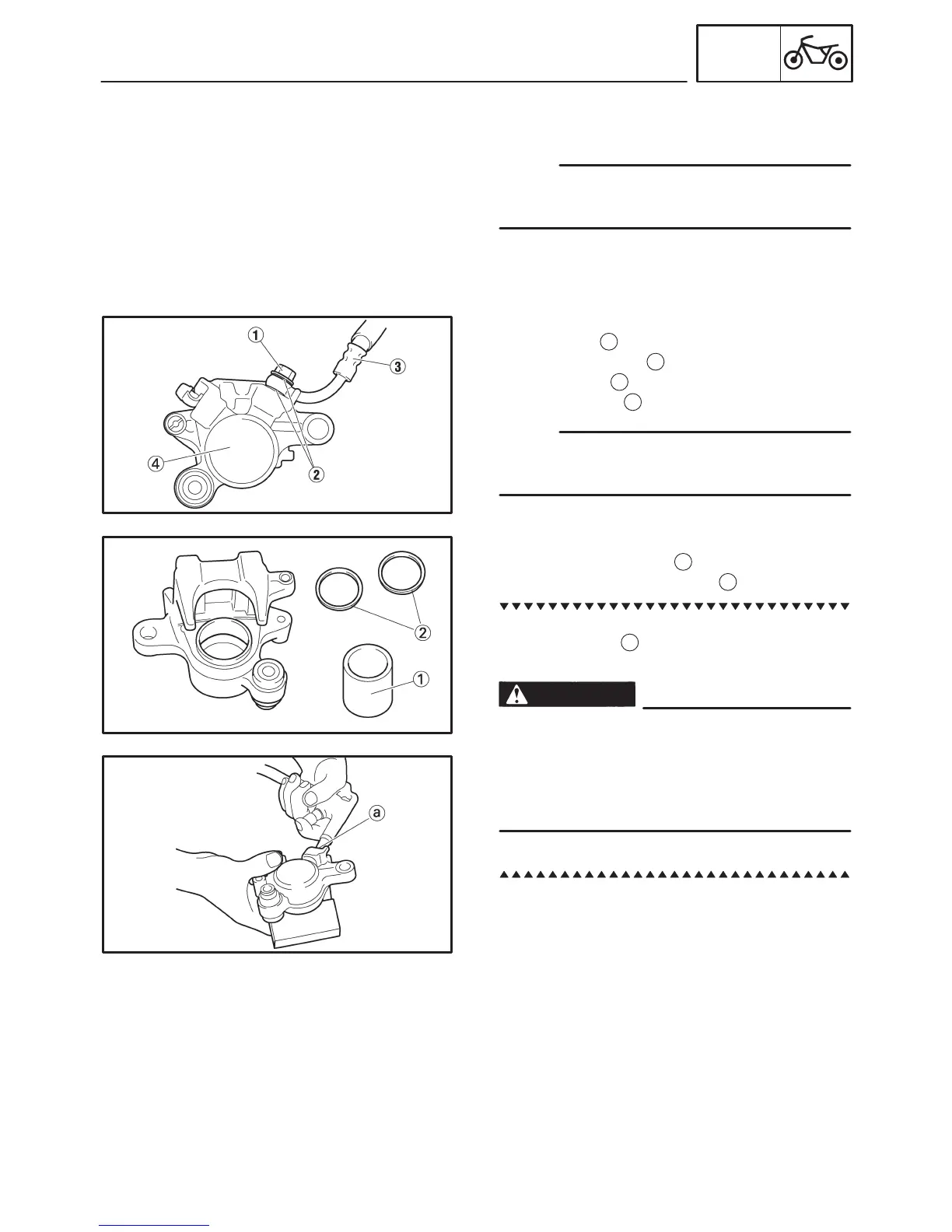

DISASSEMBLING THE REAR BRAKE
CALIPER
Before disassembling the brake caliper, drain
the brake fluid from the entire brake system.
1. Remove:
S union bolt
1
S copper washers
2
S brake hose
3
S brake caliper
4
Put the end of the brake hose into a container
and pump out the brake fluid carefully.
2. Remove:
S brake caliper piston
1
S brake caliper piston seals
2
a. Blow compressed air into the brake hose
joint opening
a
to force out the pistons from
the brake caliper.
S Cover the brake caliper piston with a rag.
Be careful not to get injured when the pis-
tons are expelled from the brake caliper.
S Never try to pry out the brake caliper pis-
tons.
b. Remove the brake caliper piston seals.
To Next Page
