4-68
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7

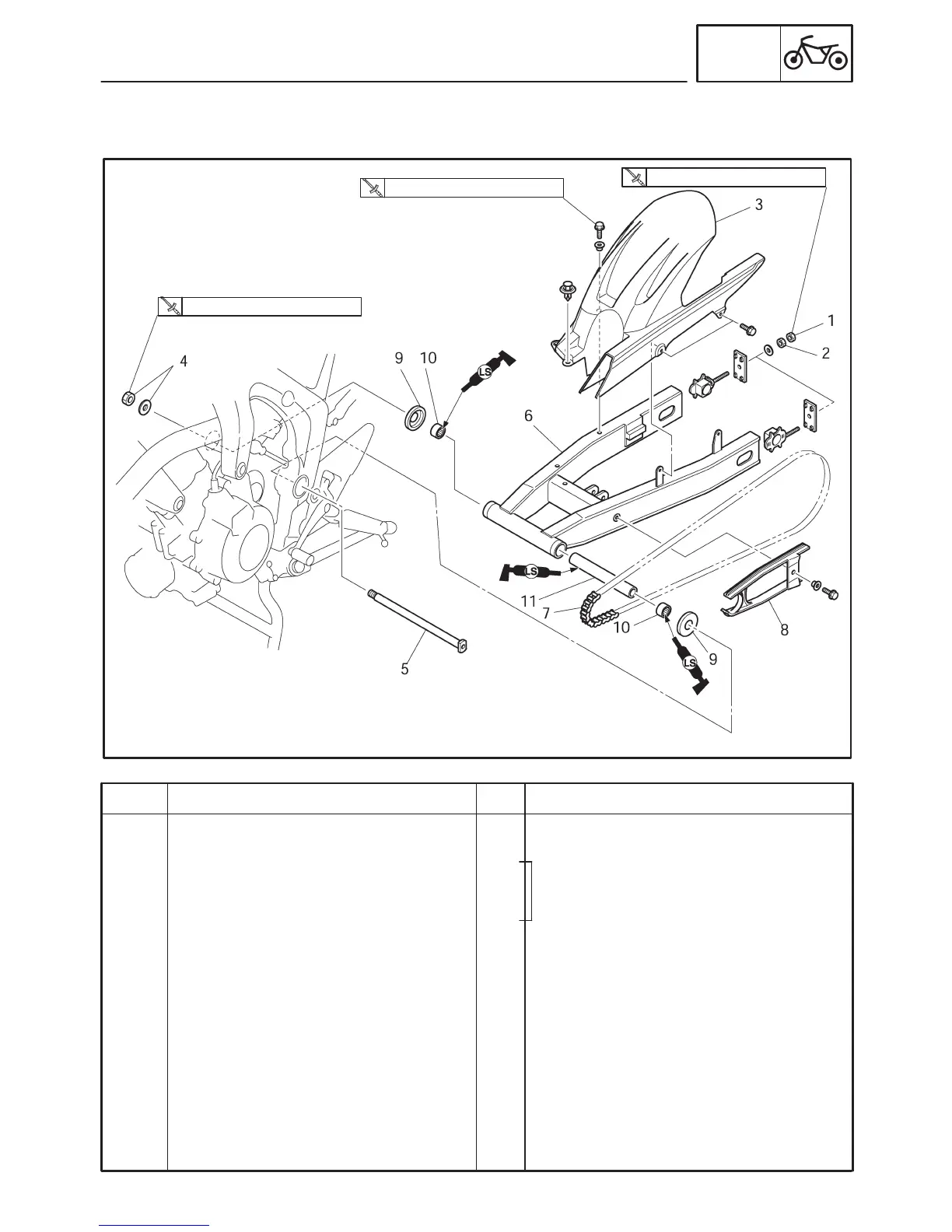

Removing the swingarm and drive
chain
Muffler assembly
Catalyst assembly
Exhaust pipe assembly
Rear wheel
Rear shock absorber assembly
Drive sprocket cover
Lock nut
Adjusting nut
Rear fender
Pivot shaft nut/washer
Pivot shaft
Swingarm
Drive chain
2
2
1
1/1
1
1
1
Remove the parts in the order listed.
Refer to “REAR WHEEL AND BRAKE
DISC”.
Refer to “REAR SHOCK ABSORBER
ASSEMBLY”.
Refer to “ENGINE” in chapter 5.
Loosen.
Loosen.
Refer to “EXHAUST PIPE” in chapter 5.
120 Nm (12 mSkg, 87 ftSlb)
7 Nm (0.7 mSkg, 5.1 ftSlb)
16 Nm (1.6 mSkg, 12 ftSlb)
SWINGARM AND DRIVE CHAIN
CHAS
SWINGARM AND DRIVE CHAIN
To Next Page
