4-64

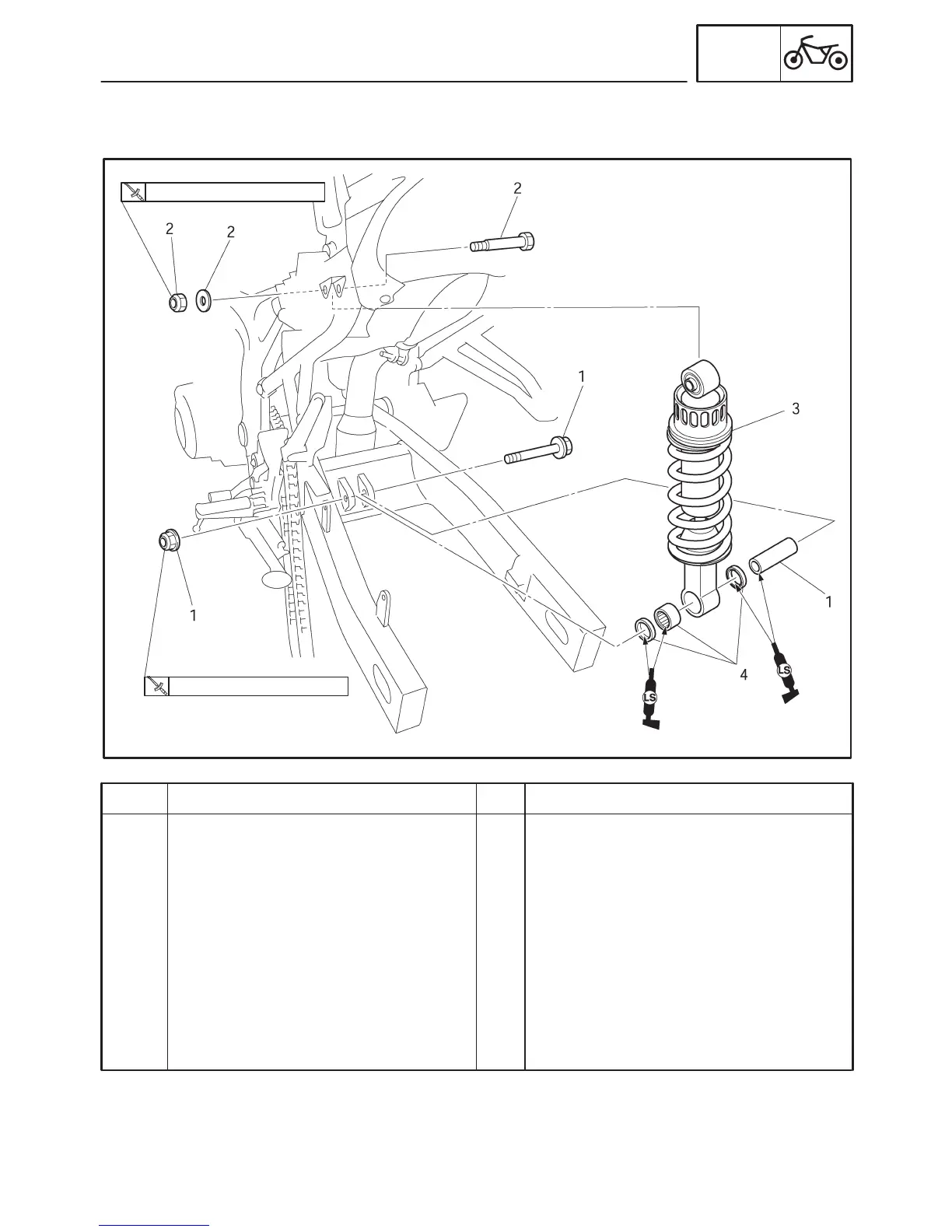

REAR SHOCK ABSORBER ASSEMBLY
CHAS
Order Job/Part Q’ty Remarks
1
2
3
4
Removing the rear shock absorber
assembly
Rear wheel
Self-locking nut/collar/bolt
(Swingarm-rear shock absorber)
Self-locking nut/washer/bolt
(Frame-rear shock absorber)
Rear shock absorber
Oil seal/bearing
1/1/1
1/1/1
1
2/1
Remove the parts in the order listed.
Refer to “REAR WHEEL AND BRAKE
DISC”.
For installation, reverse the removal
procedure.
40 Nm (4.0 mSkg, 29 ftSlb)
40 Nm (4.0 mSkg, 29 ftSlb)
EAS00685
REAR SHOCK ABSORBER ASSEMBLY
To Next Page
