SHIFT SHAFT
ENG
22 Nm (2.2 mSkg, 16 ftSlb)
NOTE:
NOTE:
EAS00328

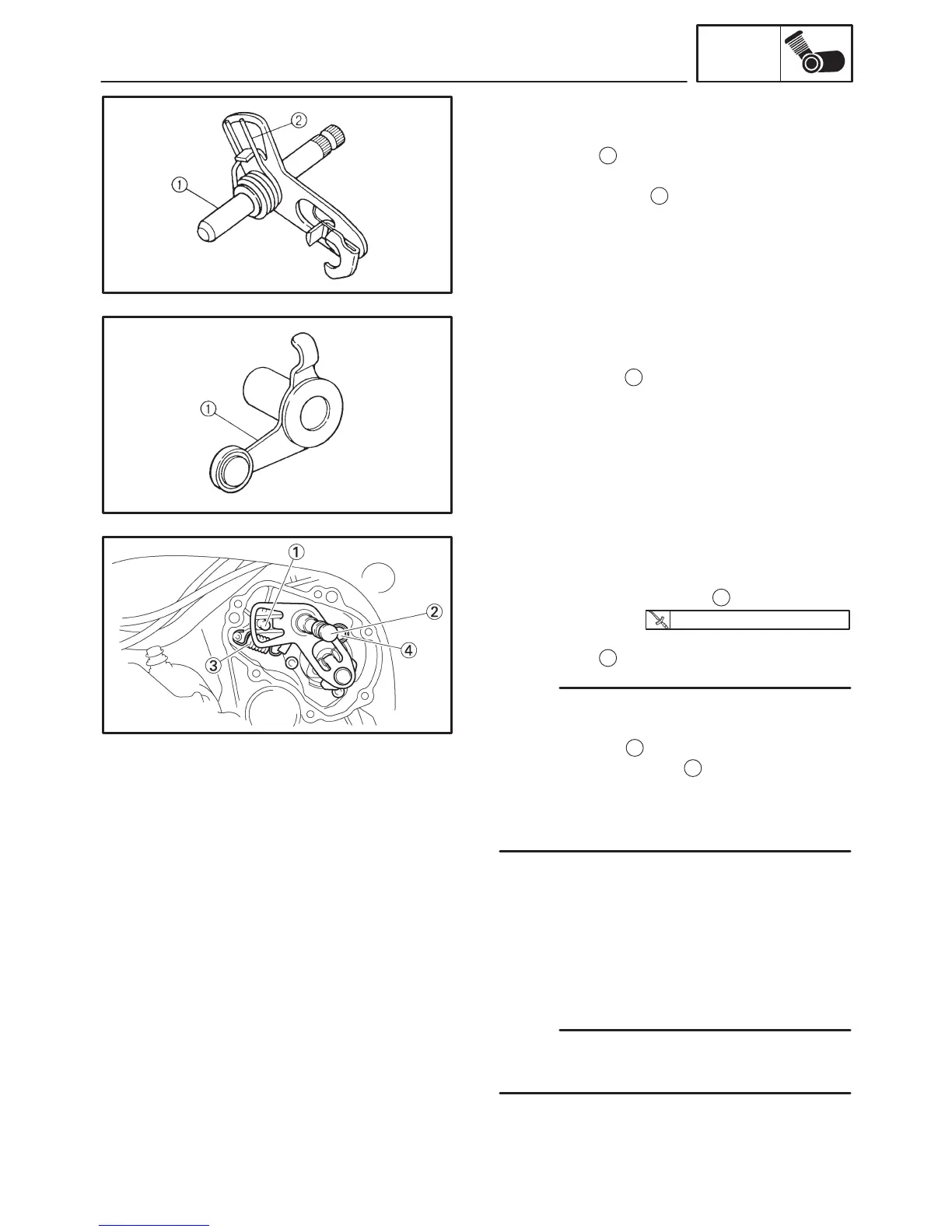

CHECKING THE SHIFT SHAFT
1. Check:
S shift shaft
1
Bends/damage/wear ! Replace.
S shift shaft spring
2
Damage/wear ! Replace.
EAS00330
CHECKING THE STOPPER LEVER
1. Check:
S stopper lever
1
Bends/damage ! Replace.
Roller turns roughly ! Replace the stopper
lever.
EAS00332
INSTALLING THE SHIFT SHAFT
1. Install:
S shift shaft spring stopper
1
S washers
S shift shaft
2
S Apply LOCTITE

to the threads of the shift
shaft spring stopper.
S Hook the ends
3
of the stopper lever spring
onto the stopper lever
4
and the crankcase
boss.
S Mesh the stopper lever with the shift drum seg-
ment assembly.
2. Install:
S shift shaft cover
Lubricate the oil seal lips with lithium-soap-
based grease.
