WATER PUMP
COOL
NOTE:
NOTE:
NOTE:
NOTE:
EAS00471

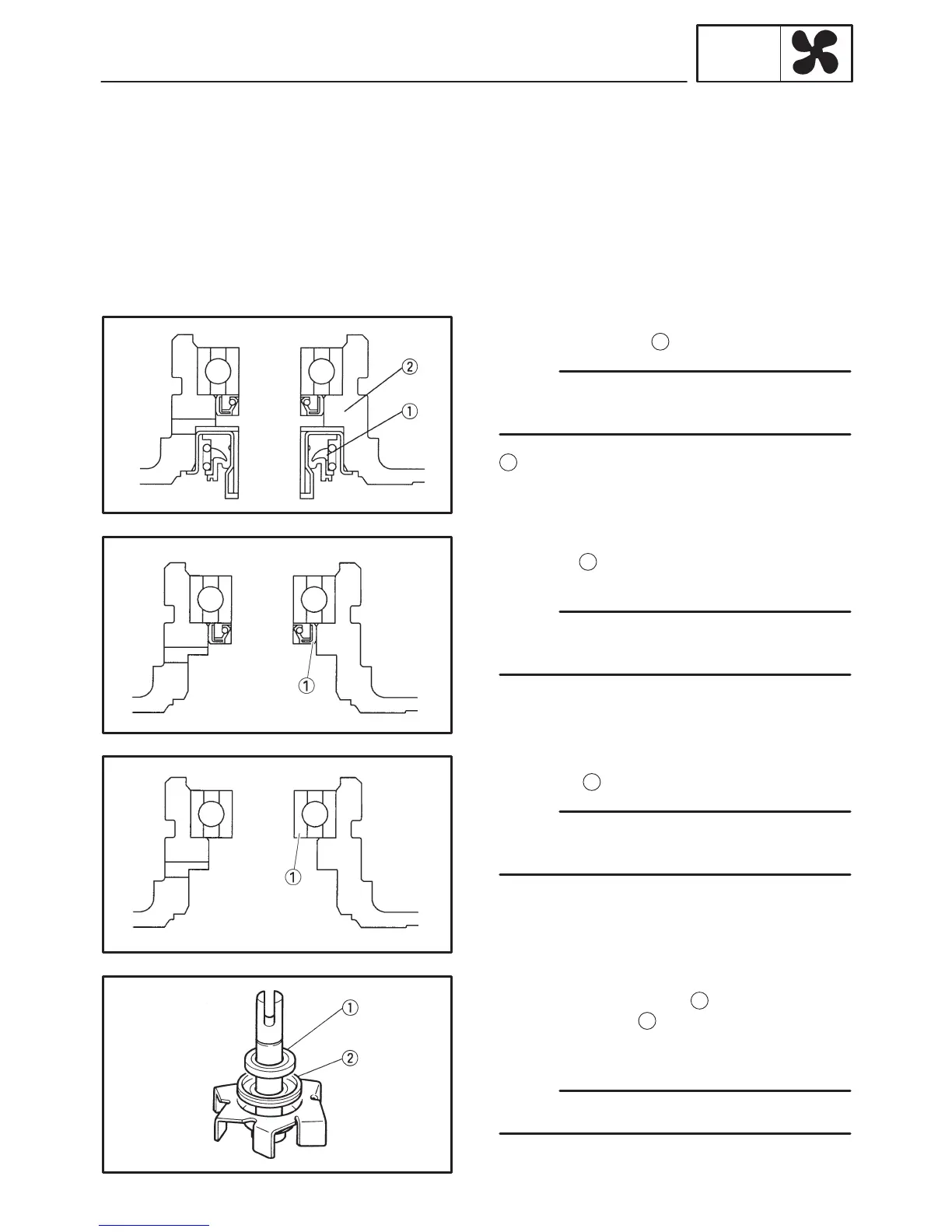

DISASSEMBLING THE WATER PUMP
1. Remove:
S water pump cover
S O-ring
S circlip
S impeller shaft
2. Remove:
S water pump seal
1
Remove the water pump seal from the outside
of the water pump housing.
2
Water pump housing
3. Remove:
S oil seal
1
(with a thin, flat-head screwdriver)
Remove the oil seal from the outside of the wa-
ter pump housing.
4. Remove:
S bearing
1
Remove the bearing from inside of the water
pump housing.
5. Remove:
S rubber damper holder
1
S rubber damper
2
(from the impeller, with a thin, flat-head
screwdriver)
Do not scratch the impeller shaft.
