5-11
CAMSHAFTS
ENG
NOTE:
CAUTION:
EAS00198

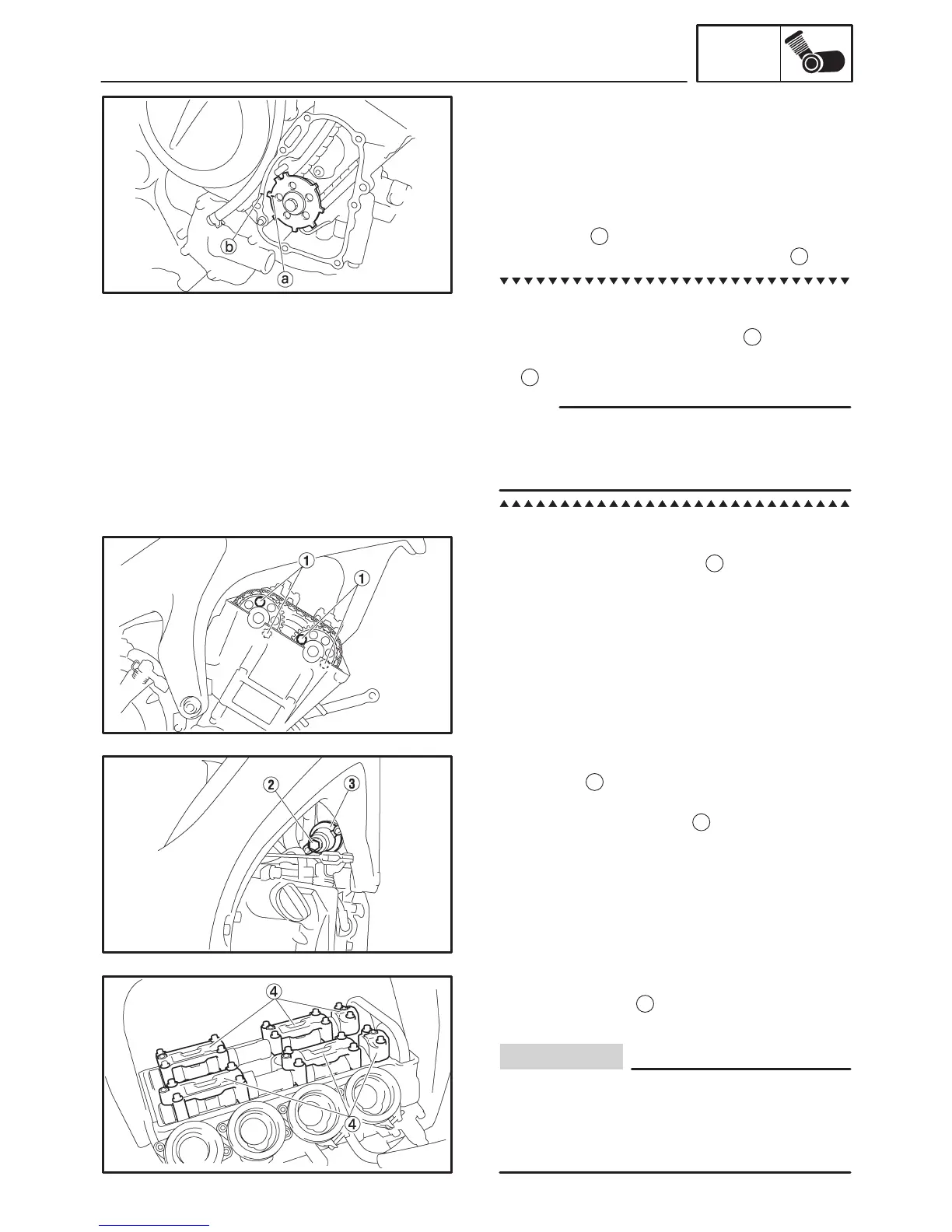

REMOVING THE CAMSHAFTS
1. Remove:
S pickup rotor cover
Refer to “CRANKSHAFT POSITION SEN-
SOR AND PICKUP ROTOR”.
2. Align:
S “T” mark
a
on the pickup rotor
(with the crankcase mating surface
b
)
a. Turn the crankshaft clockwise.
b. When piston #1 is at TDC on the compres-
sion stroke, align the “T” mark
a
on the pick-
up rotor with the crankcase mating surface
b
.
TDC on the compression stroke can be found
when the camshaft lobes are turned away from
each other.
3. Loosen:
S camshaft sprocket bolts
1
4. Loosen:
S cap bolt
2
5. Remove:
S timing chain tensioner
3
S gasket
6. Remove:
S timing chain guide (exhaust side)
S camshaft caps
4
S dowel pins
To prevent damage to the cylinder head,
camshafts or camshaft caps, loosen the
camshaft cap bolts in stages and in a criss-
cross pattern, working from the outside in.
To Next Page
