4-9
REAR WHEEL AND BRAKE DISC
CHAS
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10

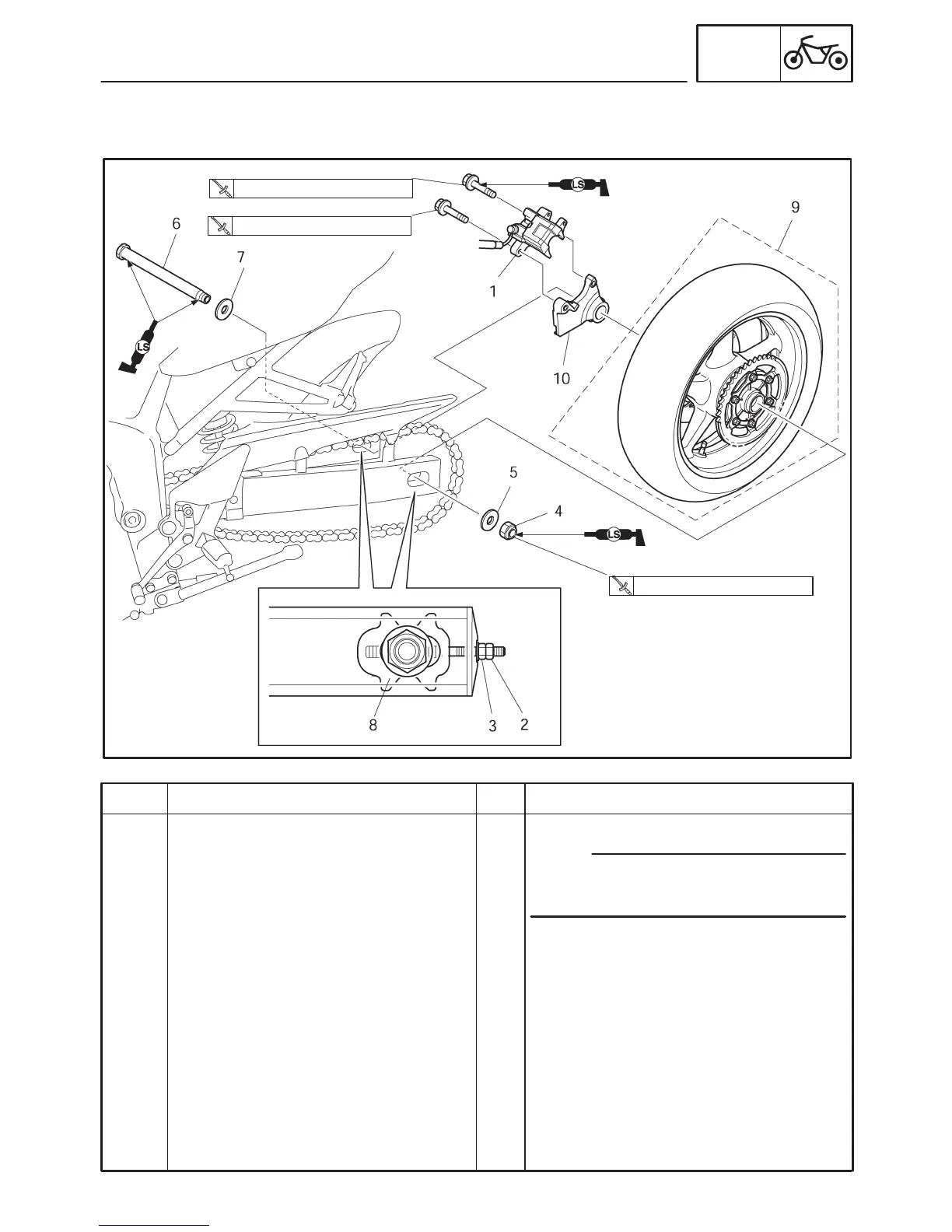

Removing the rear wheel
Brake caliper
Lock nut (left and right)
Adjusting nut (left and right)
Wheel axle nut
Washer
Rear wheel axle
Washer
Drive chain puller (left and right)
Rear wheel
Rear brake caliper bracket
1
2
2
1
1
1
1
2
1
1
Remove the parts in the order listed.
Place the motorcycle on a suitable stand
so that the rear wheel is elevated.
Loosen.
Loosen.
For installation, reverse the removal
procedure.
NOTE:
27 Nm (2.7 mSkg, 20 ftSlb)
22 Nm (2.2 mSkg, 16 ftSlb)
120 Nm (12 mSkg, 87 ftSlb)
EAS00551
REAR WHEEL AND BRAKE DISC
REAR WHEEL
To Next Page
