4-25

FRONT AND REAR BRAKES

CHAS

Order Job/Part Q’ty Remarks

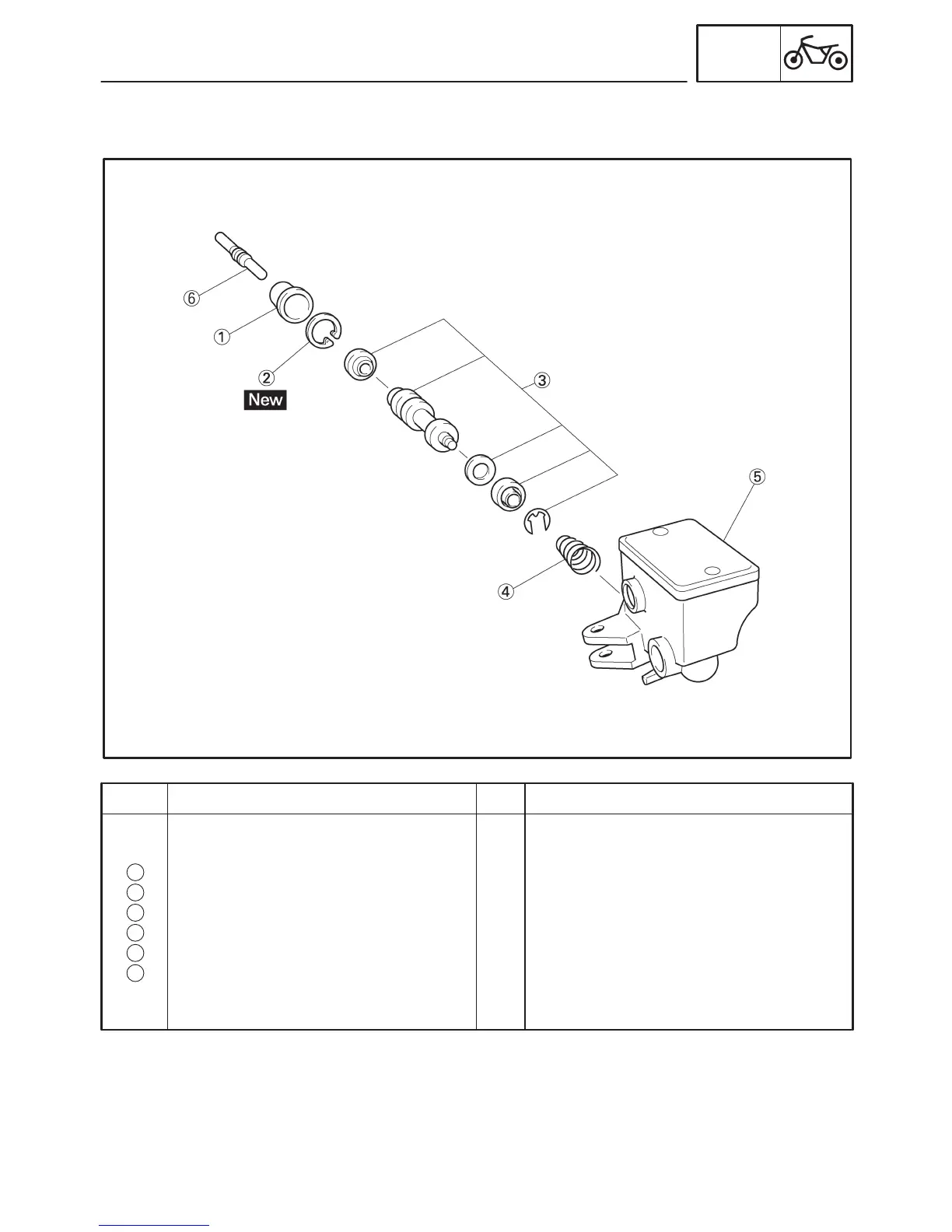

Disassembling the front brake

master cylinder

Dust boot

Circlip

Master cylinder kit

Spring

Master cylinder

Push rod

Disassemble the parts in the order listed.

For assembly, reverse the disassembly

procedure.

EAS00585
