3-65
CHECKING THE FUSES
CHK
ADJ
CAUTION:
NOTE:
EAS00181
CHECKING THE FUSES
The following procedure applies to all of the
fuses.
To avoid a short circuit, always set the main
switch to “OFF” when checking or replacing
a fuse.
1. Remove:
S right side cover
Refer to “COWLINGS”.

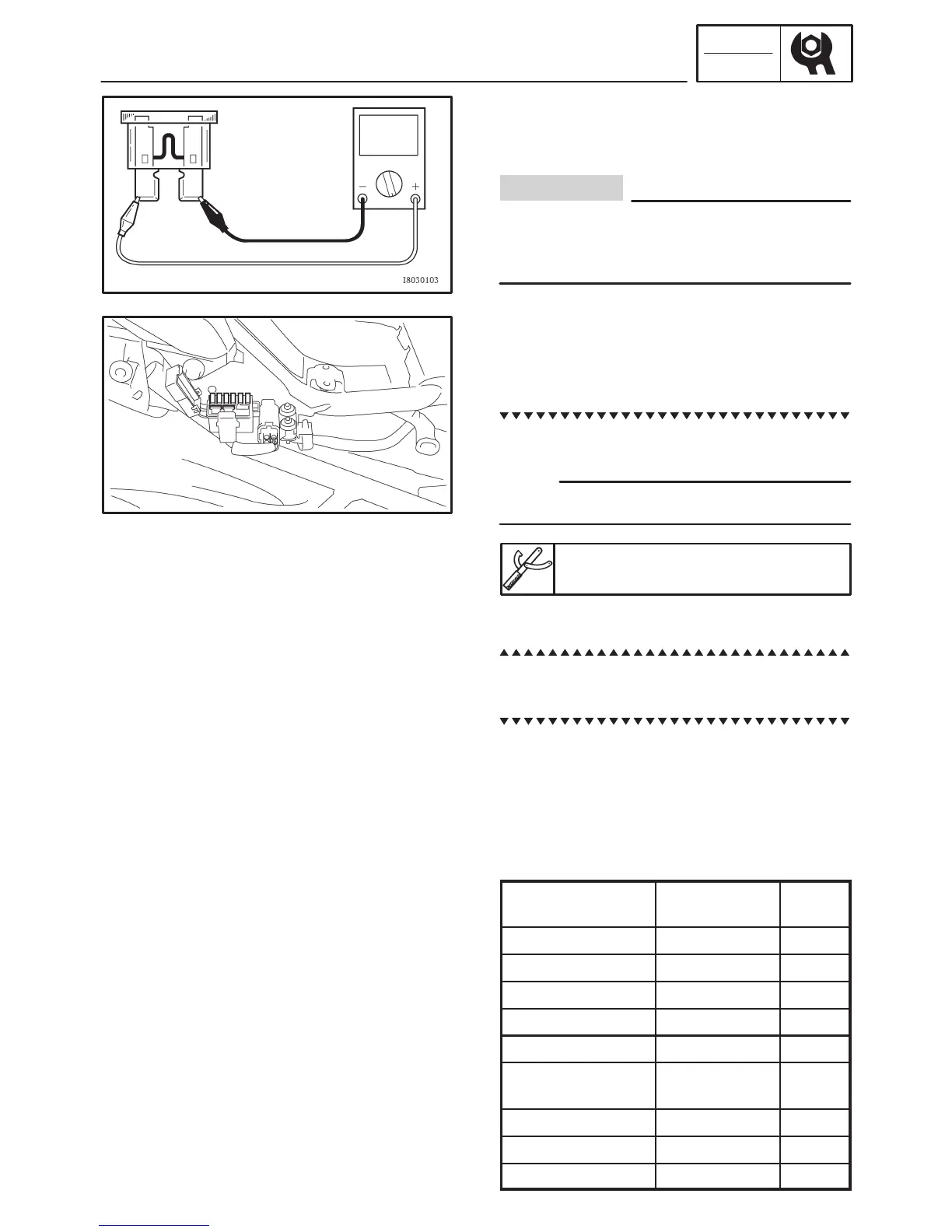

2. Check:
fuse
a. Connect the pocket tester to the fuse and
check the continuity.
Set the pocket tester selector to “Ω 1”.
Pocket tester
90890-03112, YU-3112
b. If the pocket tester indicates “∞”, replace the
fuse.
3. Replace:
S blown fuse
a. Set the main switch to “OFF”.
b. Install a new fuse of the correct amperage
rating.
c. Set on the switches to verify if the electrical
circuit is operational.
d. If the fuse immediately blows again, check
the electrical circuit.
Fuses
Amperage
rating
Q’ty
Main 30A 1
Headlight 20A 1
Signaling system 10A 1
Ignition 10A 1
Fuel injection 10A 1
Radiator
fan motor
20A 1
Tail 10A 1
Back up 10A 1
Reserve 10A, 20A, 30A 1
