REPLACING THE HEADLIGHT BULBS
CHK
ADJ
WARNING
CAUTION:
EAS00183

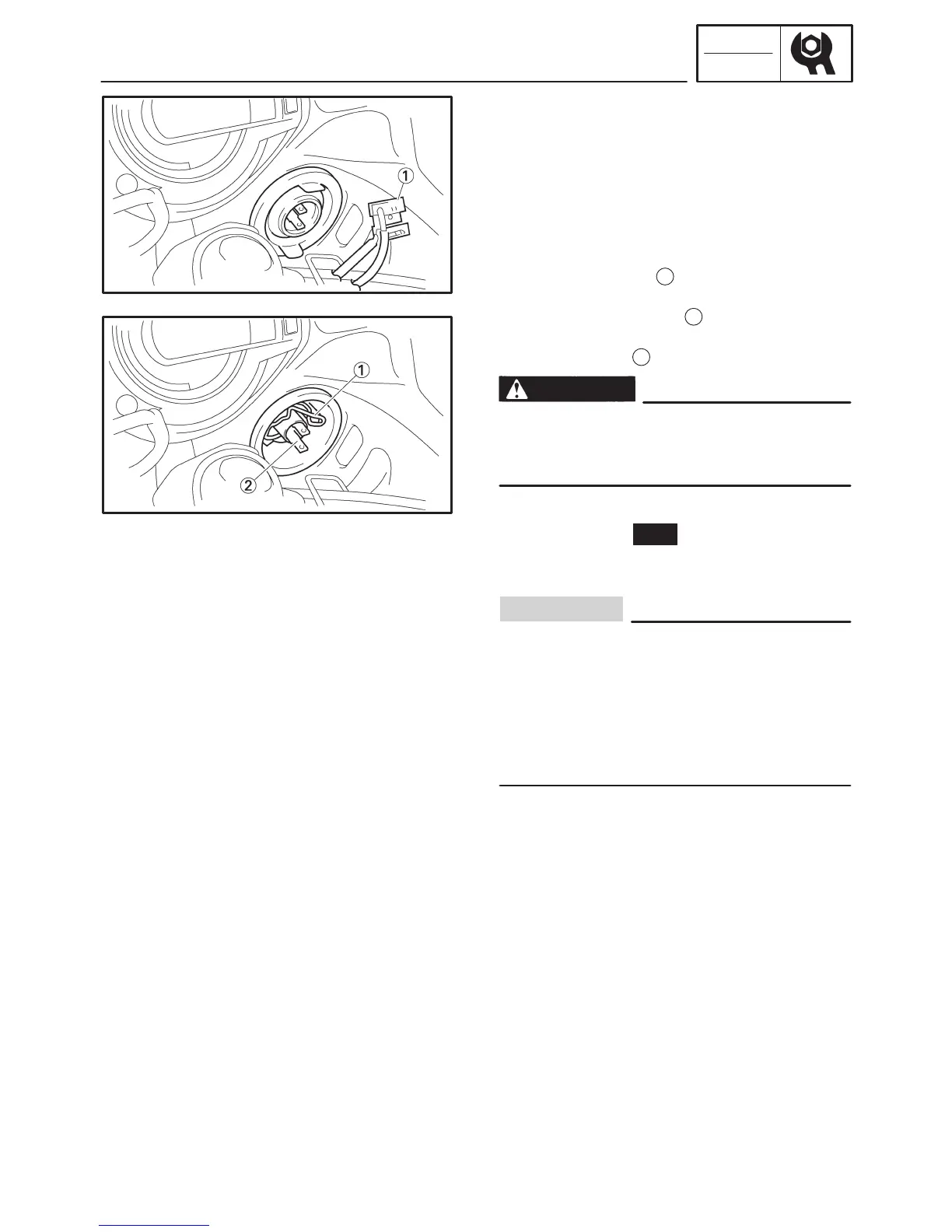

REPLACING THE HEADLIGHT BULBS
The following procedure applies to both of the
headlight bulbs.
1. Remove:
S front cowling inner panels
Refer to “COWLINGS”.
2. Disconnect:
S headlight bulb cover
S headlight coupler
1
3. Remove:
S headlight bulb holder
1
4. Remove:
S headlight bulb
2
Since the headlight bulb gets extremely hot,
keep flammable products and your hands
away from the bulb until it has cooled down.
5. Install:
S headlight bulb
New
Secure the new headlight bulb with the head-
light bulb holder.
Avoid touching the glass part of the head-
light bulb to keep it free from oil, otherwise
the transparency of the glass, the life of the
bulb and the luminous flux will be adversely
affected. If the headlight bulb gets soiled,
thoroughly clean it with a cloth moistened
with alcohol or lacquer thinner.
6. Install:
S headlight bulb holder
7. Install:
S headlight bulb cover
8. Connect:
S headlight coupler
9. Install:
S front cowling inner panels
Refer to “COWLINGS”.
