4-54
FRONT FORK
CHAS
NOTE:
NOTE:
30 Nm (3.0 mSkg, 22 ftSlb)
24 Nm (2.4 mSkg, 17 ftSlb)
30 Nm (3.0 mSkg, 22 ftSlb)
WARNING

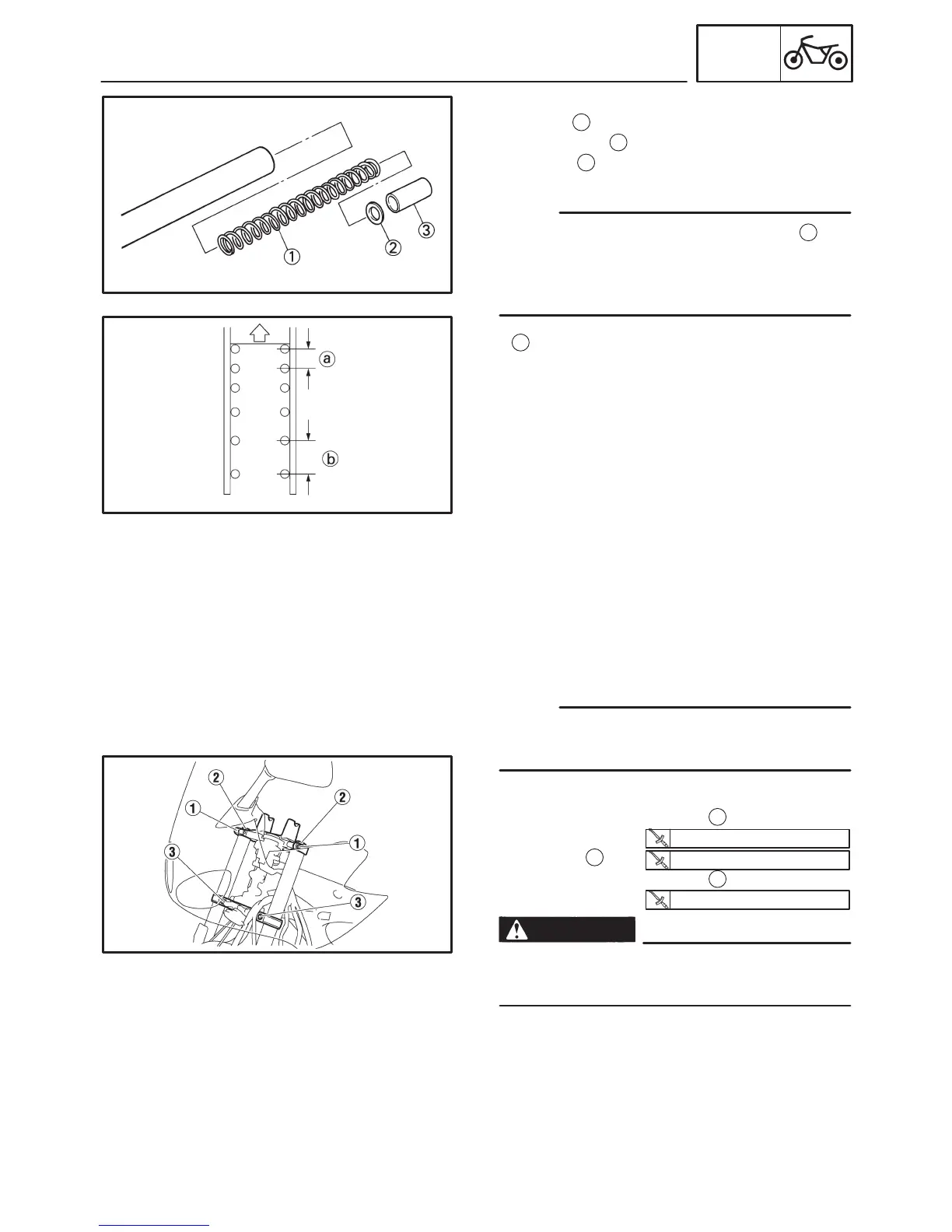

10. Install:
S spring
1
S spring seat
2
S spacer
3
S cap bolt
S Install the spring with the smaller pitch
a
fac-
ing up.
S Before installing the cap bolt, lubricate its O-
ring with grease.
b
Larger pitch
EAS00662
INSTALLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Install:
S front fork leg
Temporarily tighten the upper and under
bracket pinch bolts.
Make sure the inner fork tube is flush with the
top of the upper bracket.
2. Tighten:
S under bracket pinch bolt
1
S cap bolt
2
S upper bracket pinch bolt
3
Make sure the brake hoses are routed prop-
erly.
To Next Page
