4-21
FRONT AND REAR BRAKES
CHAS
NOTE:
NOTE:
EAS00583

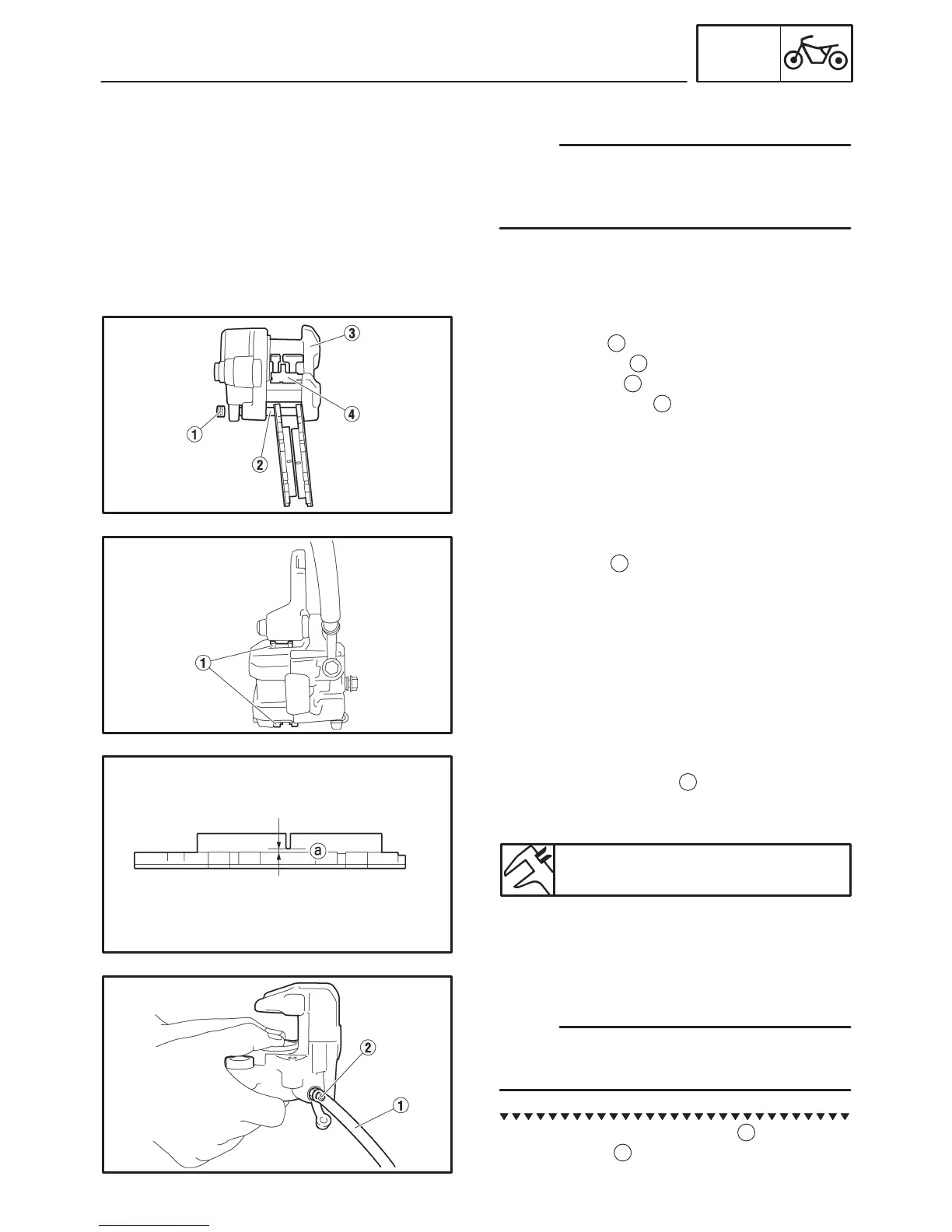

REPLACING THE REAR BRAKE PADS
When replacing the brake pads, it is not neces-
sary to disconnect the brake hose or disas-
semble the brake caliper.
1. Remove:
S screw plug
1
S brake pad pin
2
S brake caliper
3
S brake pad spring
4
2. Remove:
S brake pads
1
(along with the brake pad shims)
3. Measure:
S brake pad wear limit
a
Out of specification ! Replace the brake
pads as a set.
Brake pad wear limit
1.0 mm (0.04 in)
4. Install:
S brake pad spring
S brake pad shims
(onto the brake pads)
S brake pads
Always install new brake pads, brake pad
shims, and a brake pad spring as a set.
a. Connect a clear plastic hose
1
tightly to the
bleed screw
2
. Put the other end of the hose
into an open container.
To Next Page
