4-28
A B
C D
FRONT AND REAR BRAKES
CHAS
NOTE:
NOTE:
EAS00588

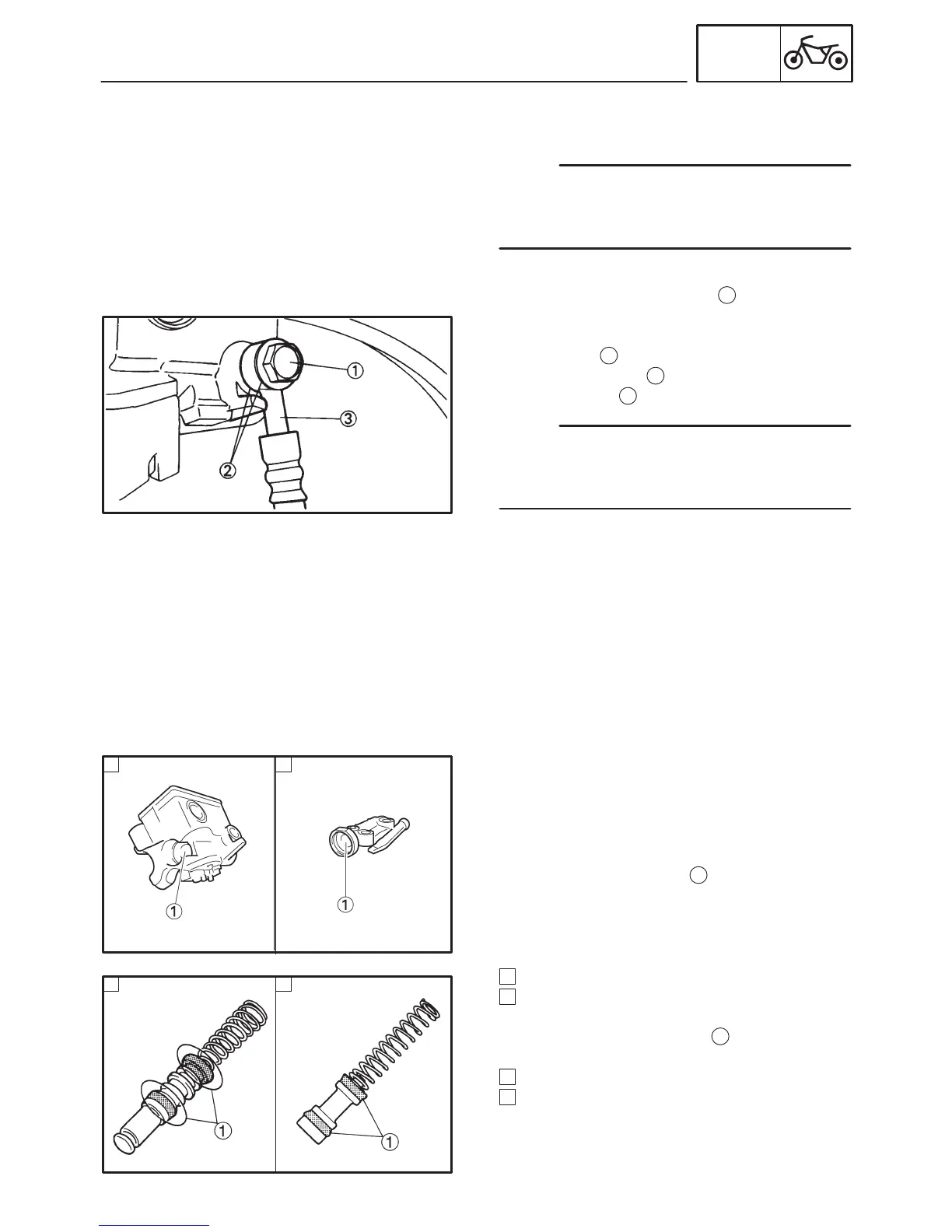

DISASSEMBLING THE FRONT BRAKE
MASTER CYLINDER
Before disassembling the front brake master
cylinder, drain the brake fluid from the entire
brake system.
1. Disconnect:
S brake light switch coupler
1
(from the brake light switch)
2. Remove:
S union bolt
1
S copper washers
2
S brake hoses
3
To collect any remaining brake fluid, place a
container under the master cylinder and the end
of the brake hose.
3. Remove:
S brake lever
S master cylinder bracket
S master cylinder assembly
4. Remove:
S circlip (from the master cylinder assembly)
S master cylinder kit
EAS00592
CHECKING THE FRONT AND REAR BRAKE
MASTER CYLINDERS
The following procedure applies to the both of
the brake master cylinders.
1. Check:
S brake master cylinder
1
Damage/scratches/wear ! Replace.
S brake fluid delivery passages
(brake master cylinder body)
Obstruction ! Blow out with compressed air.
A
Front
B
Rear
2. Check:
S brake master cylinder kit
1
Damage/scratches/wear ! Replace.
C
Front
D
Rear
