5-100
TRANSMISSION
ENG
NOTE:
NOTE:
4. Check:
S transmission gear engagement
(each pinion gear to its respective wheel
gear)
Incorrect ! Reassemble the transmission
axle assemblies.
5. Check:
S transmission gear movement
Rough movement ! Replace the defective
part(s).
6. Check:
S circlips
Bends/damage/looseness ! Replace.
EAS00430

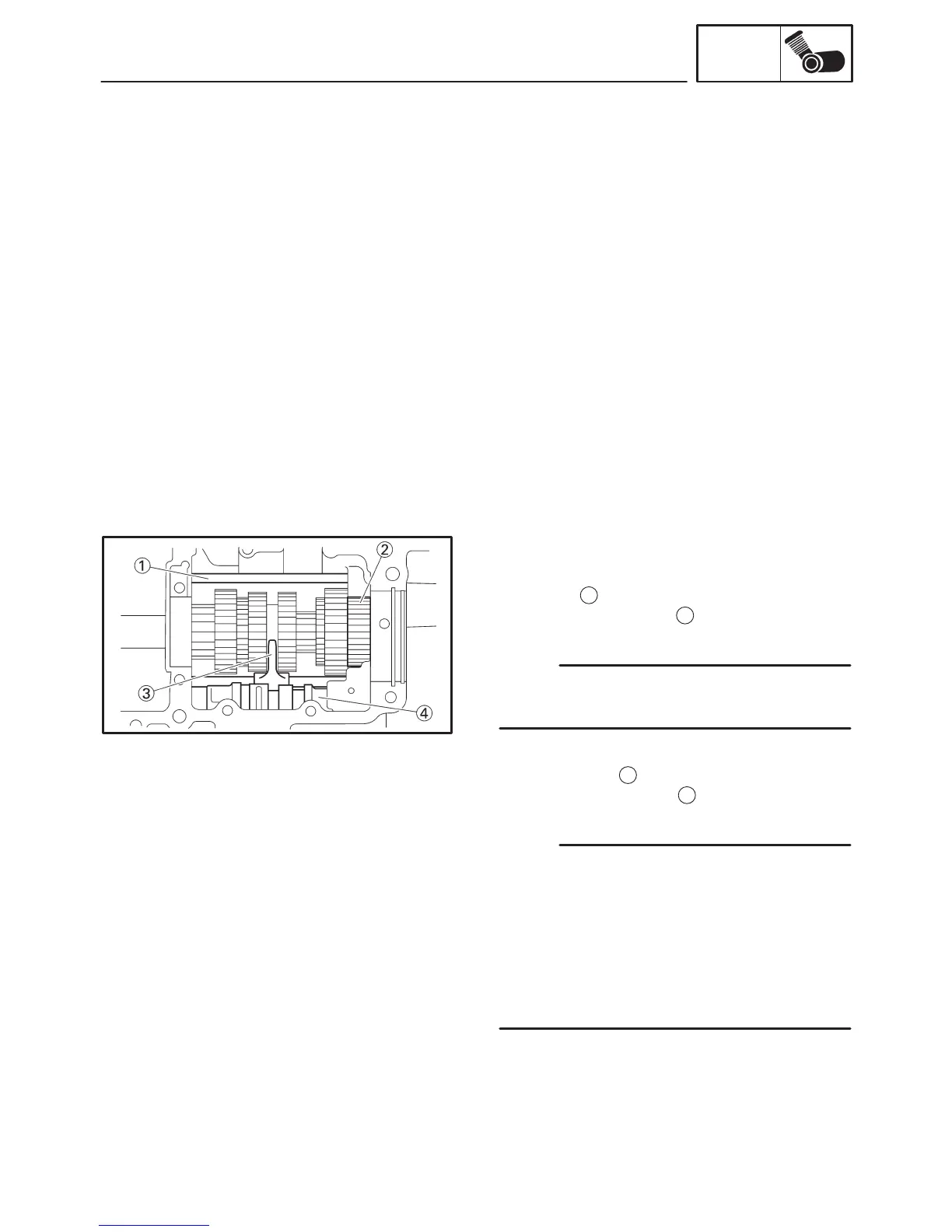

INSTALLING THE TRANSMISSION
1. Install:
S oil pipe
1
S main axle assembly
2
(with the Torx
wrench T30)
Make sure to caulk the bolts at three positions
after installing the bearing housing.
2. Install:
S shift fork “C”
3
S shift drum assembly
4
S shift fork guide bar
S The embossed marks on the shift forks should
face towards the right side of the engine and
be in the following sequence: “R”, “C”, “L”.
S Carefully position the shift forks so that they
are installed correctly into the transmission
gears.
S Install shift fork “C” into the groove in the 3rd
and 4th pinion gear on the main axle.
