3-35
CHECKING THE CRANKCASE BREATHER HOSE/
CHECKING THE EXHAUST SYSTEM
CHK
ADJ
3. Install:
S fuel tank
Refer to “FUEL TANK”.
S front cowling inner panel (left and right)
Refer to “COWLINGS”.
S rider seat
Refer to “SEAT”.
EAS00099

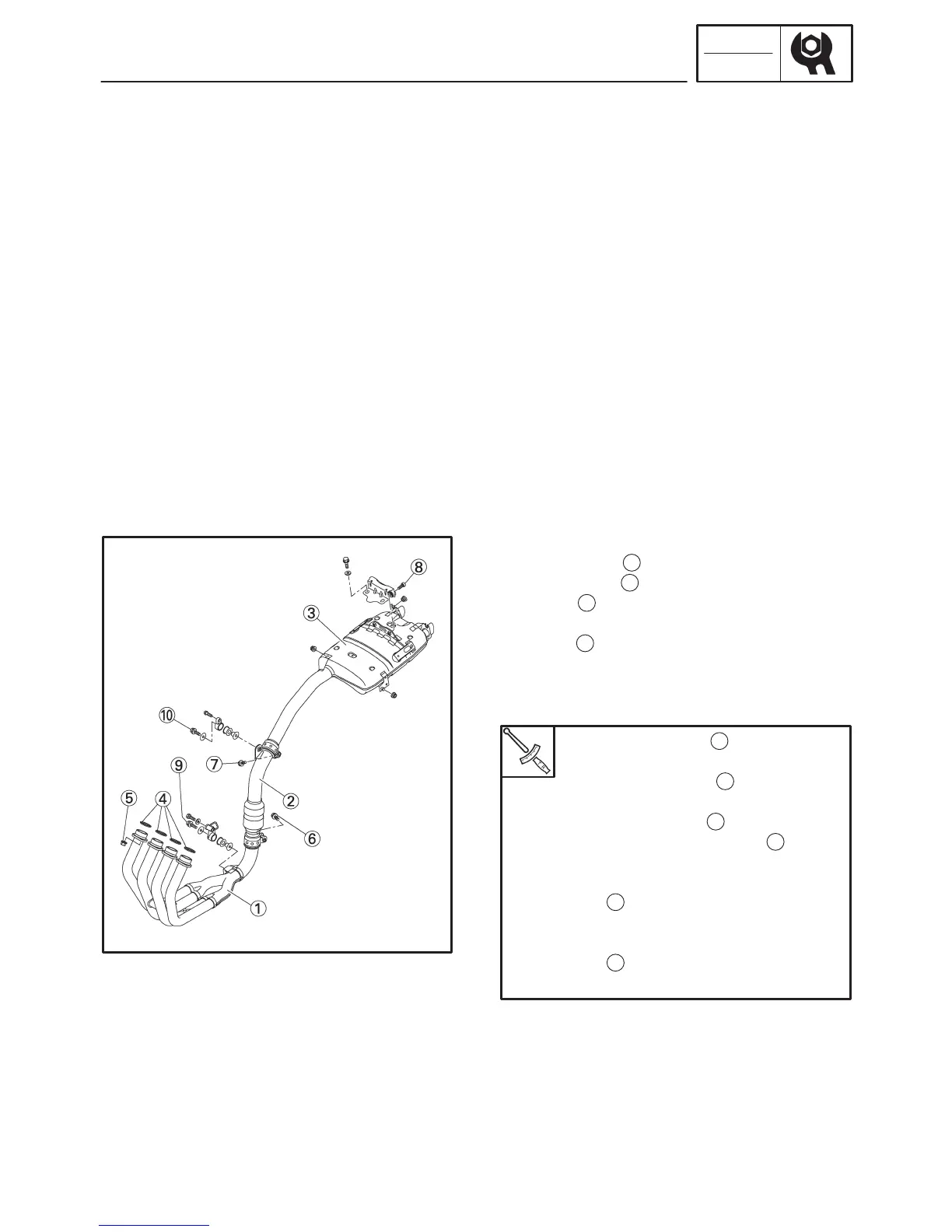

CHECKING THE EXHAUST SYSTEM
The following procedure applies to all of the ex-
haust pipes and gaskets.
1. Remove:
S radiator
Refer to “RADIATOR” in chapter 6.
2. Check:
S exhaust pipe
1
S catalyst pipe
2
S muffler
3
Cracks/damage ! Replace.
S gasket
4
Exhaust gas leaks ! Replace.
3. Check:
S tightening torque
Exhaust pipe nut
5
20 Nm (2.0 mSkg, 15 ftSlb)
Catalyst joint bolt
6
20 Nm (2.0 mSkg, 15 ftSlb)
Muffler joint bolt
7
Muffler and muffler stay
8
20 Nm (2.0 mSkg, 15 ftSlb)
Exhaust pipe and exhaust pipe
stay
9
20 Nm (2.0 mSkg, 15 ftSlb)
Catalyst pipe and catalyst pipe
stay
10
20 Nm (2.0 mSkg, 15 ftSlb)
4. Install:
S radiator
Refer to “RADIATOR” in chapter 6.
