Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13

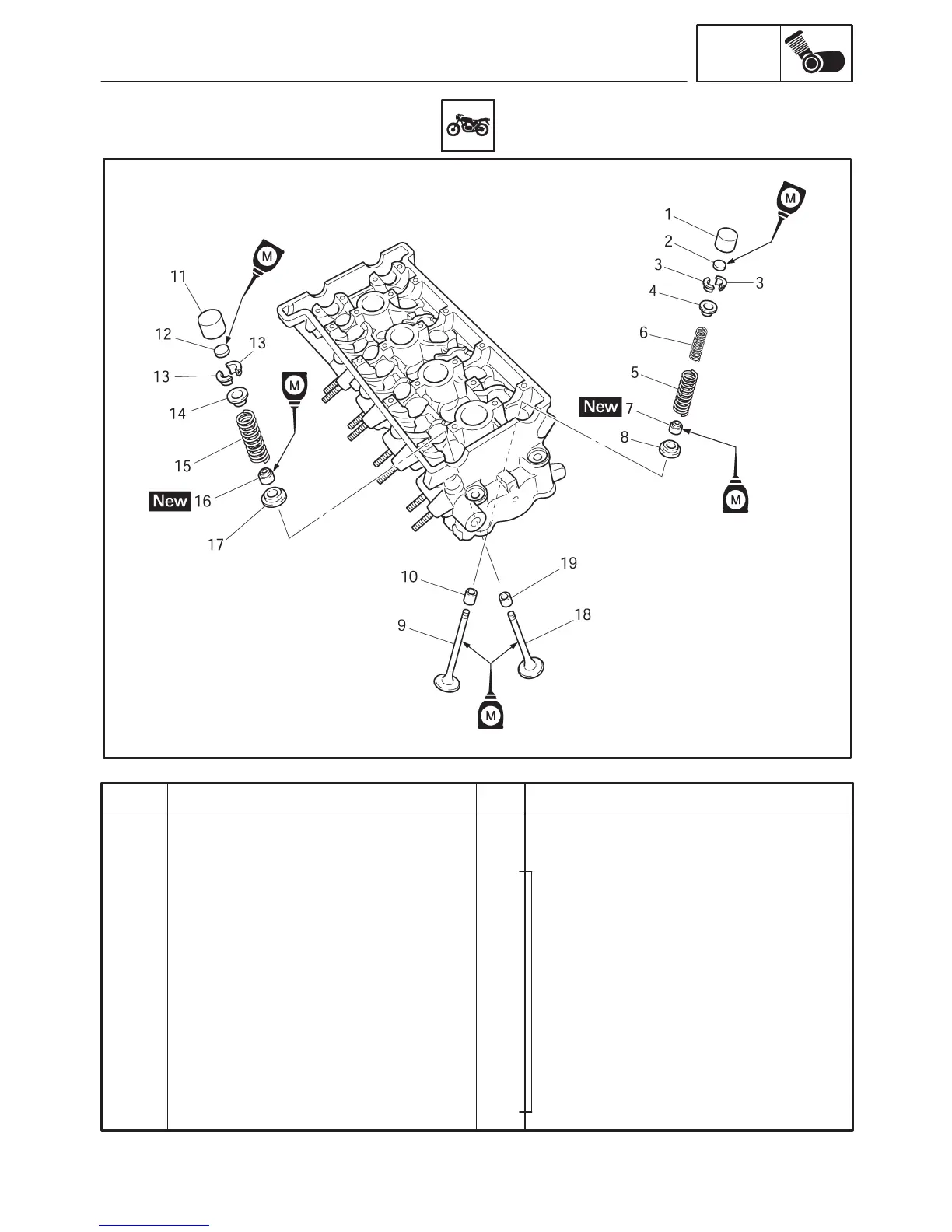

Remove the valves and valve springs
Cylinder head
Intake valve lifter
Intake valve pad
Intake valve cotter
Intake valve upper spring seat
Intake valve spring outer
Intake valve spring inner
Intake valve stem seal
Intake valve lower spring seat
Intake valve
Intake valve guide
Exhaust valve lifter
Exhaust valve pad
Exhaust valve cotter
8
8
16
8
8
8
8
8
8
8
8
8
16
Remove the parts in the order listed.
Refer to “CYLINDER HEAD”.
Refer to “REMOVING/INSTALLING
THE VALVES”.
VALVES AND VALVE SPRINGS
ENG
EAS00236
VALVES AND VALVE SPRINGS
