FRONT AND REAR BRAKES
CHAS
Order Job/Part Q’ty Remarks
1
2
3
4

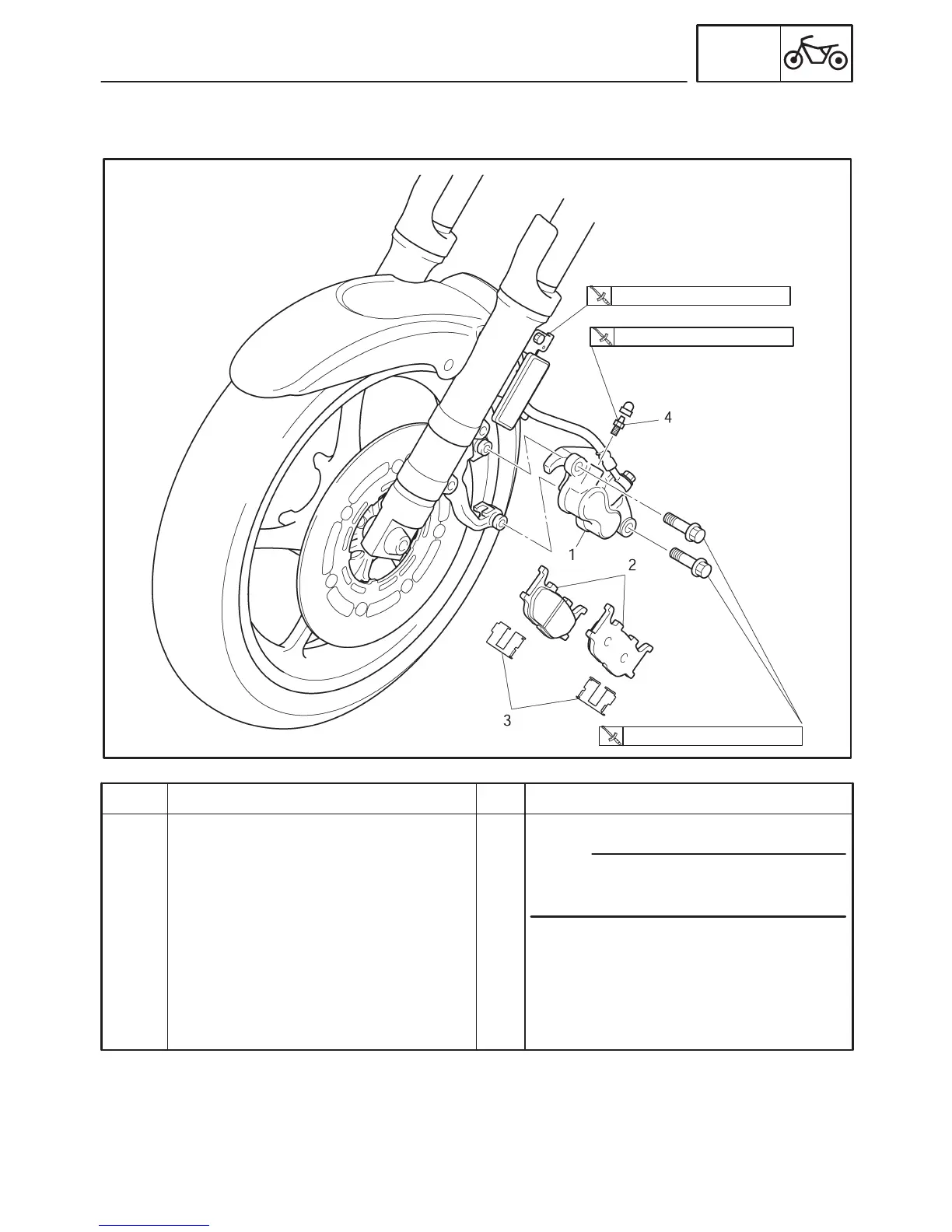

Removing the front brake pads
Front brake caliper
Brake pad
Brake pad spring
Bleed screw
1
2
2
1
Remove the parts in the order listed.
The following procedure applies to both of
the front brake calipers.
For installation, reverse the removal
procedure.
NOTE:
10 Nm (1.0 mSkg, 7.2 ftSlb)
40 Nm (4.0 mSkg, 29 ftSlb)
6 Nm (0.6 mSkg, 4.3 ftSlb)
