4-6
FRONT WHEEL AND BRAKE DISCS
CHAS
NOTE:

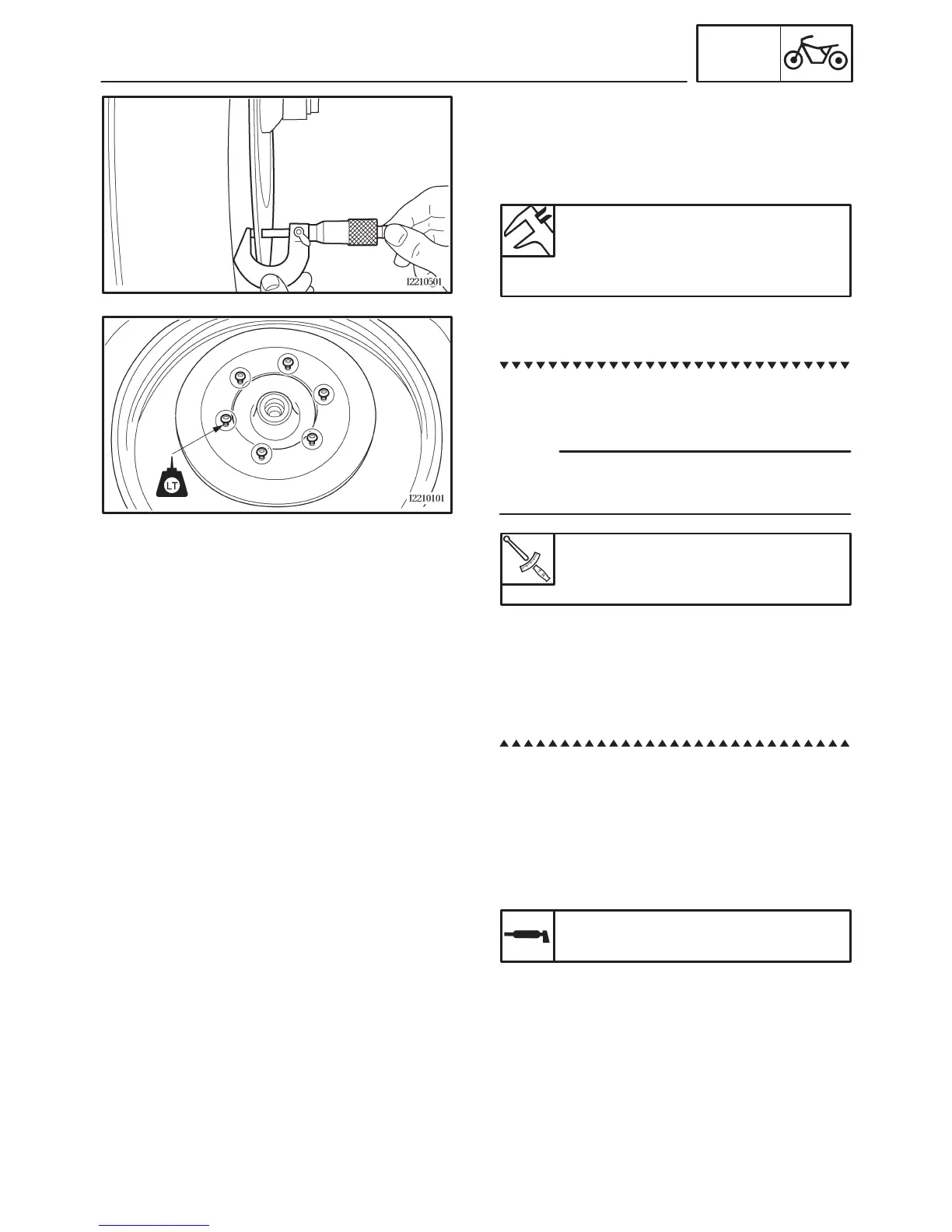

3. Measure:
S brake disc thickness
Measure the brake disc thickness at a few
different locations.
Out of specification ! Replace.
Brake disc thickness limit
(minimum)
Front: 4.5 mm (0.18 in)
Rear: 4.5 mm (0.18 in)
4. Adjust:
S brake disc deflection
a. Remove the brake disc.
b. Rotate the brake disc by one bolt hole.
c. Install the brake disc.
Tighten the brake disc bolts in stages and in a
crisscross pattern.
Brake disc bolt
18 Nm (1.8 mSkg, 13 ftSlb)
LOCTITE
d. Measure the brake disc deflection.
e. If out of specification, repeat the adjustment
steps until the brake disc deflection is within
specification.
f. If the brake disc deflection cannot be brought
within specification, replace the brake disc.
EAS00545
INSTALLING THE FRONT WHEEL
The following procedure applies to both brake
discs.
1. Lubricate:
S wheel axle
S oil seal lips
Recommended lubricant
Lithium-soap-based grease
2. Lift the wheel up between the fork legs.
