5-37
STARTER CLUTCH AND GENERATOR
ENG
NOTE:
75 Nm (7.5 mSkg, 54 ftSlb)
NOTE:
12 Nm (1.2 mSkg, 8.7 ftSlb)
S Do not allow the sheave holder to touch the
projection on the generator rotor.
Sheave holder
90890-01701, YS-01880-A
EAS00354

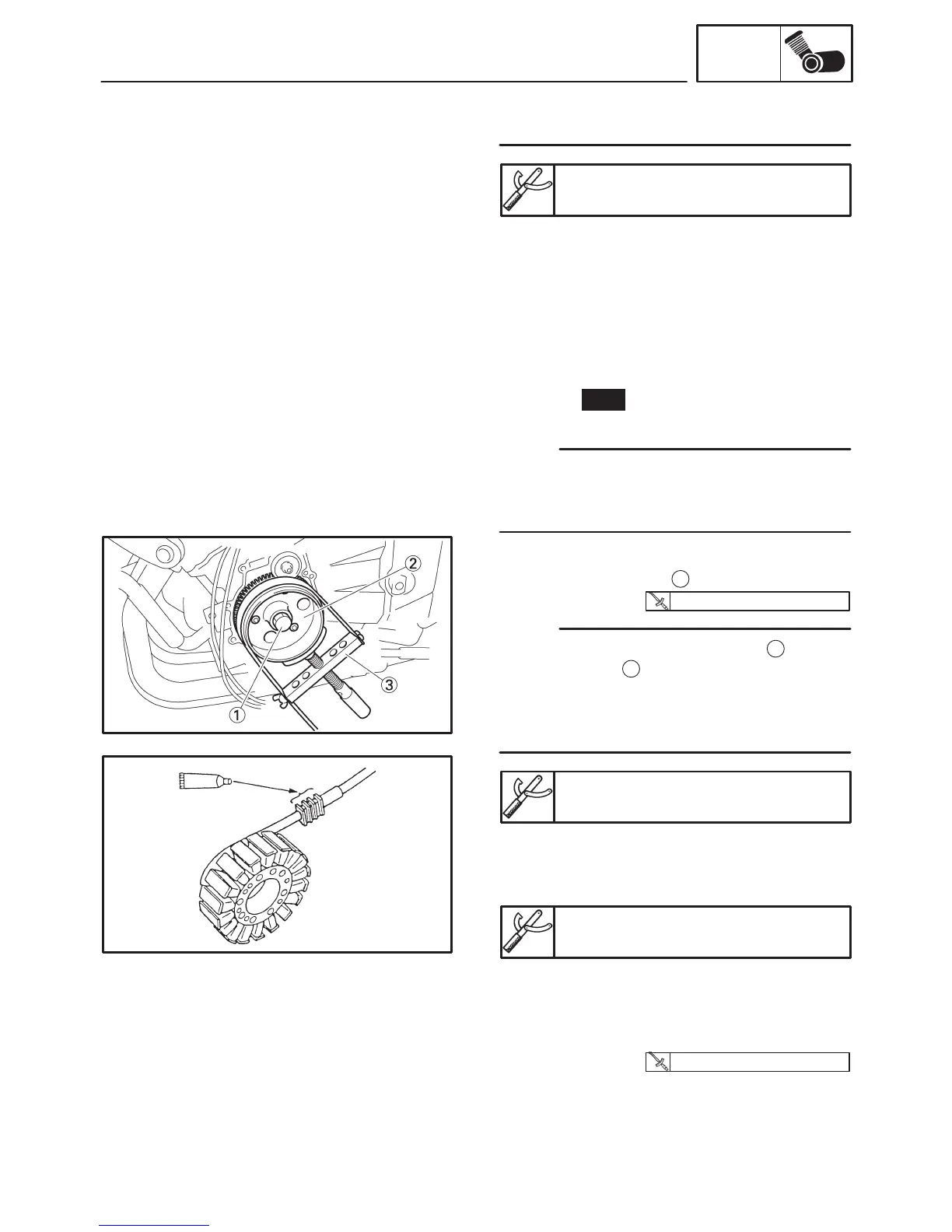

INSTALLING THE GENERATOR
1. Install:
S generator rotor
S washer
New
S generator rotor bolt
S Clean the tapered portion of the crankshaft
and the generator rotor hub.
S Replace the washer with a new one.
2. Tighten:
S generator rotor bolt
1
S While holding the generator rotor
2
with the
sheave holder
3
, tighten the generator rotor
bolt.
S Do not allow the sheave holder to touch the
projection on the generator rotor.
Sheave holder
90890-01701, YS-01880-A
3. Apply:
S sealant
(onto the stator coil assembly lead grommet)
Yamaha bond No.1215
90890-85505, ACC-11001-05-01
4. Install:
S stator coil
5. Install:
S generator rotor cover
