SELF-DIAGNOSIS
ELEC
SELF-DIAGNOSIS
The FZ6-SS/FZ6-SSC features a self-diagnosing system for the following circuit(-s):
S Fuel pump thermistor
S Oil level switch
If any of these circuits are defective, their respective condition codes will be displayed on the warning
light when the main switch is turned “ON” (irrespective of whether the engine is running or not).
Circuit
Defect(-s) System response Condition code
Fuel pump
thermistor
S Open-circuit
S Short-circuit
S The fuel warning light indicate the
condition code.
Refer to *
1
Oil level gauge S Open-circuit
S Short-circuit
S The oil level warning light indicate
the condition code.
Refer to *
2
*

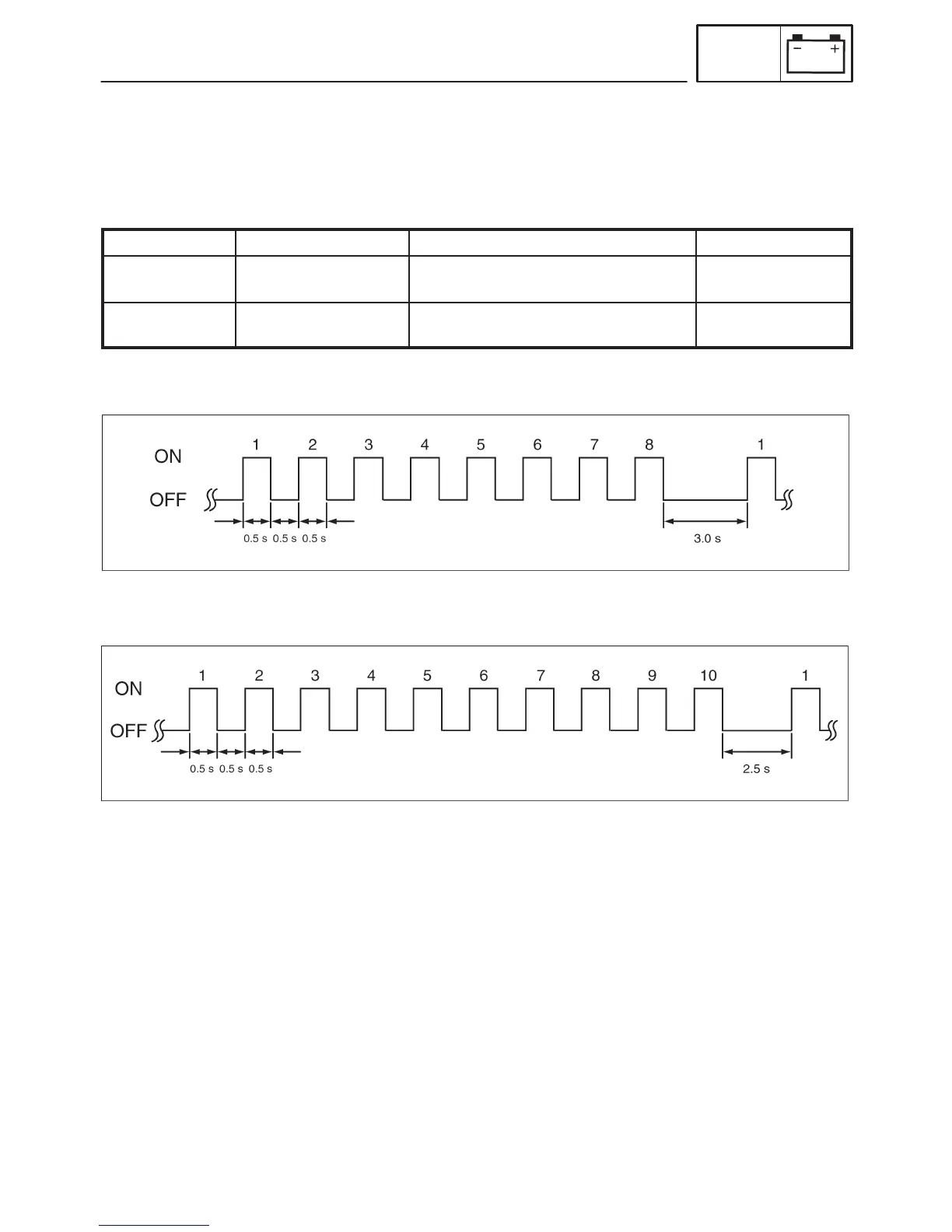

1
Condition code
Fuel warning light
*
2
Condition code
Oil level warning light
