4-37
FRONT AND REAR BRAKES
CHAS
Order
Job
/
Part
Q’ty
Remarks

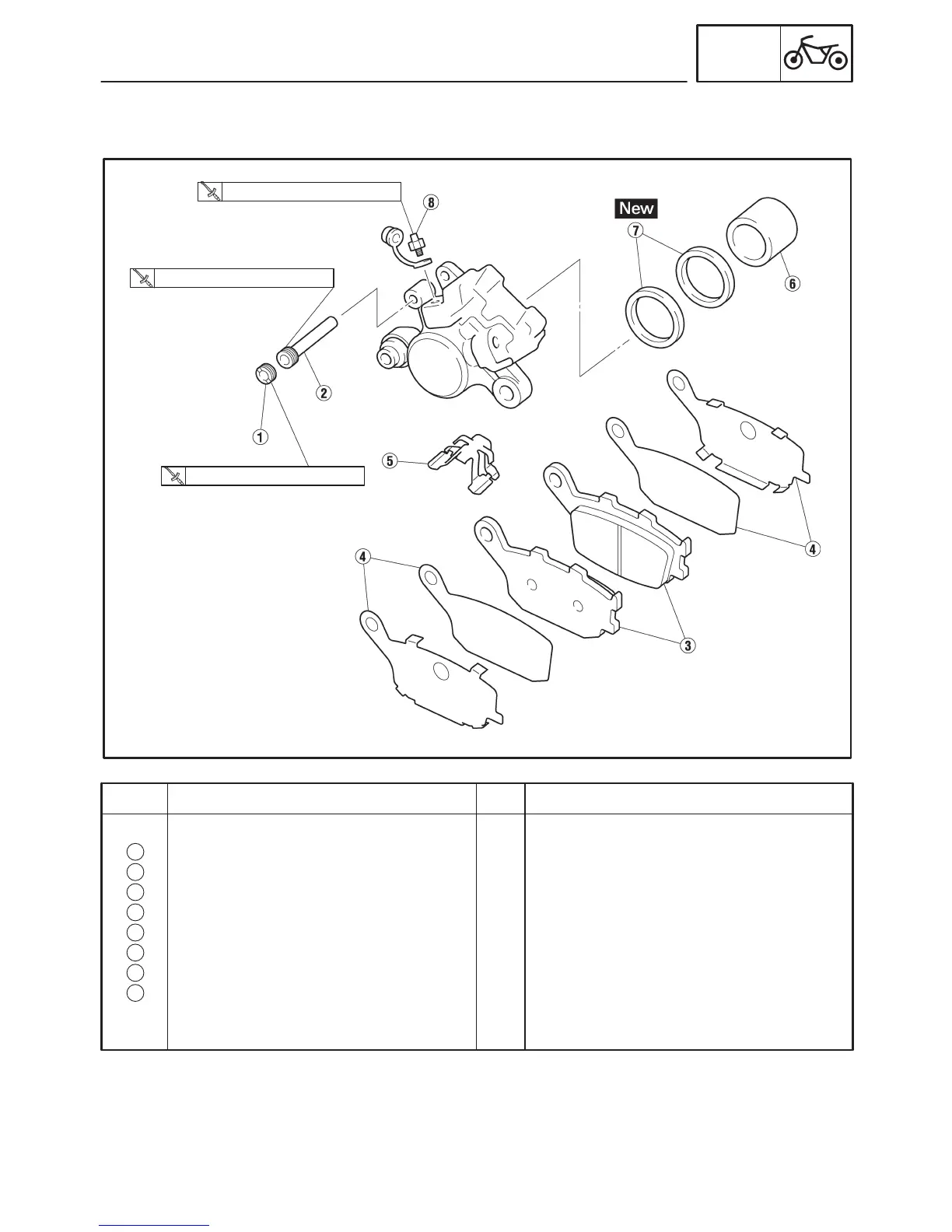

Disassembling the rear brake caliper
Screw plug
Brake pad pin
Brake pad
Brake pad shim
Brake pad spring
Brake caliper piston
Brake caliper piston seal
Bleed screw
1
1
2
4
1
1
2
1
Disassemble the parts in the order listed.
For assembly
, reverse the disassembly
procedure.
1
2
3
4
5
6
7
8
6 Nm (0.6 m
S
kg, 4.3 ft
S
lb)
17 Nm (1.7 m
S
kg, 12 ft
S
lb)
3 Nm (0.3 m
S
kg, 2.2 ft
S
lb)
EAS00617
181
183
