7-2
7
FUEL INJECTION SYSTEM
FI

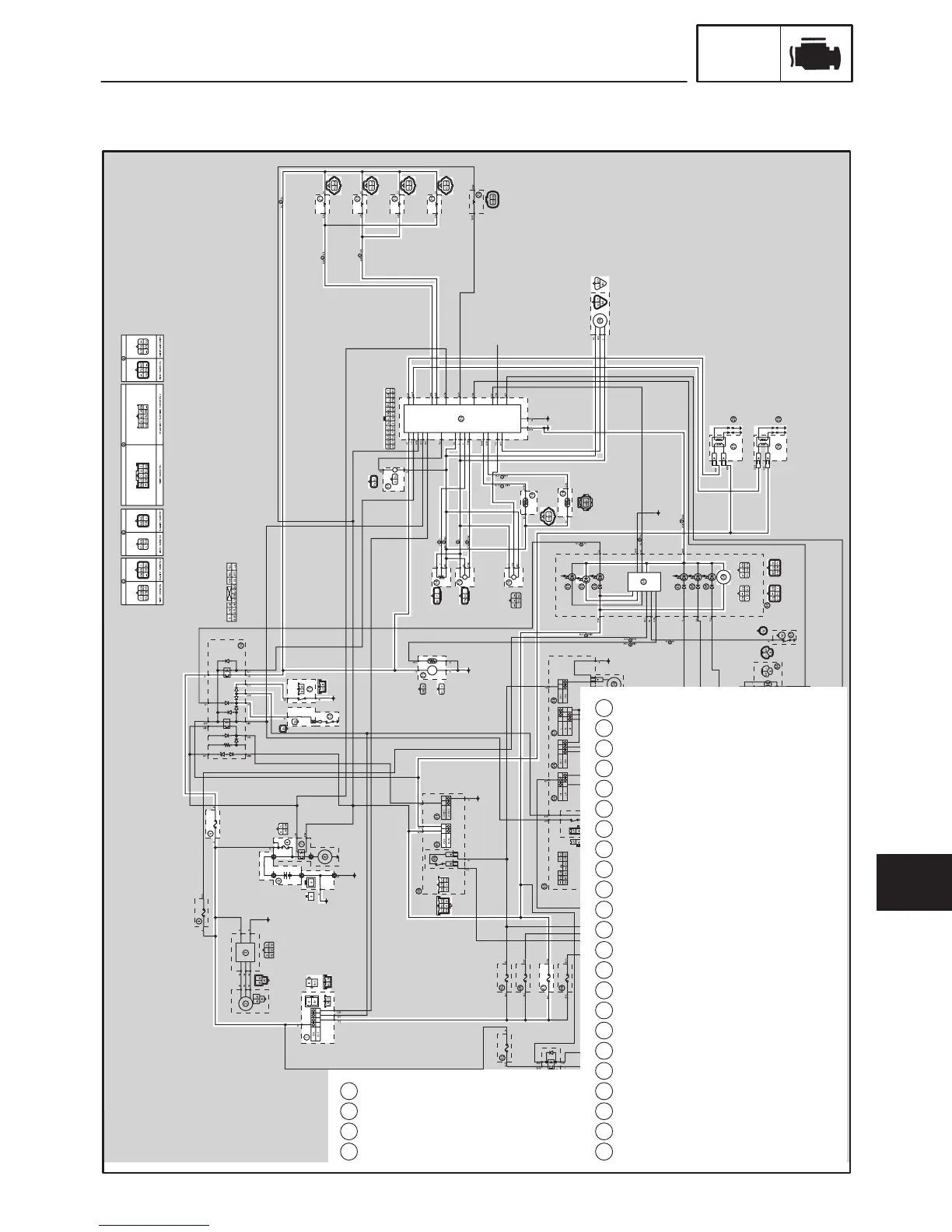

WIRING DIAGRAM
1 Main switch
5 Fuse (fuel injection)
6 Fuse (main)
9 Battery
10 Starting circuit cut-off relay
11 Sidestand switch
12 Neutral switch
13 Fuel pump
14 Throttle position sensor
15 Intake air pressure sensor
16 Lean angle cut-off switch
17 Crankshaft position sensor
18 Intake air temperature sensor
19 Coolant temperature sensor
20 ECU
21 Cylinder #1-injector
22 Cylinder #2-injector
23 Cylinder #3-injector
24 Cylinder #4-injector
26 Speed sensor
27 Ignition coil #1 and #4
28 Ignition coil #2 and #3
29 Spark plug
32 Engine trouble warning light
34 Multi-function meter
40 Engine stop switch
47 Fuse (ignition)
