4-65
REAR SHOCK ABSORBER ASSEMBLY
CHAS
WARNING
NOTE:
NOTE:
EAS00694
REMOVING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Stand the motorcycle on a level surface.
Securely support the motorcycle so that
there is no danger of it falling over.
Place the motorcycle on a suitable stand so that
the rear wheel is elevated.
2. Remove:
S rear wheel
Refer to “REAR WHEEL AND BRAKE
DISC”.

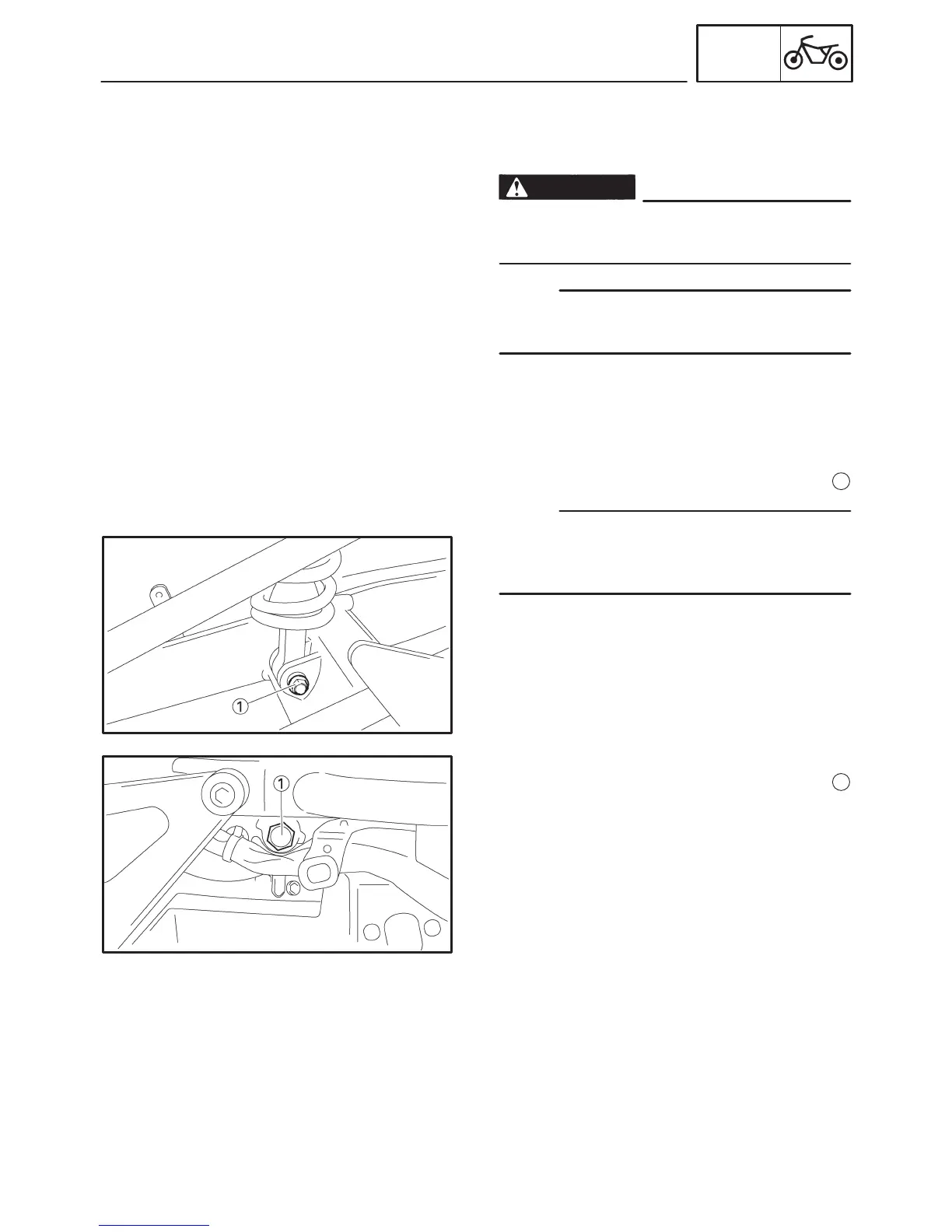

3. Remove:
S rear shock absorber assembly lower bolt
1
While removing the rear shock absorber as-
sembly lower bolt, hold the swingarm so that it
does not drop down.
4. Remove:
S rear shock absorber assembly upper bolt
1
S rear shock absorber assembly
To Next Page
