7-25
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8

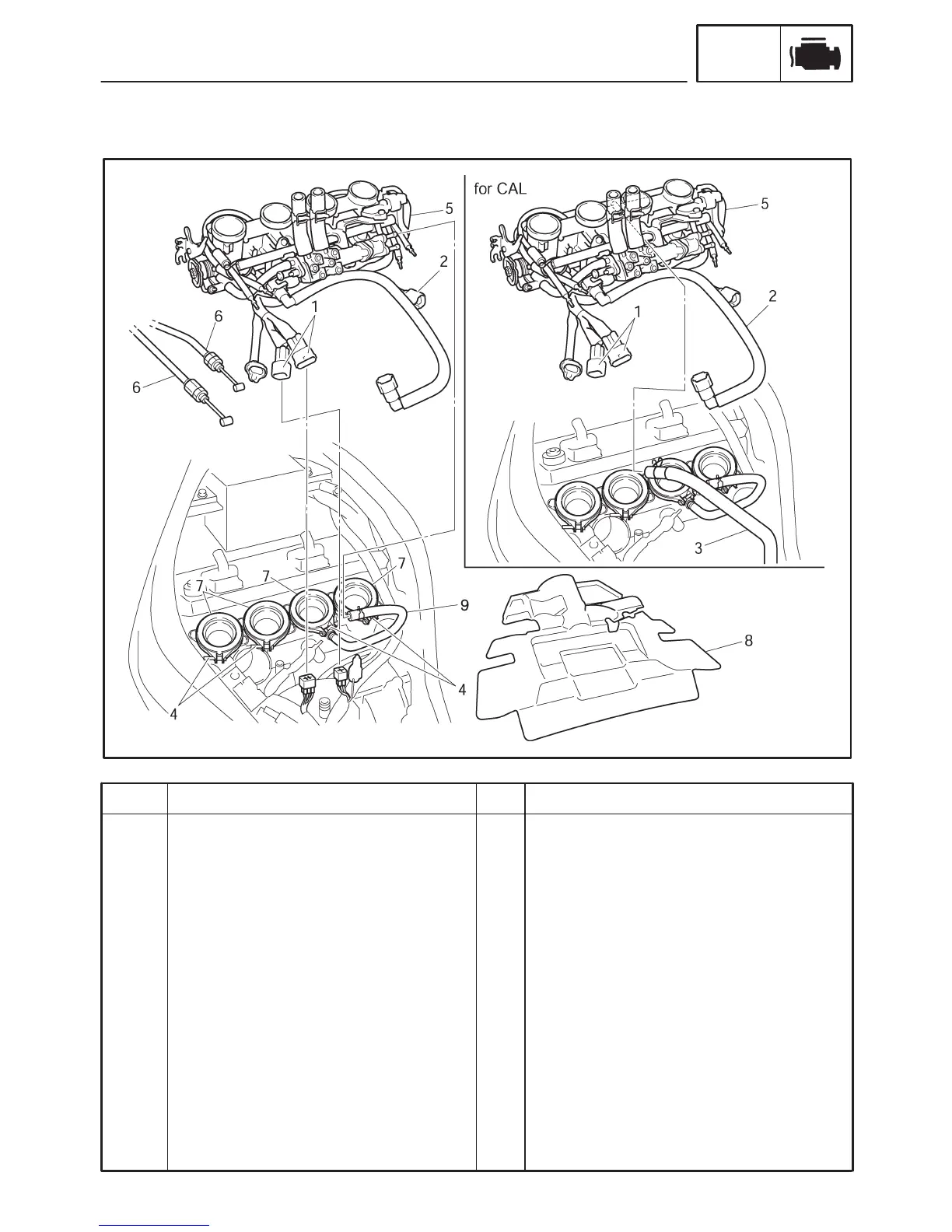

Removing the throttle bodies
Seat
Front cowling inner panel (left and right)
Fuel tank
Battery
Air filter case
Battery box and battery box bracket
Sub-wire harness coupler
Coolant temperature sensor coupler
Balance hose (for CAL)
Throttle body joint clamp screw
Throttle bodies
Throttle cable
Throttle body joint
Heat protector
2
1
1
4
1
2
4
1
Remove the parts in the order listed.
Refer to “SEAT” in chapter 3.
Refer to “COWLINGS” in chapter 3.
Refer to “FUEL TANK” in chapter 3.
Refer to “CHECKING AND CHARGING
THE BATTERY” in chapter 3.
Refer to “AIR FILTER CASE” in chapter 3.
Refer to “BATTERY BOX AND BATTERY
BOX BRACKET” in chapter 3.
Disconnect
Disconnect
Disconnect
Disconnect
THROTTLE BODIES
FI
EAS00909
THROTTLE BODIES
To Next Page
