5-98
TRANSMISSION
ENG
WARNING
EAS00420

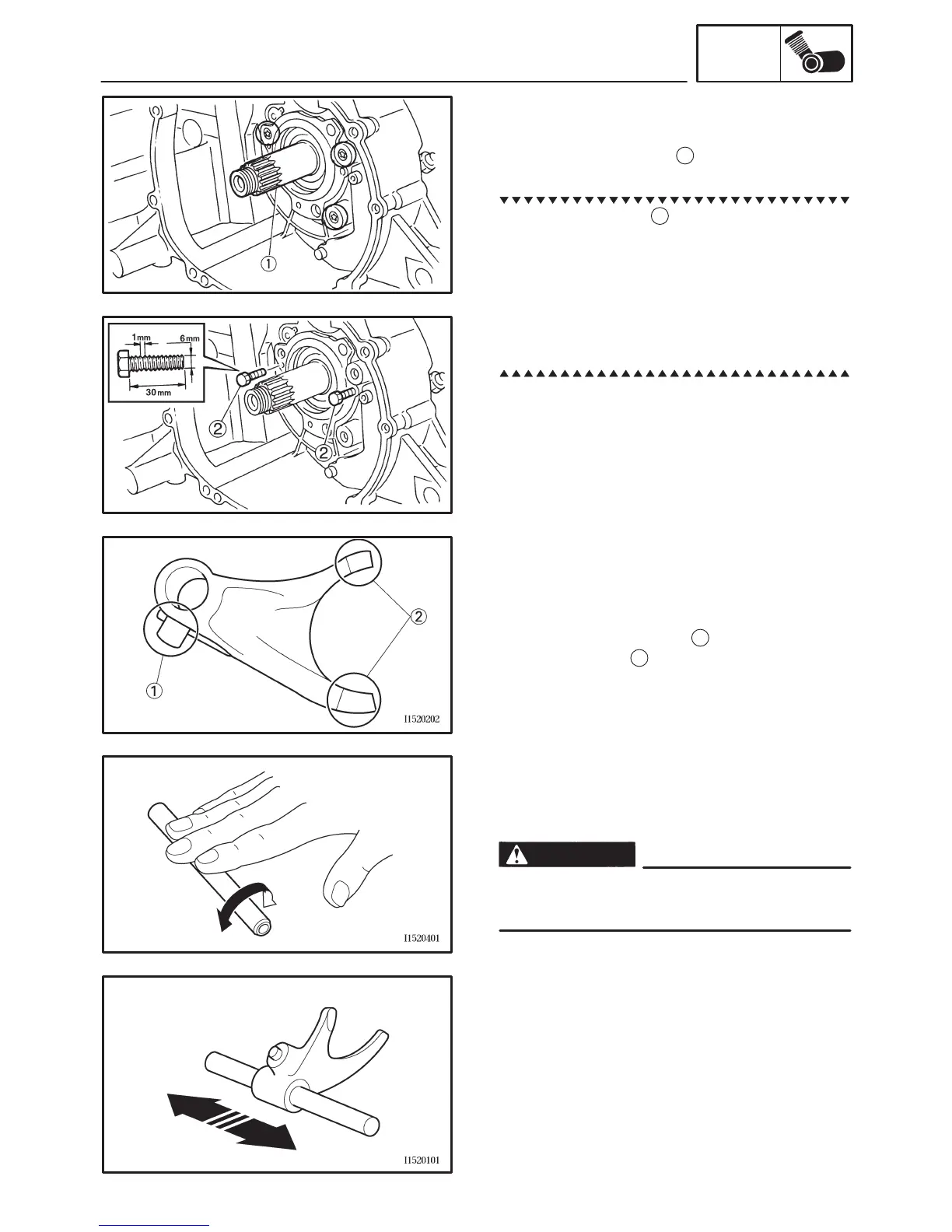

REMOVING THE TRANSMISSION
1. Remove:
S main axle assembly
1
(with the Torx

wrench T30)
a. Insert two bolts
2
of the proper size, as
shown in the illustration, into the main axle
assembly bearing housing.
b. Tighten the bolts until they contact the crank-
case surface.
c. Continue tightening the bolts until the main
axle assembly comes free from the upper
crankcase.
EAS00421
CHECKING THE SHIFT FORKS
The following procedure applies to all of the shift
forks.
1. Check:
S shift fork cam follower
1
S shift fork pawl
2
Bends/damage/scoring/wear ! Replace
the shift fork.
2. Check:
S shift fork guide bar
Roll the shift fork guide bar on a flat surface.
Bends ! Replace.
Do not attempt to straighten a bent shift fork
guide bar.
3. Check:
S shift fork movement
(along the shift fork guide bar)
Rough movement ! Replace the shift forks
and shift fork guide bar as a set.
To Next Page
