FUEL TANK
CHK
ADJ
4 Nm (0.4 mSkg, 2.9 ftSlb)
NOTE:
CAUTION:
NOTE:
NOTE:

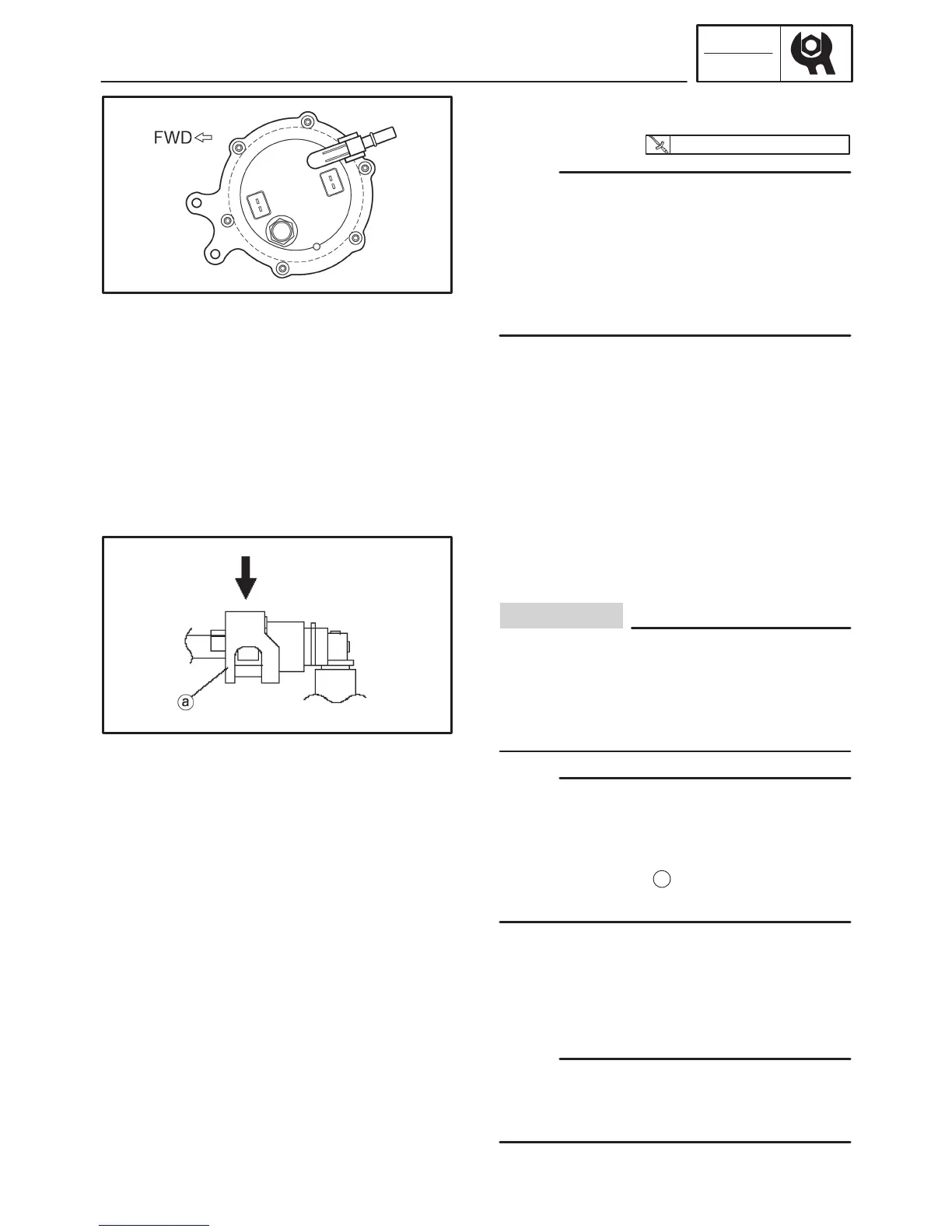

INSTALLING THE FUEL PUMP
1. Install:
S fuel pump
S Do not damage the installation surfaces of the
fuel tank when installing the fuel pump.
S Always use a new fuel pump gasket.
S Install the fuel pump as shown in the illustra-
tion.
S Tighten the fuel pump bolts in stages in a criss-
cross pattern and to the specified torque.
INSTALLING THE FUEL TANK
1. Install:
S fuel hose
When installing the fuel hose, make sure
that it is securely connected, and that the
fuel hose holders are in the correct position,
otherwise the fuel hose will not be properly
installed.
Install the fuel hose connector securely onto the
fuel tank until a distinct “click” is heard, and then
make sure that it does not come loose.
To install the fuel hose from the fuel injection
hose, slide the cover
a
on the end of the hose in
the direction of arrow shown.
2. Install:
S fuel sender coupler
S fuel pump coupler
S fuel tank breather hose (except for CAL)
S fuel tank drain hose
There is a white paint mark on the fuel tank
breather hose (except for CAL).
Refer to “CABLE ROUTING” in chapter 2.
