4-50
FRONT FORK
CHAS
WARNING
CAUTION:
EAS00657

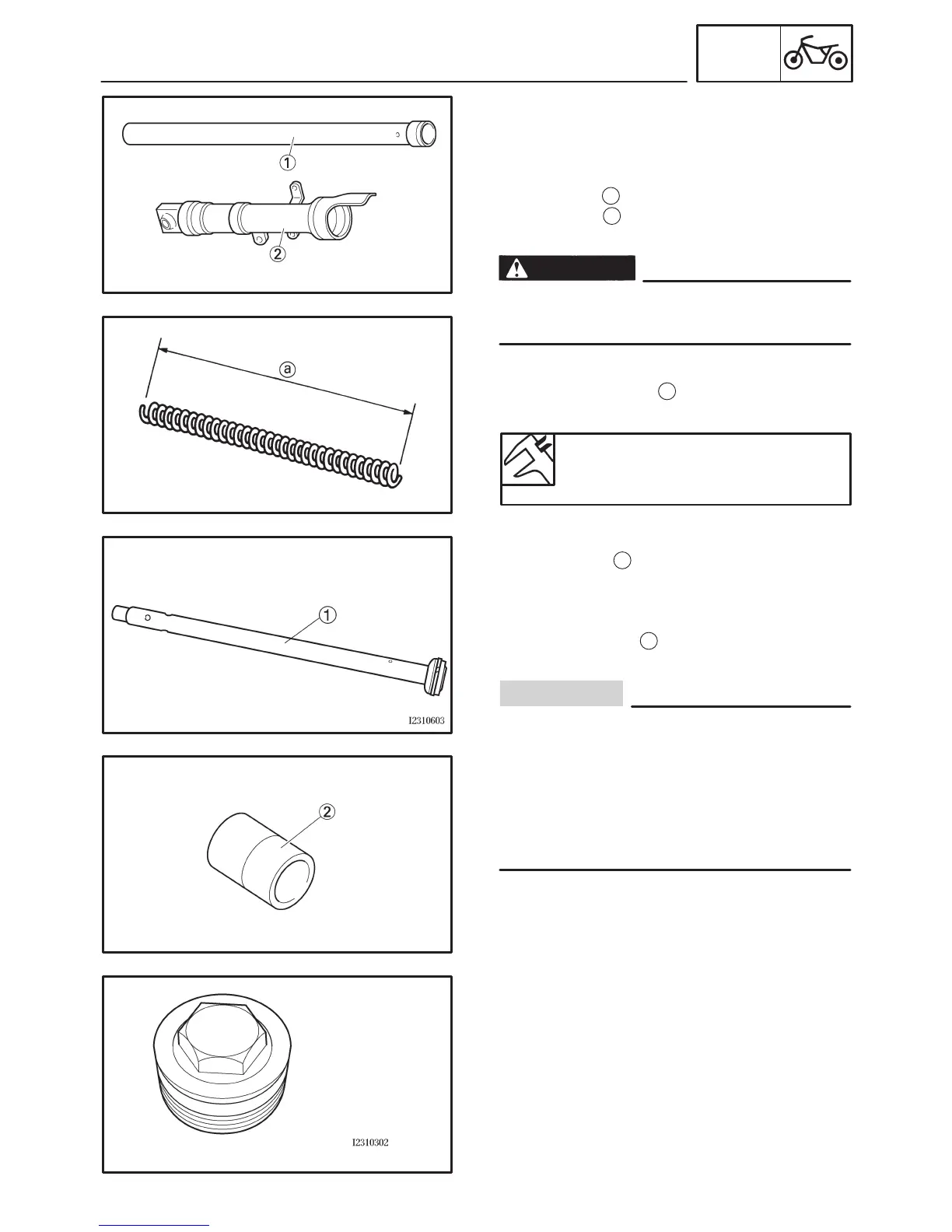

CHECKING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Check:
S inner tube
1
S outer tube
2
Bends/damage/scratches ! Replace.
Do not attempt to straighten a bent inner
tube as this may dangerously weaken it.
2. Measure:
S spring free length
a
Out of specification ! Replace.
Spring free length
354 mm (13.94 in)
<Limit> : 347 mm (13.66 in)
3. Check:
S damper rod
1
Damage/wear ! Replace.
Obstruction ! Blow out all of the oil pas-
sages with compressed air.
S oil flow stopper
2
Damage ! Replace.
S The front fork leg has a built-in damper ad-
justing rod and a very sophisticated inter-
nal construction, which are particularly
sensitive to foreign material.
S When disassembling and assembling the
front fork leg, do not allow any foreign ma-
terial to enter the front fork.
4. Check:
S cap bolt O-ring
Damage/wear ! Replace.
