Yamaha TMAX 2020 Service Manual

1-2
FEATURES
EAS20008
FEATURES
EAS30618

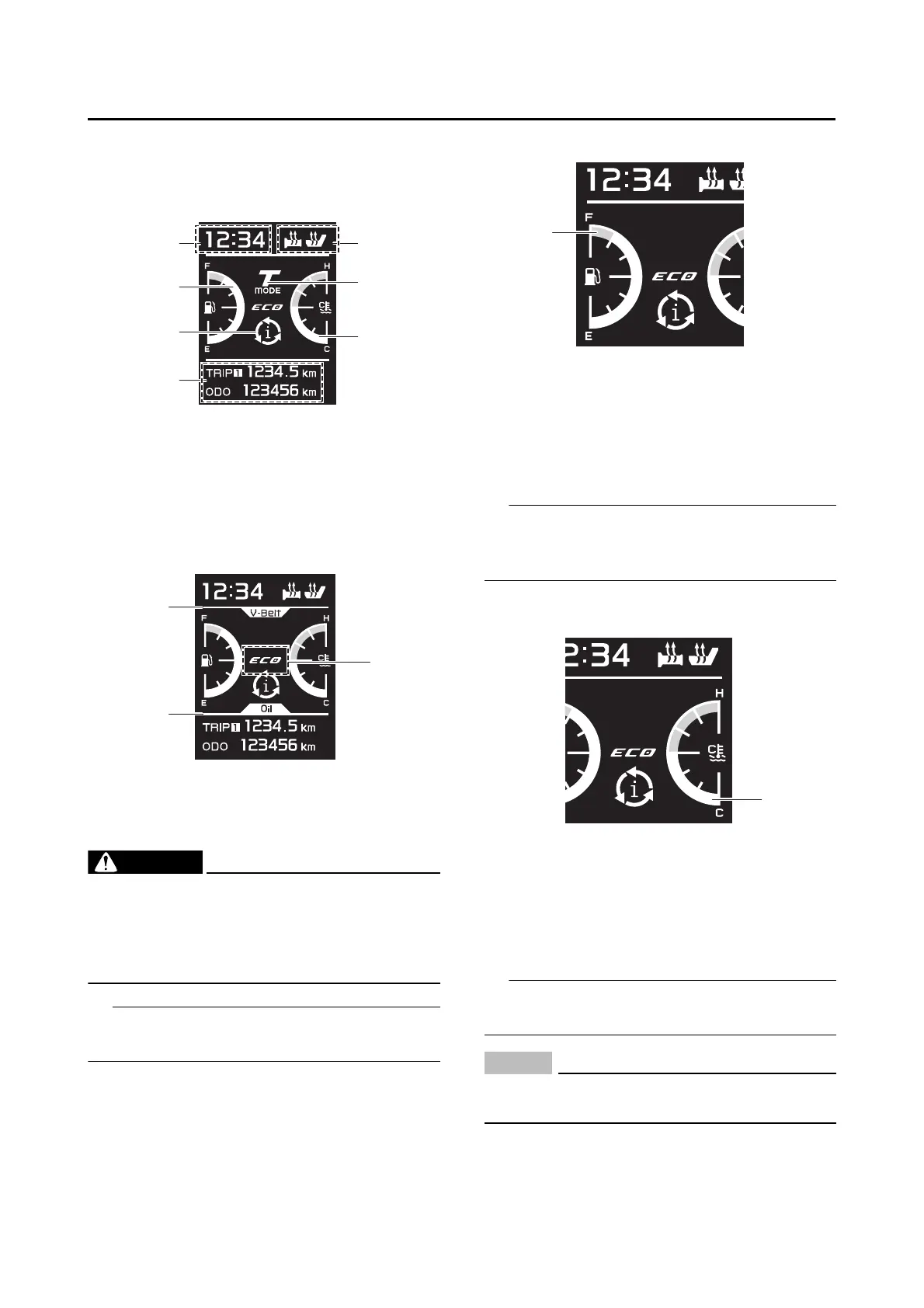

MULTI-FUNCTION DISPLAY
WARNING
EWA12313
Be sure to stop the vehicle before making
any setting changes to the multi-function
display. Changing settings while riding can
distract the operator and increase the risk of
an accident.
TIP
Certain multi-function display items can be ad-
justed via the setting mode.
Fuel meter
The fuel meter indicates the amount of fuel in the
fuel tank. The display segments of the fuel meter
disappear from “F” (full) towards “E” (empty) as
the fuel level decreases. When the last segment
starts flashing, refuel as soon as possible.
TIP
If a problem is detected in the fuel meter electri-
cal circuit, the fuel meter will flash repeatedly.
Check the vehicle.
Coolant temperature meter
The coolant temperature varies with changes in
the weather and engine load. If the top segment
starts flashing, the information display automati-
cally changes to “C-TEMP” and “Hi” flashes.
Stop the vehicle and let the engine cool.
TIP
The information display cannot be changed
while the engine is overheating.
NOTICE
ECA10022
Do not continue to operate the engine if it is
overheating.
1. Information display
2. Function select icon
3. Fuel meter
4. Clock
5. Grip warmer /Seat heater icons
6. Drive mode display
7. Coolant temperature meter
1. Oil change indicator “Oil”
2. V-belt replacement indicator “V-Belt”
3. Eco indicator “ECO”
7
6
1
2
3
4
5
1
2
3
1. Fuel meter
1. Coolant temperature meter
1
1

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
