Yamaha TMAX 2020 Service Manual

4-15
GENERAL CHASSIS (2)
EAS31519

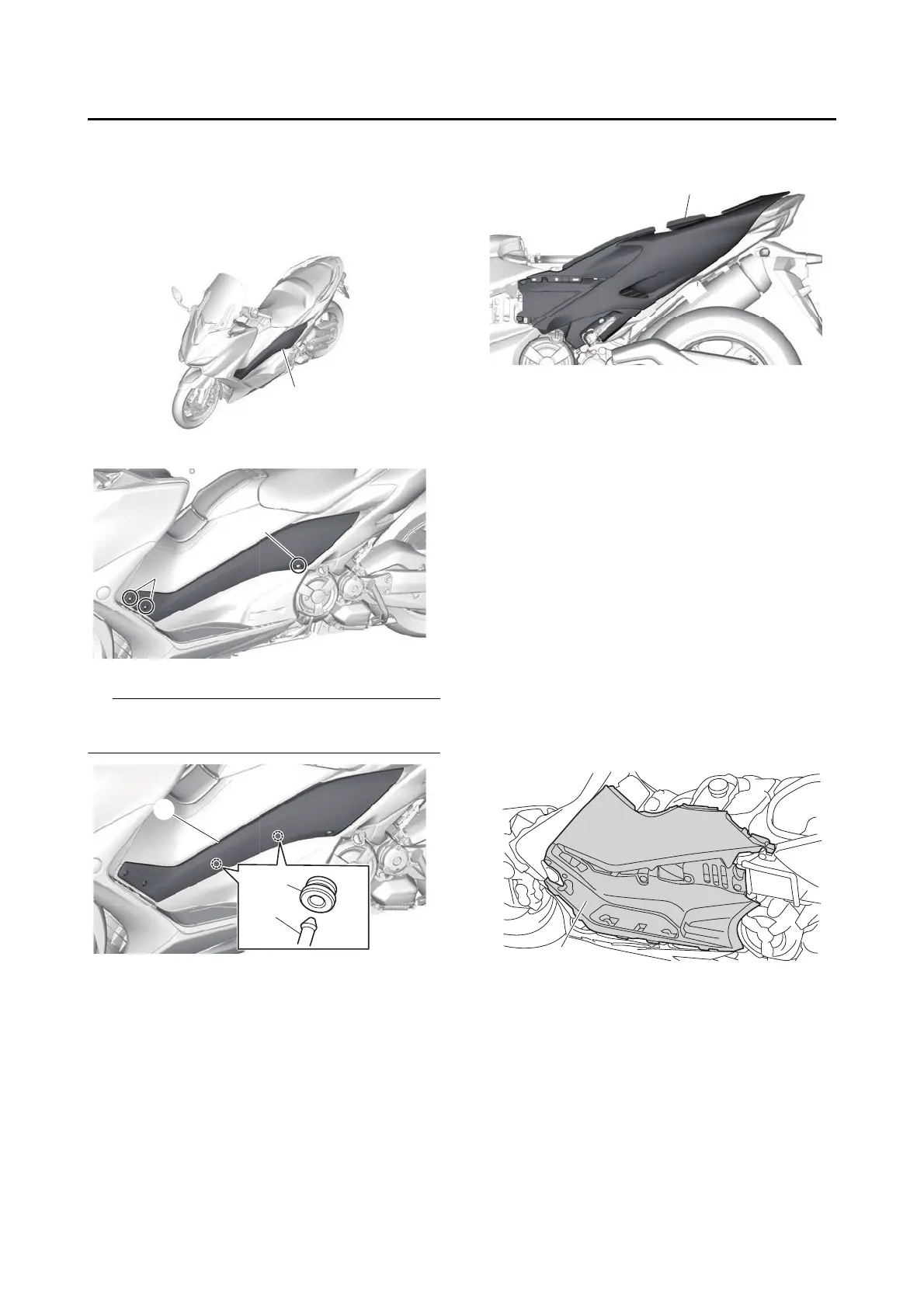

REMOVING THE SIDE COVER
The following procedure applies to both of the
side covers.
1. Remove:
• Side cover “1”
a. Remove the side cover bolts “2”.
b. Remove the side cover “1”.
TIP
Remove projections “a” on the side cover from
grommets “b”.
EAS32386
REMOVING THE REAR SIDE COWLING
The following procedure applies to both of the
rear cowlings.
1. Remove:
• Side cover
• Rear cover
• Grab bar
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
2. Remove:
• Rear side cowling assembly “1”
a. Remove the rear side cowling assembly
screw, bolt, and quick fastener.
EAS31523
REMOVING THE FOOTBOARD
The following procedure applies to both of the
footboards.
1. Remove:
• Bottom side cowling
• Side panel
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
• Rear side cowling assembly
• Fuel tank cover assembly
• Center cover
• Side cover
Refer “GENERAL CHASSIS (2)” on page 4-
11.
2. Remove:
• Footboard “1”
a. Remove the footboard bolt, screw, and
quick fastener.
1
2
2
a
b
1
1
1

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
