Yamaha TMAX 2020 Service Manual

6-8
OIL COOLER
EAS30441
CHECKING THE OIL COOLER
1. Check:
• Oil cooler
Cracks/damage  Replace.
2. Check:
• Oil cooler inlet hose
• Oil cooler outlet hose
Cracks/damage/wear  Replace.
EAS30442

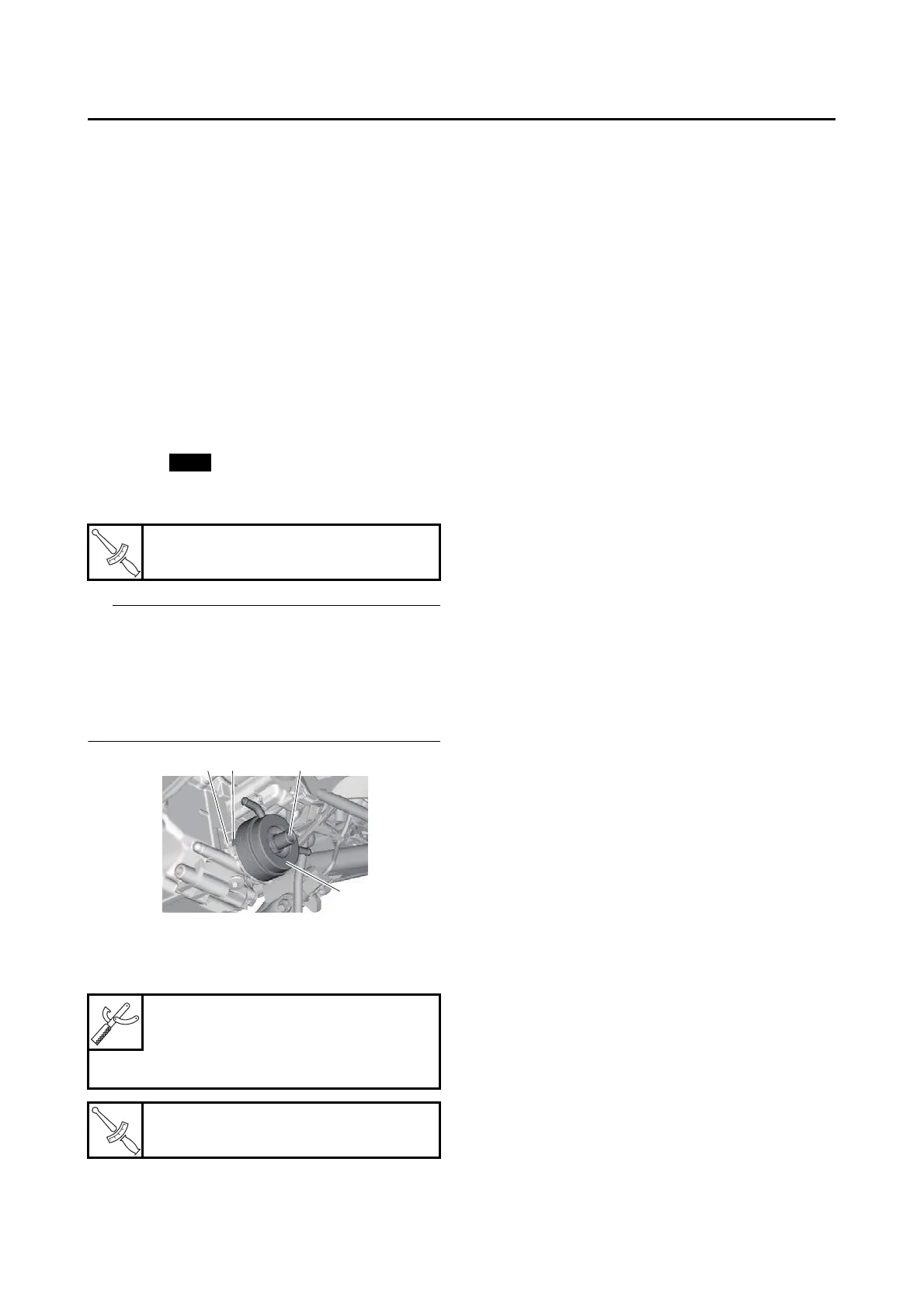

INSTALLING THE OIL COOLER
1. Clean:
• Mating surfaces of the oil cooler and the
crankcase
(with a cloth dampened with lacquer thinner)
2. Install:
•Gasket
• Oil cooler “1”
• Oil filter cartridge union bolt “2”
TIP
• Make sure that the gasket is positioned proper-
ly.
• Apply engine oil to the oil filter cartridge union
bolt thread and its seat of the oil cooler side.
• Align the projection “a” on the oil cooler with the
slot “b” in the crankcase.
3. Install:
• Oil filter cartridge
Refer to “CHANGING THE ENGINE OIL” on
page 3-27.
4. Fill:
• Cooling system
(with the specified amount of the recom-
mended coolant)
Refer to “CHANGING THE COOLANT” on
page 3-31.
• Crankcase
(with the specified amount of the recom-
mended engine oil)
Refer to “CHANGING THE ENGINE OIL” on
page 3-27.
5. Check:
• Cooling system
Leaks  Repair or replace any faulty part.
Refer to “INSTALLING THE RADIATOR” on
page 6-5.
6. Measure:
• Radiator cap valve opening pressure
Below the specified pressure  Replace the
radiator cap.
Refer to “CHECKING THE RADIATOR” on
page 6-5.
Oil filter cartridge union bolt
40 N·m (4.0 kgf·m, 30 lb·ft)
Oil filter wrench
90890-01426
Oil filter wrench
YU-38411
Oil filter cartridge
17 N·m (1.7 kgf·m, 13 lb·ft)
New
T
R
.
.
1
2ab
T
R
.
.

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
