Yamaha TMAX 2020 Service Manual

5-11

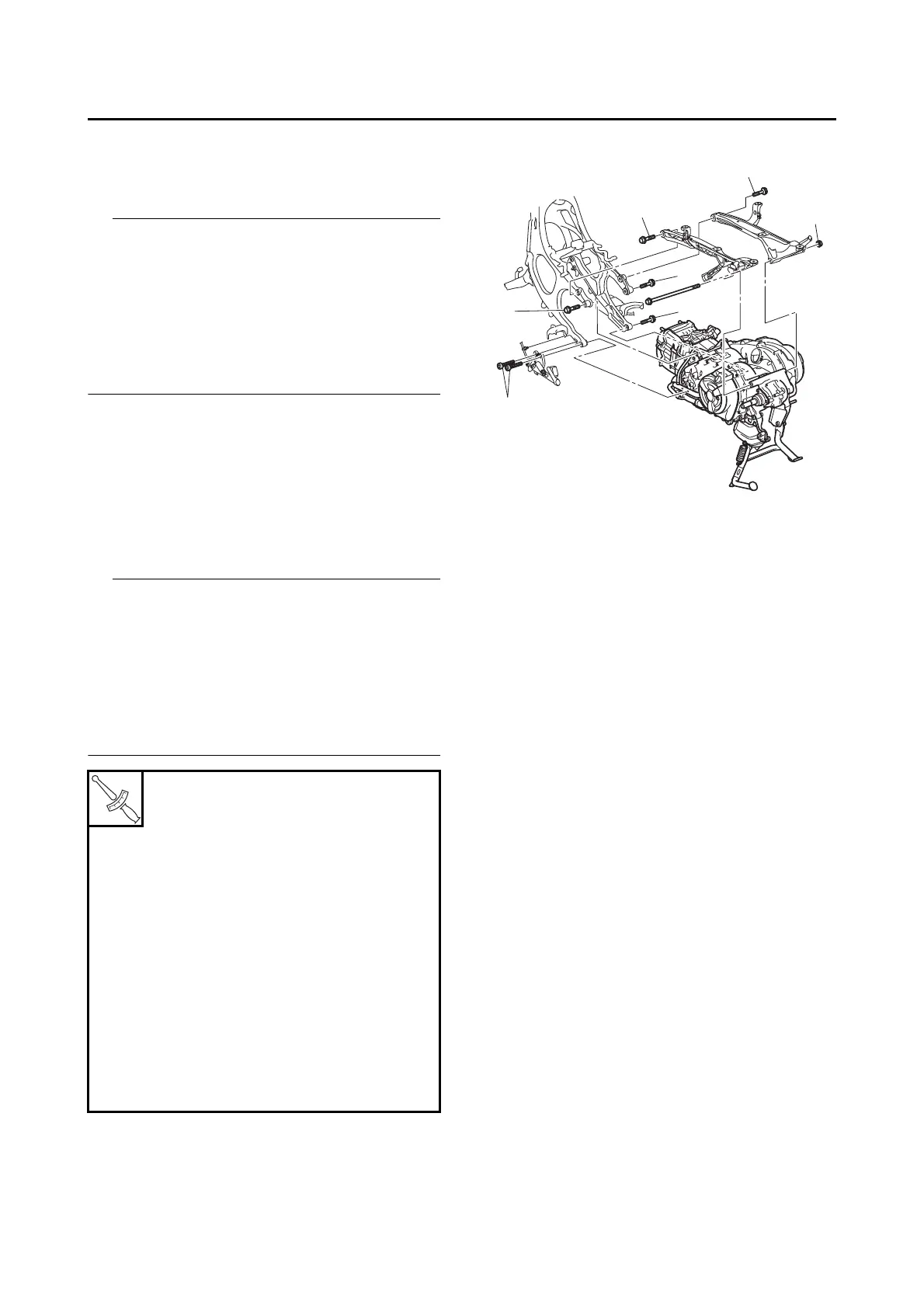

ENGINE REMOVAL
EAS30251
INSTALLING THE ENGINE
1. Install:
• All removed parts
TIP
• Apply locking agent (LOCTITE®) to engine
mounting bolt (front upper side) “1”, engine
mounting bolt (front right lower side) “2”, en-
gine mounting bolts (front left lower side) “3”,
and rear frame bolts “5”.
• For installation, reverse the removal proce-
dure.
• Do not fully tighten the bolts and nuts.
2. Tighten:
• Engine mounting bolts (front upper side) “1”
• Engine mounting bolt (front right lower side)
“2”
• Engine mounting bolts (front left lower side)
“3”
• Engine mounting nut (rear side) “4”
• Rear frame bolts “5”
TIP
When tightening the engine mounting nuts and
engine mounting bolts, do not apply an upward
load to the frame, such as supporting the area
around steering head of the frame upwards. Al-
so, do not apply an upward or downward load on
the rear frame, such as supporting the rear end
of the rear frame upwards or pushing it down-
wards.
Engine mounting bolt
(front upper side)
77 N·m (7.7 kgf·m, 57 lb·ft)
LOCTITE®
Engine mounting bolt (front right
lower side)
70 N·m (7.0 kgf·m, 52 lb·ft)
LOCTITE®
Engine mounting bolt (front left
lower side)
78 N·m (7.8 kgf·m, 58 lb·ft)
LOCTITE®
Engine mounting nut (rear side)
105 N·m (10.5 kgf·m, 77 lb·ft)
Rear frame bolt
83 N·m (8.3 kgf·m, 61 lb·ft)
LOCTITE®
T
R
.
.
1
1
2
3
4
5
5

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
