Yamaha TMAX 2020 Service Manual

4-66
REAR BRAKE
7. Install:
• Boot
• Rear brake lock caliper arm
TIP
• Check that the boot is installed correctly.

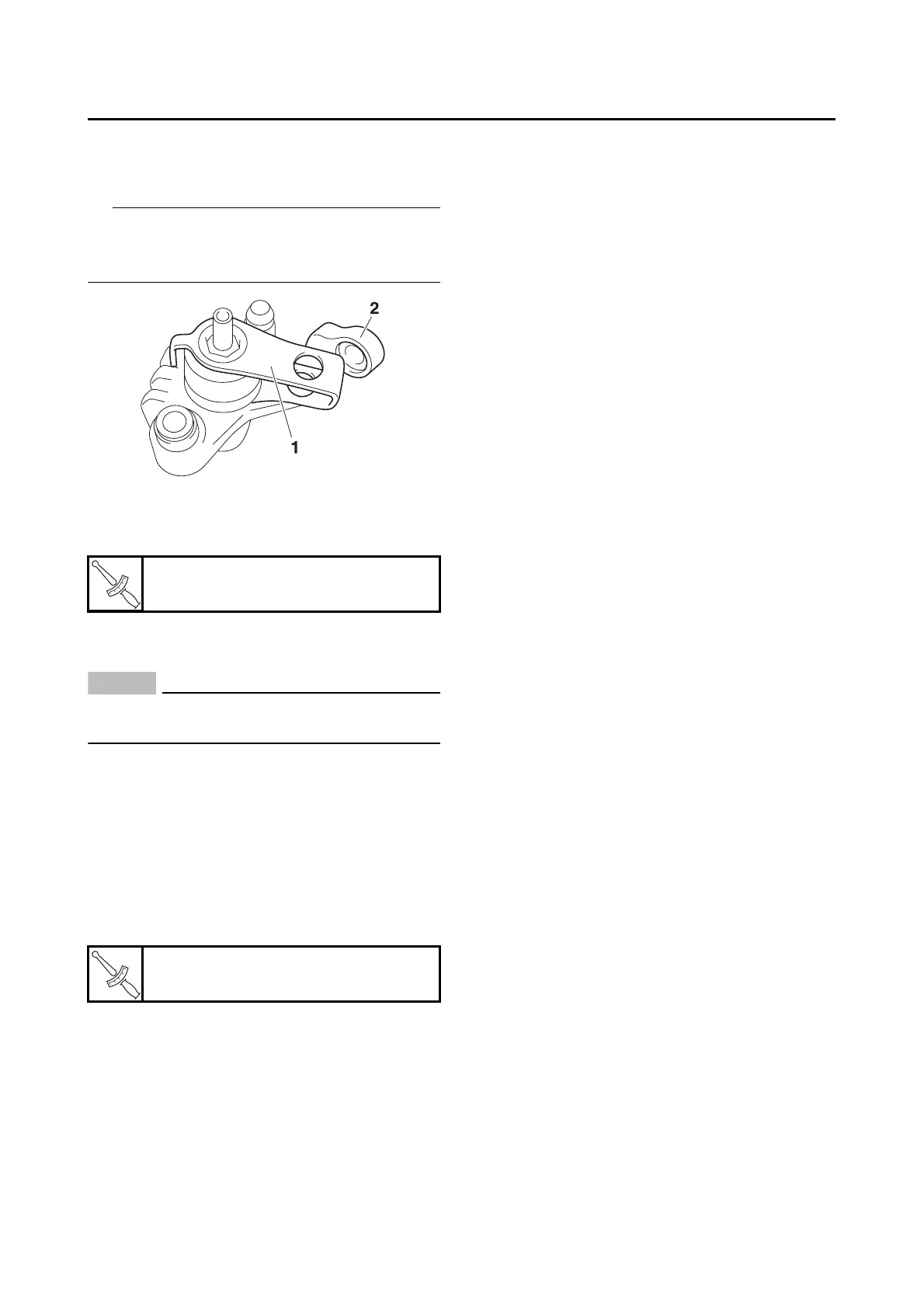

• Install rear brake lock caliper arm “1” in the po-
sition closest to cable holder “2”.
8. Install:
• Rear brake lock adjusting nut
•Cap
9. Install:
• Rear brake lock pad
NOTICE
ECA22120
After installing the rear brake lock pad to the
caliper, check that the pad rotates smoothly.
EAS31422
INSTALLING THE REAR BRAKE LOCK
CALIPER
1. Install:
• Rear brake lock caliper
• Rear brake lock caliper bolt
• Rear brake lock spring
•Pin
• Rear brake lock cable adjusting nut
2. Adjust:
• Rear brake lock cable length
Refer to “ADJUSTING THE REAR BRAKE
LOCK CABLE” on page 3-17.
Rear brake lock adjusting nut
15 N·m (1.5 kgf·m, 11 lb·ft)
Rear brake lock caliper bolt
23 N·m (2.3 kgf·m, 17 lb·ft)
T
R
.
.
T
R
.
.

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
