Yamaha TMAX 2020 Service Manual

4-67
ABS (Anti-lock Brake System)
EAS20032
ABS (Anti-lock Brake System)

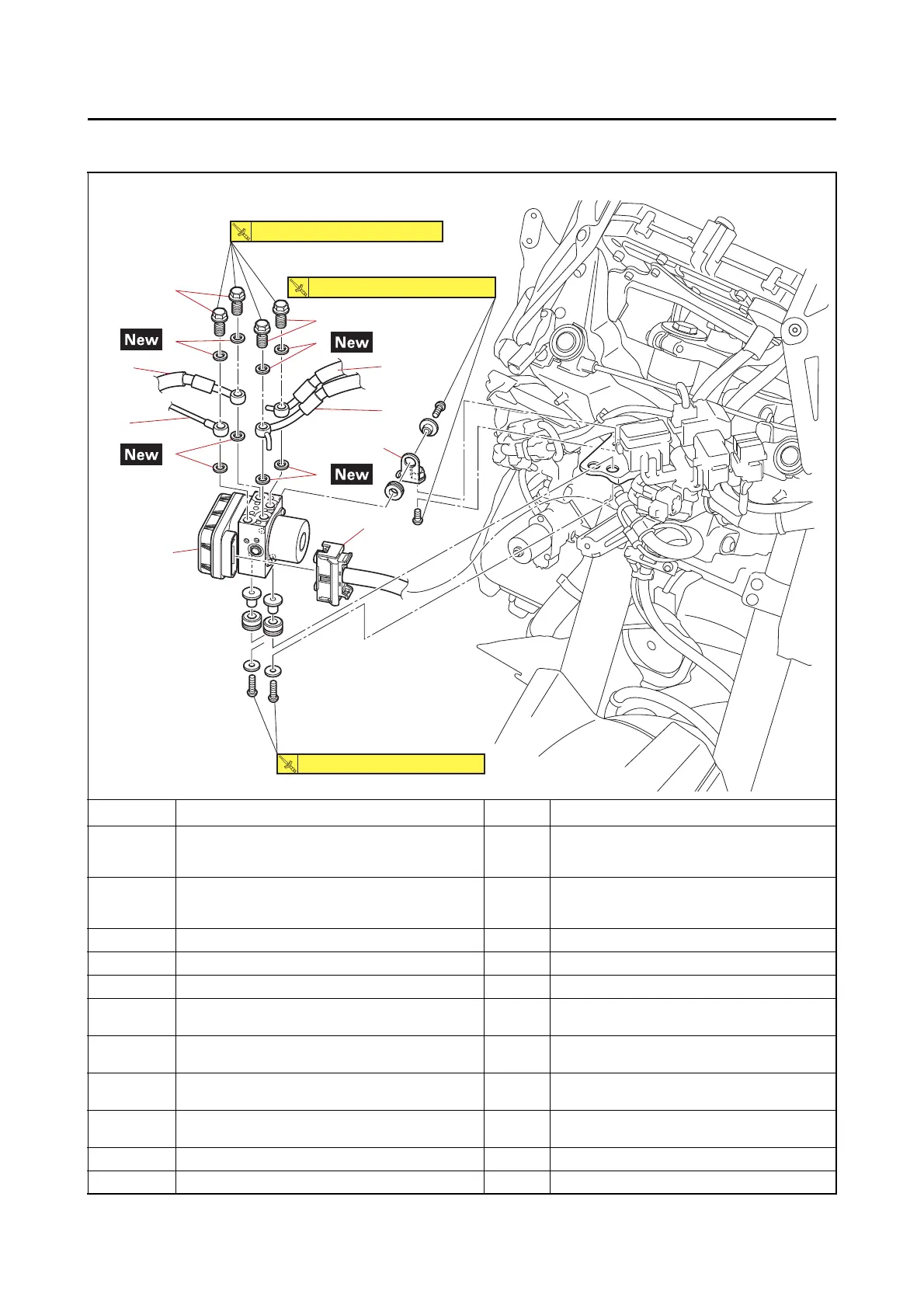

Removing the hydraulic unit assembly
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Bottom side cowling/Side
panel/Front cowling assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-16.
1 ABS ECU coupler 1 Disconnect.
2 Brake hose union bolt 4
3 Brake hose gasket 8
4
Rear brake hose (rear brake master cylinder to
hydraulic unit)
1 Disconnect.
5
Front brake hose (hydraulic unit to front brake
caliper)
1 Disconnect.
6
Front brake hose (front brake master cylinder to
hydraulic unit)
1 Disconnect.
7
Rear brake hose (hydraulic unit to rear brake
caliper)
1 Disconnect.
8 Hydraulic unit assembly 1
9 Hydraulic unit assembly bracket 1
1
3
2
3
3
2
3
4
6
5
7
8
9
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
