Yamaha TMAX 2020 Service Manual

4-9

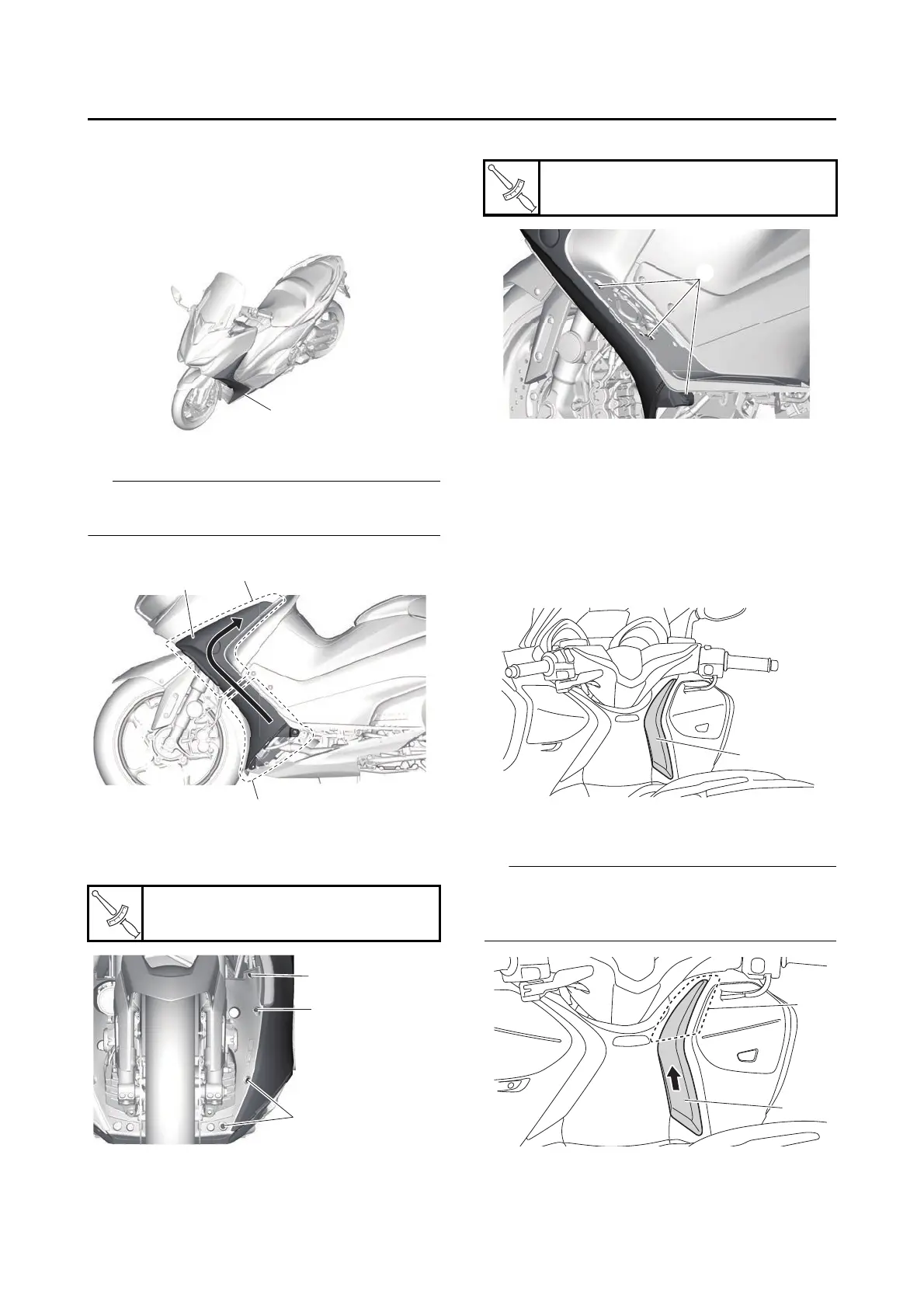

GENERAL CHASSIS (1)
EAS30822
INSTALLING THE SIDE PANEL
The following procedure applies to both of the
side panels.
1. Install:
• Side panel “1”
a. Install the side panel “1”.
TIP
Install the side panel by installing the lower part
“a” and upper part “b”.
b. Install the side panel bolt “2” and the quick
fasteners “3”.
c. Install the side panel screws “4”.
2. Install:
• Bottom side cowling
EAS30819
REMOVING THE INNER PANEL
The following procedure applies to both of the in-
ner panels.
1. Remove:
• Inner panel “1”
a. Remove the part “a” of the inner panel and
slide the inner panel “1” to the upper side.
TIP
When removing the part “a”of the inner panel,
use a commercially available cover removal tool
“b”.
Side panel bolt
1.5 N·m (0.15 kgf·m, 1.1 lb·ft)
1
a
b
1
T
R
.
.
3
3
2
Side panel screw
1.5 N·m (0.15 kgf·m, 1.1 lb·ft)
T
R
.
.
4
1
1
a

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
