Yamaha TMAX 2020 - ADJUSTING the WINDSHIELD HEIGHT (for XP560 E); Removing the Front Cover

4-7
GENERAL CHASSIS (1)
EAS31397

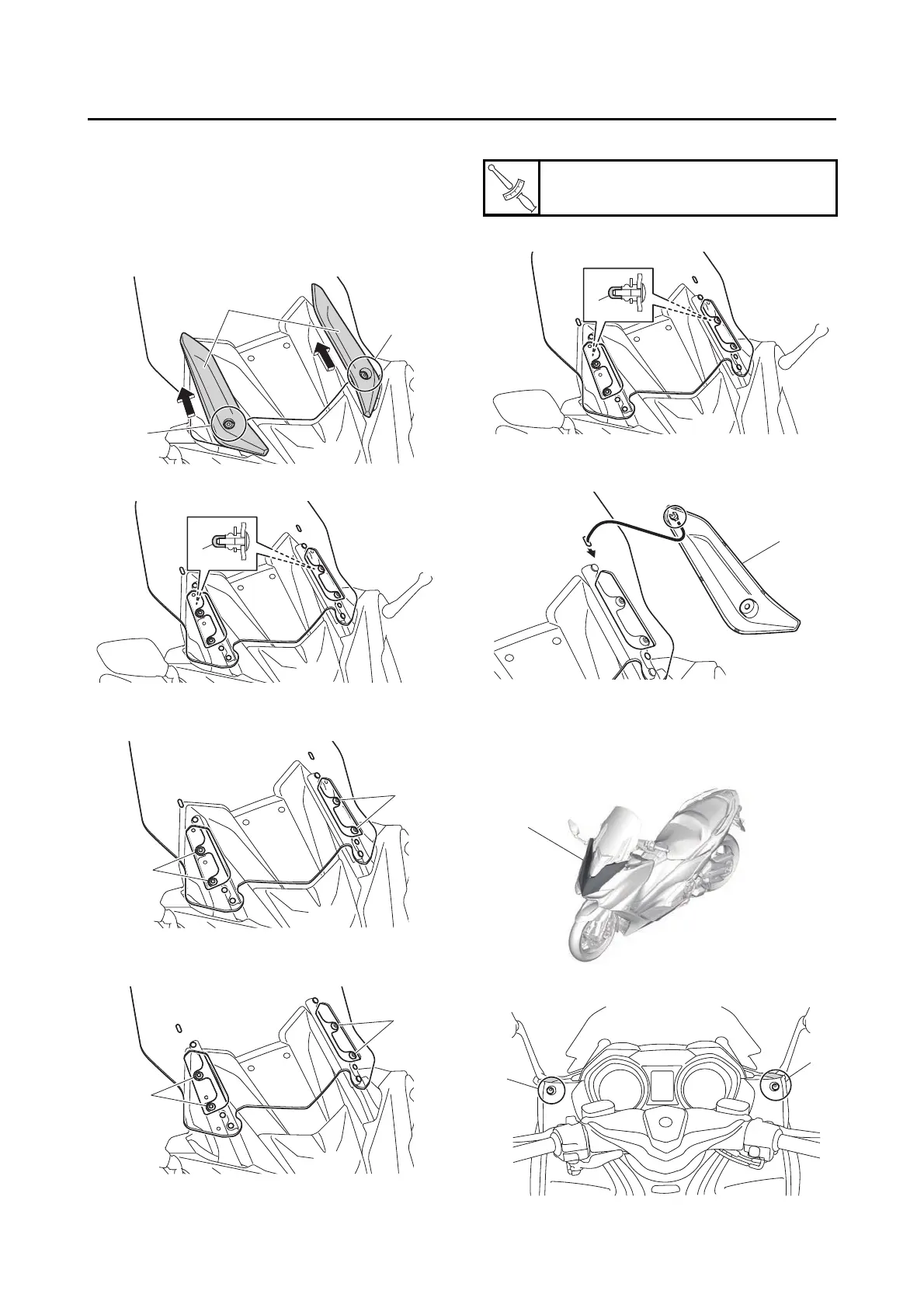

ADJUSTING THE WINDSHIELD HEIGHT (for
XP560E)
1. Adjust:
• Windshield height
a. Remove the windshield covers “1” by re-
moving the quick fasteners “2”.
b. Remove the caps “1”
c. Remove the windshield by removing the
screws “3”.
d. Install the windshield to the desired position
by installing the screws “3”.
e. Tighten the screws to the specified torque.
f. Install the caps “1”
g. Place the windshield covers “1”, and then
install the quick fasteners.
EAS31398
REMOVING THE FRONT COVER
1. Remove:
• Front cover “1”
a. Remove the front cover bolts “2”.
2
1
2
1
3
3
3
3
Windshield screw
10 N·m (1.0 kgf·m, 7.4 lb·ft)
T
R
.
.
1
1
1
2
2
