Yamaha TMAX 2020 Service Manual

7-4
FUEL TANK
EAS30699

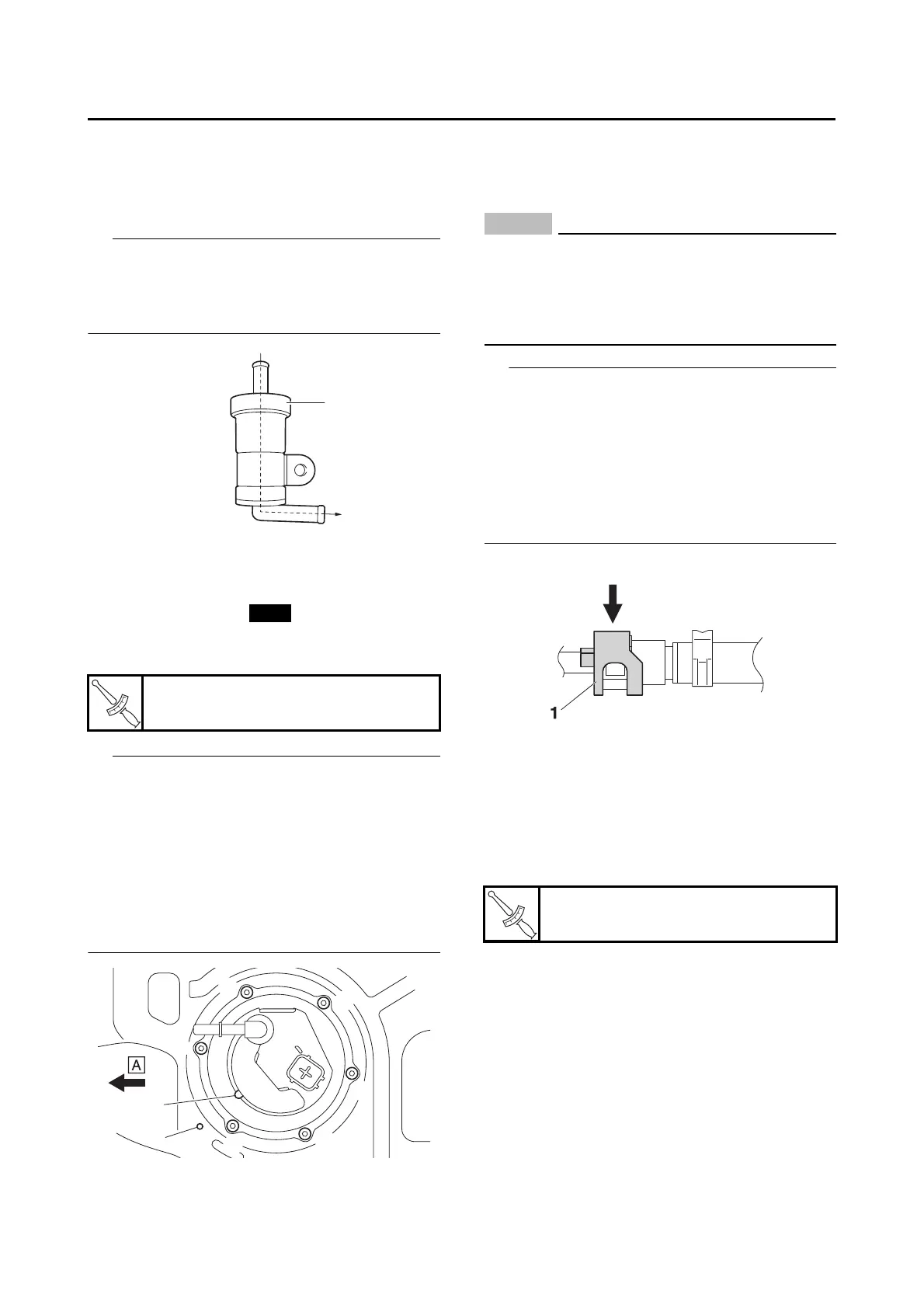

CHECKING THE ROLLOVER VALVE
1. Check:
• Rollover valve “1”
Damage/faulty  Replace.
TIP
• Check that air flows smoothly only in the direc-
tion of the arrow shown in the illustration.
• The rollover valve must be in an upright posi-
tion when checking the airflow.
EAS30456
INSTALLING THE FUEL PUMP
1. Install:
• Fuel pump gasket
• Fuel pump
• Fuel pump bracket
TIP
• Do not damage the installation surfaces of the
fuel tank when installing the fuel pump.
• Always use a new fuel pump gasket.
• Install the fuel pump as shown in the illustra-
tion.
• Align projection “a” on the fuel pump with mark
“b” of the fuel tank.
• Tighten the fuel pump bolts in the proper tight-
ening sequence as shown.
EAS30457
INSTALLING THE FUEL TANK
1. Connect:
• Fuel hose (fuel tank side)
NOTICE
ECA17500
When installing the fuel hose, make sure that
it is securely connected, and that the fuel
hose connector cover on the fuel hose is in
the correct position, otherwise the fuel hose
will not be properly installed.
TIP
• Install the fuel hose securely onto the fuel
pump until a distinct “click” is heard.
• To install the fuel hose onto the fuel pump,
slide the fuel hose connector cover “1” on the
end of the hose in the direction of the arrow
shown.
• It is prohibited to wear the cotton work gloves
or equivalent coverings.
2. Connect:
• Fuel pump coupler
• Fuel tank breather hose
• Fuel tank overflow hose
3. Install:
• Fuel tank
Fuel pump bolt
4.0 N·m (0.40 kgf·m, 3.0 lb·ft)
A. Forward
1
New
T
R
.
.
b
a
1
3
5
2
4
6
Fuel tank bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
T
R
.
.

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
