Yamaha TMAX 2020 Service Manual

4-63
REAR BRAKE
NOTICE
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
4. Bleed:
• Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-16.
5. Check:
• Brake fluid level
Below the minimum level mark  Add the
specified brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” on page 3-14.
6. Check:
• Brake lever operation
Soft or spongy feeling  Bleed the brake sys-
tem.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-16.
EAS31417

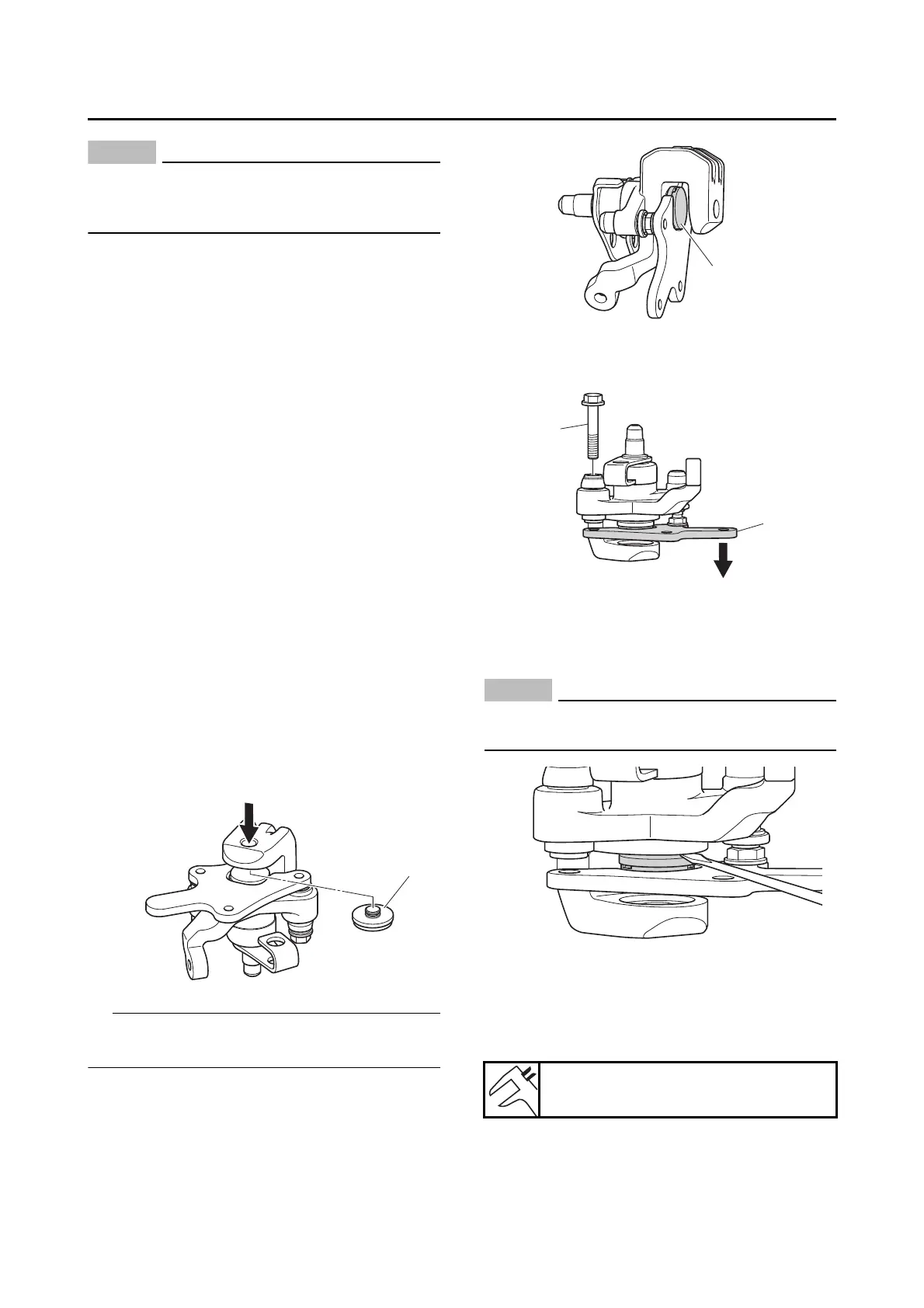

REPLACING THE REAR BRAKE LOCK PADS
1. Remove:
• Rear brake lock cable adjusting nut
•Pin
• Rear brake lock spring
2. Remove:
• Rear brake lock caliper bolt
• Rear brake lock caliper
3. Remove:
• Rear brake lock pad (left side) “1”
TIP
Push on the back of the pad using a rod with a
round end.
4. Remove:
• Rear brake lock pad (right side) “1”
a. Remove the bolt “2”, and then slide the rear
brake lock caliper bracket “3”.
b. Insert a flathead screwdriver in between the
piston adjusting bolt and rear brake lock
pad and then remove the rear brake lock
pad.
NOTICE
ECA22110
Avoid scratching the dust seal on the side of
the piston adjusting bolt carefully.
5. Measure:
• Rear brake lock pads wear limit “a”
Out of specification  Replace the rear brake
lock pads.
1
Brake pad lining thickness limit
0.8 mm (0.03 in)
1
3
2

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
