Yamaha TMAX 2020 Service Manual

3-23
PERIODIC MAINTENANCE

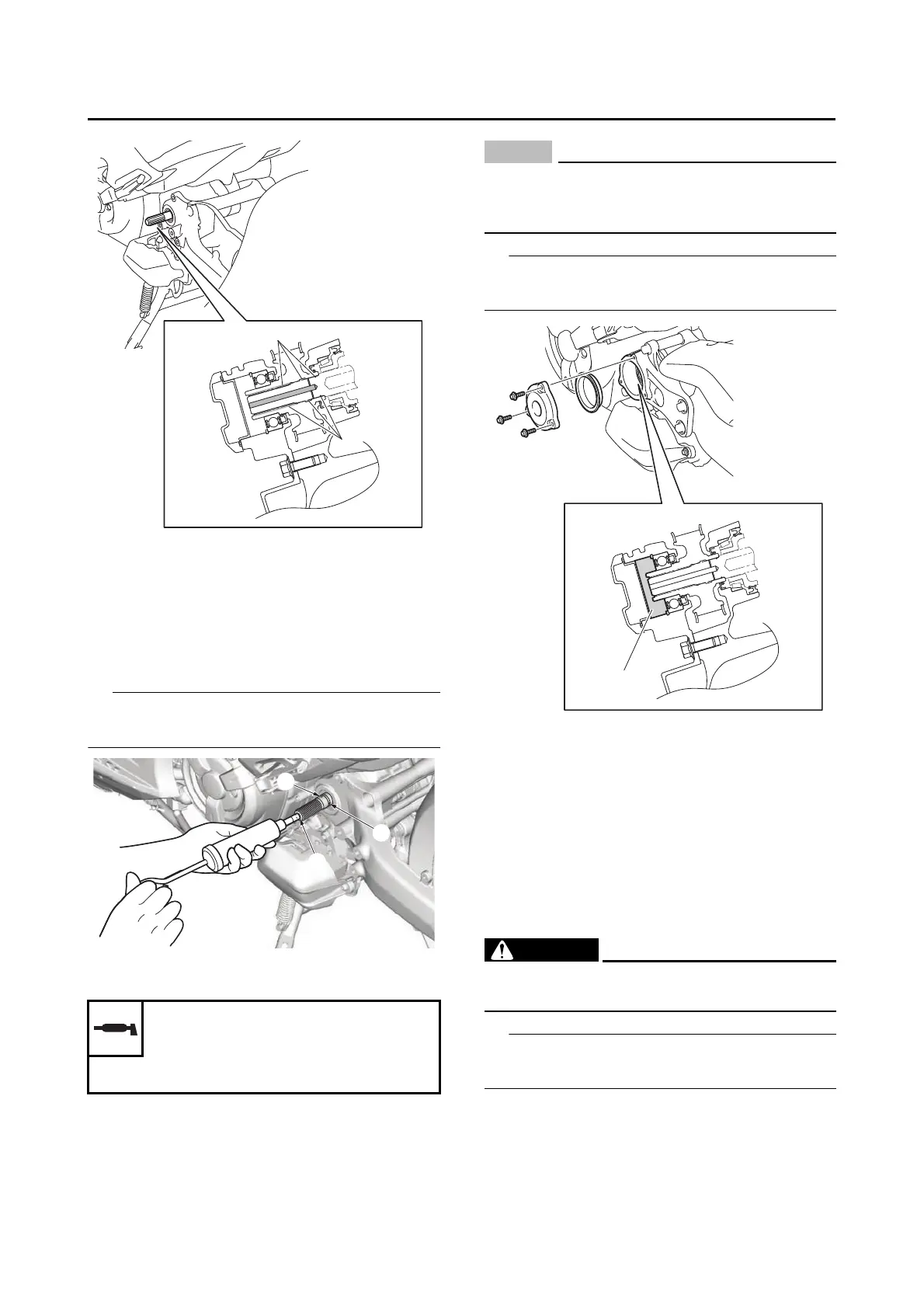

6. Use a suitable grease gun (commercially
available) to inject YAMAHA GREASE “J”
(Shell Alvania EP Grease R0®) into the hole
“a” in the tip of the drive axle. Continue inject-
ing until the YAMAHA GREASE “J” (Shell Al-
vania EP Grease R0®) comes out of the side
holes “b” on the drive axle.
TIP
Place a rag under the drive axle so the grease
does not get on other parts.
7. Lubricate:
• Drive pulley assembly inner part “a”
NOTICE
ECA27020
If you put in too much grease, the grease will
come out of the holder, which could cause
grease to get on the drive belt.
TIP
Use a scale to weigh the grease, and inject 38 g
into the drive pulley assembly inner part.
8. Install:
• All removed part
9. Adjust:
• Drive belt tension
Refer to “DRIVE BELT TENSION” on page 3-
21.
EAS30645
CHECKING AND ADJUSTING THE
STEERING HEAD
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
TIP
Place the vehicle on the centerstand so that the
front wheel is elevated.
Recommended lubricant
YAMAHA GREASE “J” (Shell
Alvania EP Grease R0®)
38g
a
a
a
b
b
a

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
