4-80
HANDLEBAR
10.Adjust:
• Throttle grip free play
Refer to “CHECKING THE THROTTLE
GRIP” on page 3-33.
11.Adjust:
• Rear brake lock cable length
Refer to “ADJUSTING THE REAR BRAKE
LOCK CABLE” on page 3-17.
EAS32442

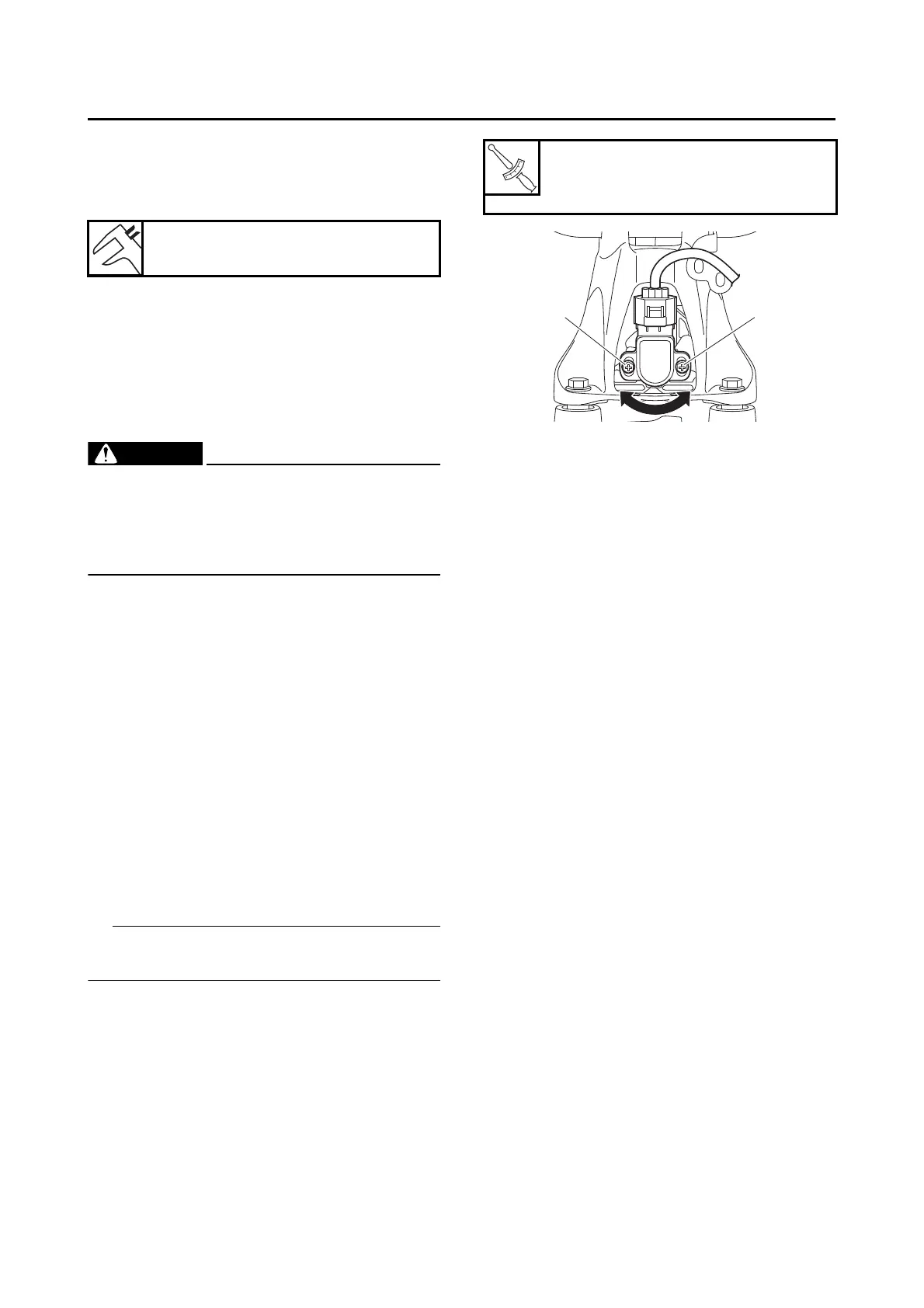

ADJUSTING THE ACCELERATOR POSITION
SENSOR
EWA15960
• Handle the accelerator position sensor with
special care.
• Never subject the accelerator position sen-
sor to strong shocks. If the accelerator po-
sition sensor is dropped, replace it.
1. Check:
• Accelerator position sensor
Refer to “CHECKING THE ACCELERATOR
POSITION SENSOR” on page 8-108.
2. Adjust:
• Accelerator position sensor angle
a. Temporary tighten the accelerator position
sensor screws.
b. Check that the throttle valves are fully
closed.
c. Connect the accelerator position sensor to
the wire harness.
d. Connect the throttle cables to the throttle
cable pulley.
e. Remove the protective cap, and then con-
nect the YDT to coupler.
For information about using the YDT, refer to the
operation manual that is included with the tool.
f. Diagnostic code No. “14” is selected.
g. Turn the throttle grip to the fully closed po-
sition.
h. Adjust the position of the accelerator posi-
tion sensor angle so that 11–20 can appear
in the YDT screen.
i. After adjusting the accelerator position sen-
sor angle, tighten the accelerator position
sensor screws “1”.
j. Turn the throttle grip to the fully open posi-
tion.
k. Check the YDT screen value. If the YDT
screen value is not 95–106, adjust the ac-
celerator position sensor angle.
l. Select the diagnostic code No. “15”.
m. Turn the throttle grip to the fully closed po-
sition.
n. Check the YDT screen value. If the YDT
screen value is not 9–23, adjust the accel-
erator position sensor angle.
o. Turn the throttle grip to the fully open posi-
tion.
p. Check the YDT screen value. If the YDT
screen value is not 93–109, adjust the ac-
celerator position sensor angle.
q. Repeat steps (f) to (p) until the YDT screen
values are within the specified ranges.
r. If the YDT screen values are not within the
specified ranges after repeating steps (f) to
(p) several times, replace the accelerator
position sensor.
Throttle grip free play
1.0–3.0 mm (0.04–0.12 in)
Accelerator position sensor
screw
3.5 N·m (0.35 kgf·m, 2.6 lb·ft)
