ELECTRICAL COMPONENTS
EAS20089
ELECTRICAL COMPONENTS
18
1
20
7
4
3
5
6
8
9
10
19
11
12
17
16
14
13
15
2

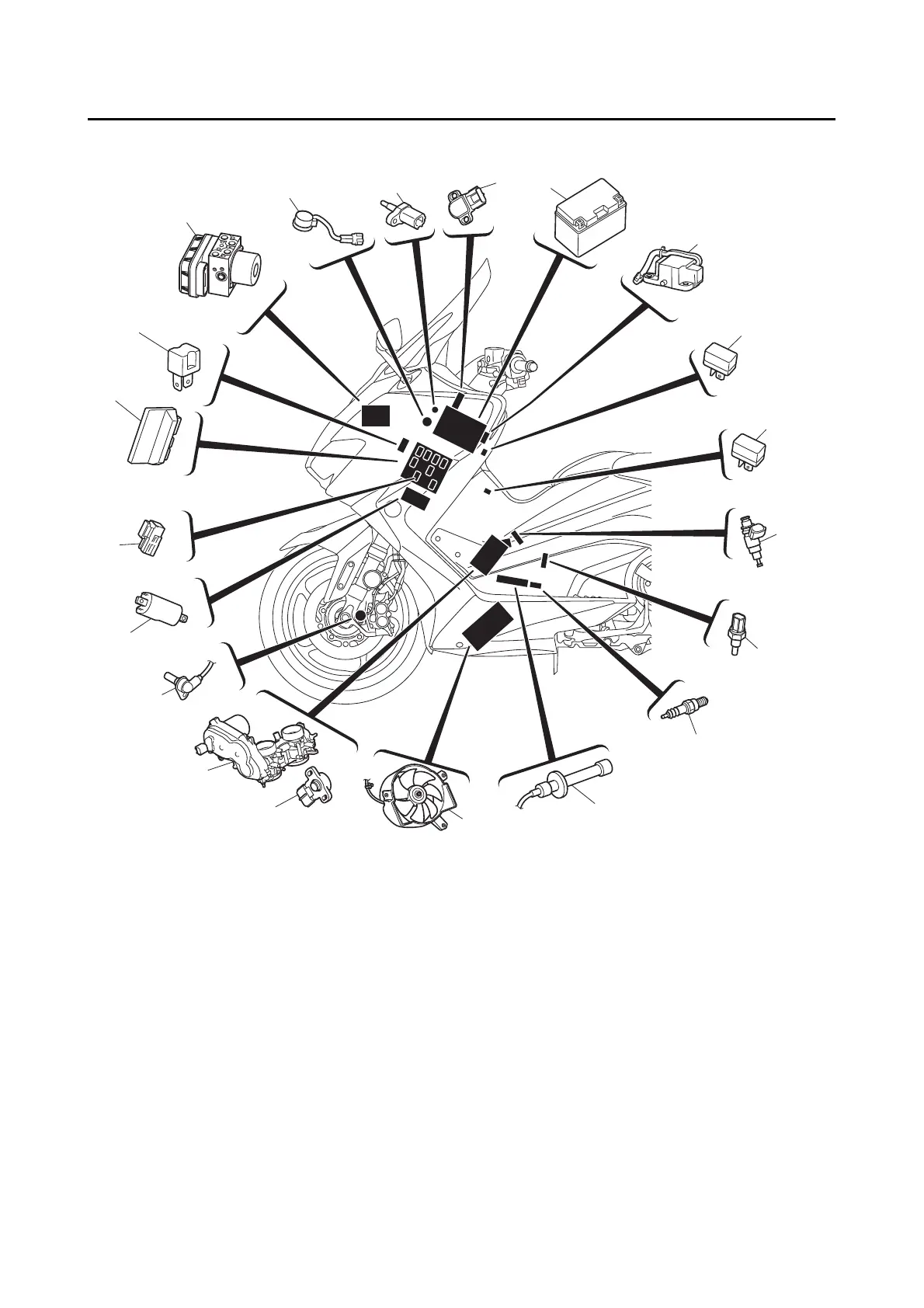

1. ECU (Engine Control Unit)
2. Diode 2
3. Hydraulic unit assembly
4. Buzzer
5. Intake air temperature sensor
6. Accelerator position sensor
7. Battery
8. Steering lock unit
9. Diode 3
10. Diode 1
11. Injector
12. Coolant temperature sensor
13. Spark plug
14. Spark plug cap
15. Radiator fan motor
16. Throttle position sensor
17. Throttle servo motor
18. Front wheel sensor
19. Ignition coil
20. Smart key system relay (unlock)/Smart key
system relay (lock)/Headlight relay (dim-
mer)/Brake light relay (for XP560D)/Fuel
injection system relay/Steering lock relay/
Starting circuit cut-off relay/Ignition system
relay
