Yamaha TMAX 2020 Service Manual

4-95
BELT DRIVE
EAS30236

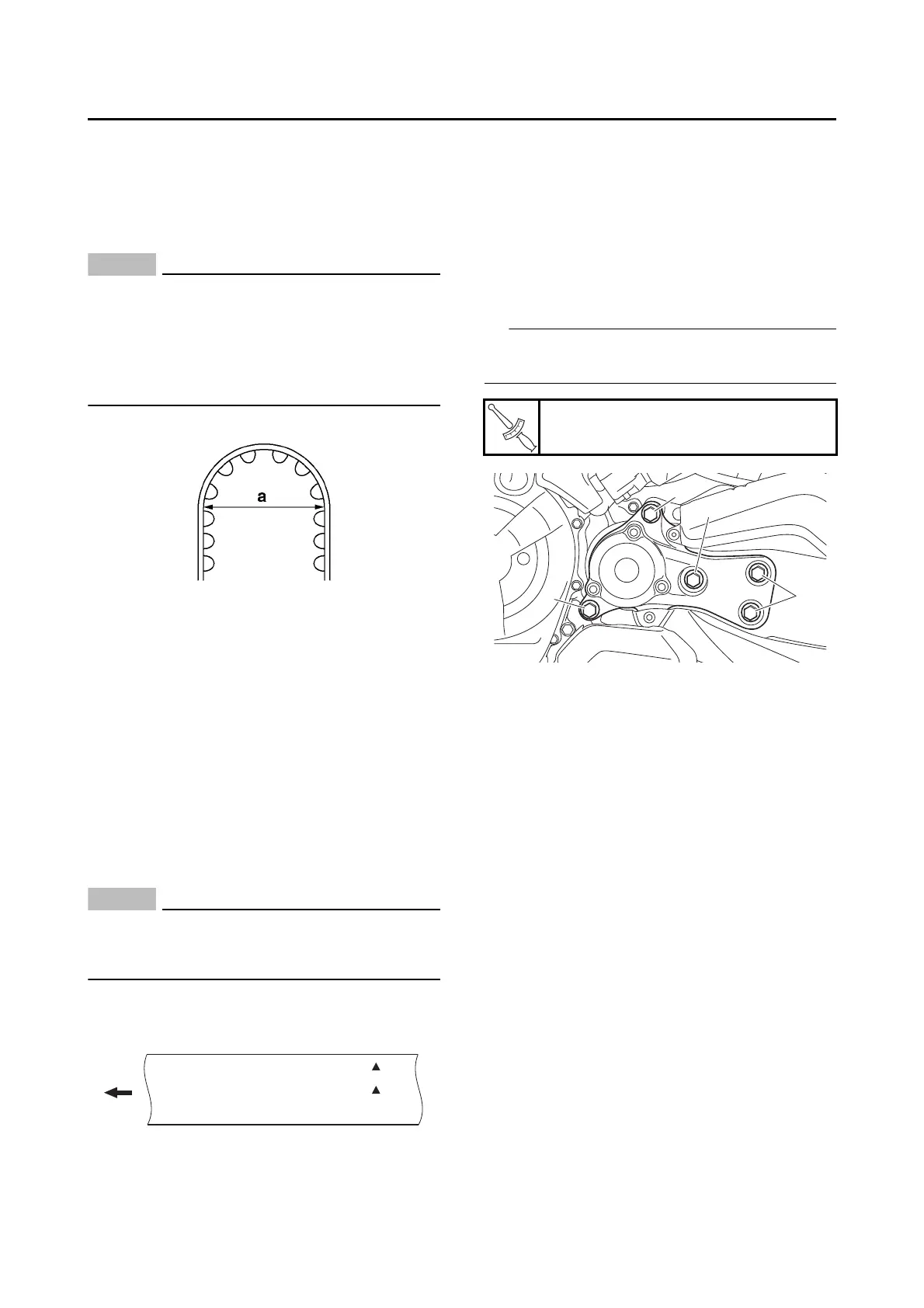

CHECKING THE DRIVE BELT
1. Check:
• Drive belt
Refer to “CHECKING THE DRIVE BELT” on
page 3-20.
NOTICE
ECA26680
• To protect the drive belt from damage, han-
dle it with care.
• The drive belt can not be bent smaller than
90 mm (3.54 in) “a”.
• The removed drive belt can not be twisted
inside out.
2. Check:
• Drive pulley
• Rear wheel pulley
Bent teeth  Replace the drive belt and pul-
leys as a set.
3. Check:
• Holder
Cracks/damage  Replace.
EAS31586
INSTALLING THE DRIVE BELT AND DRIVE
PULLEY
1. Install:
• Drive belt
NOTICE
ECA22720
Align the mark of the drive belt with the prog-
ress direction “A”.
Do not twist the drive belt when installing it.
2. Lubricate:
• Drive pulley assembly inner part
Refer to “LUBRICATING THE DRIVE PUL-
LEY AND DRIVE AXLE” on page 3-22.
3. Install:
• Drive pulley assembly
• Drive pulley assembly bolt
4. Tighten:
• Drive pulley assembly bolt
TIP
Tighten the drive pulley assembly bolts in the fol-
lowing order, bolt “1”, bolts “2”, and bolts “3”.
5. Adjust:
• Drive belt tension
Refer to “DRIVE BELT TENSION” on page 3-
21.
BC3-46241-01 DO NOT BEND
BC3-46241-01 DO NOT BEND
A
Drive pulley assembly bolt
48 N·m (4.8 kgf·m, 35 lb·ft)
T
R
.
.
2
1
3
2

Yamaha TMAX 2020 Specifications

General

Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Front Tyre	120/70R15M/C 56H
Rear Tyre	160/60R15M/C 67H
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	218 kg
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Suspension	Telescopic fork
Overall Height	1, 420mm
